>> E << Rack Bushing Installation

CAUTION: Do not allow oil seal retainer spring to slip out.

Wrap the rack end with vinyl tape, apply a coating of GENUINE MITSUBISHI POWER STEERING FLUID, and then install the rack bushing and rack stopper.

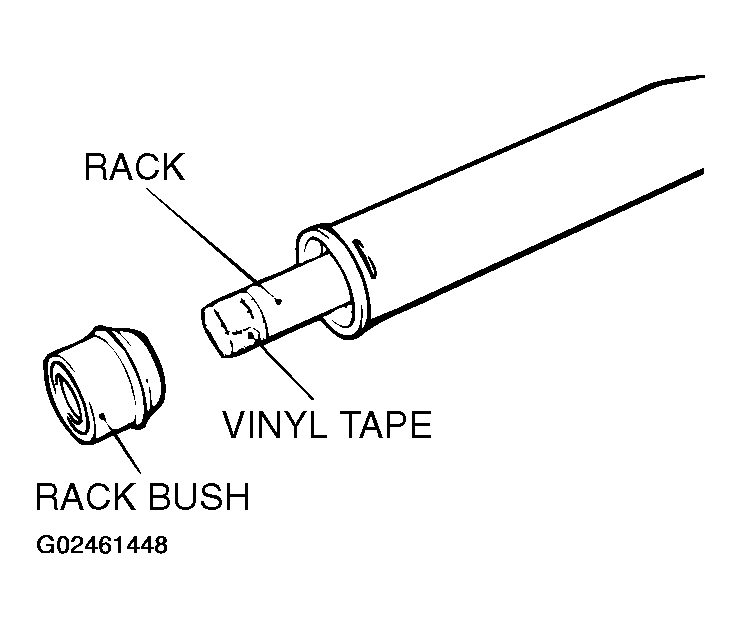

Fig 1: Wrapping Rack End With Vinyl Tape
G02461448Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
