>> J << End Plug Installation

  1. Apply 3M™ AAD Part number 8672, 8679, 8678, 8661, 8663 or equivalent to the threaded part of the end plug.

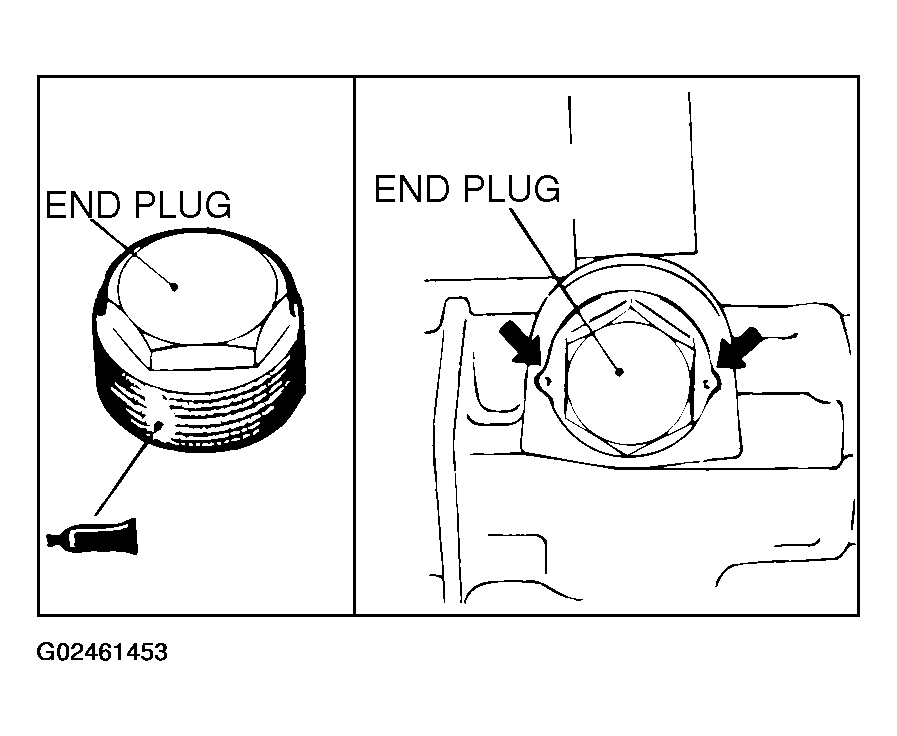

    Fig 1: Installing End Plug
    G02461453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Secure the threaded portion of the end plug at two places by using a punch.
