>> M << Tab Washer/Tie Rod Installation

After installing the tie rod to the rack, fold tab washer end (two locations) to tie rod notch.

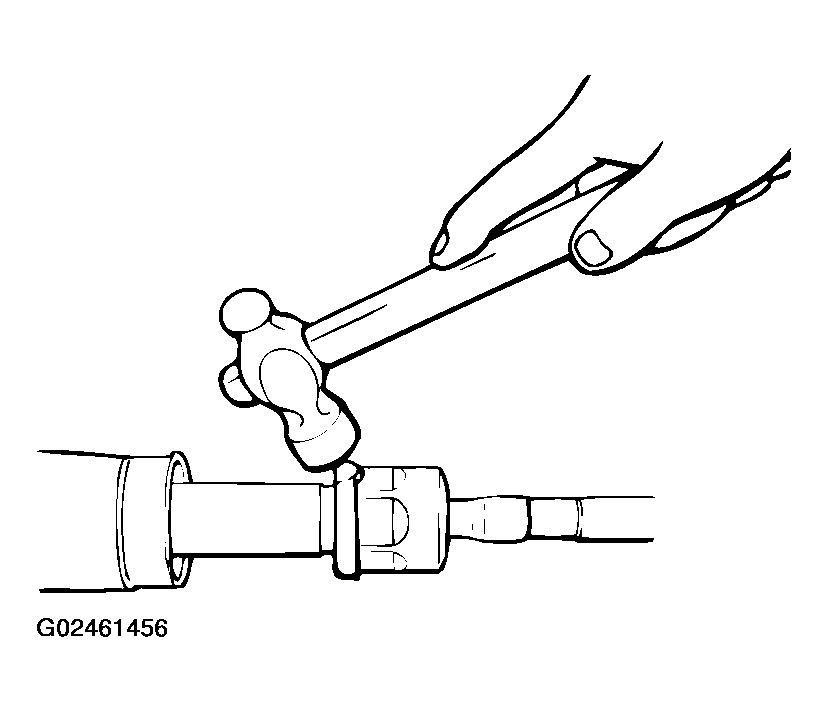

Fig 1: Installing Tab Washer/Tie Rod
G02461456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
