>> E << Spring Pin Installation

  1. Align the pin holes in the shift rail and shift fork.

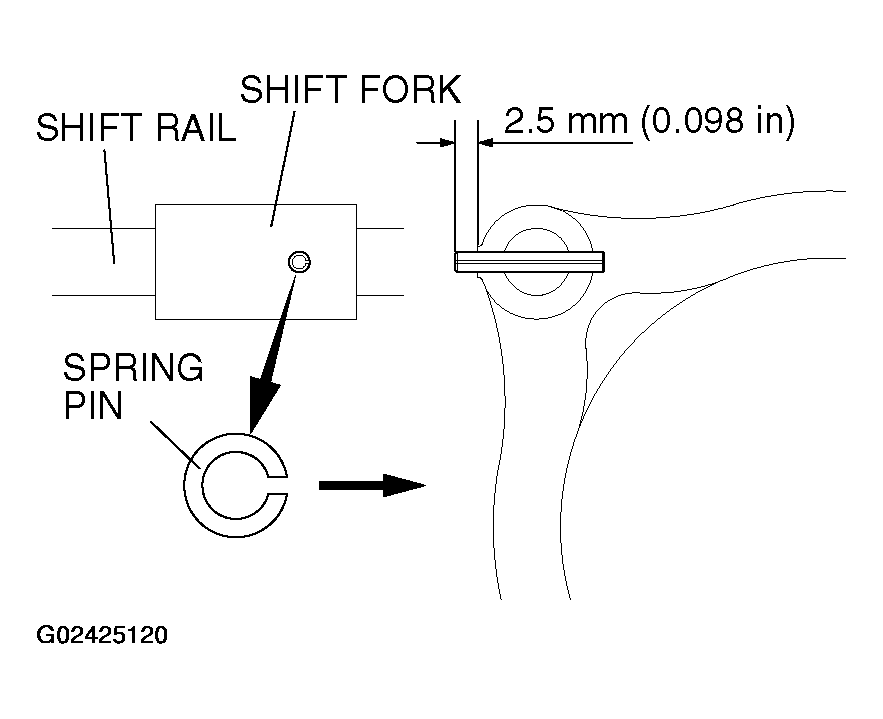

    Fig 1: Aligning Pin Holes In Shift Rail And Shift Fork
    G02425120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Insert the new spring pin. Push it in so that the slit and center axis of the rail are aligned.
