<< C >>Oil Seal/Pinion And Valve Assembly Removal

Using a plastic hammer, gently tap the pinion to remove it.

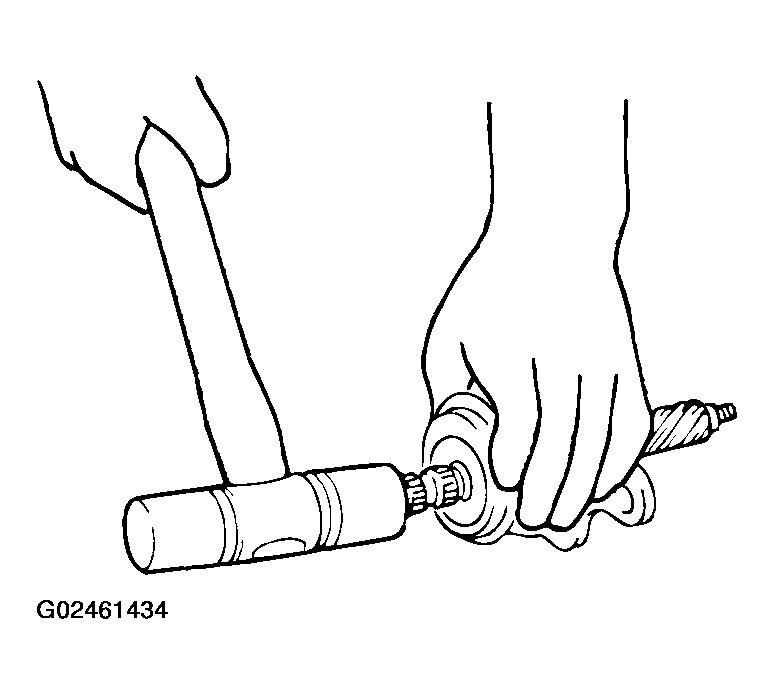

Fig 1: Taping Pinion
G02461434Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
