Turn-Signal And Lighting Switch Check

Fig 1: Identifying Lighting Switch Connector Terminals
G02445852Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

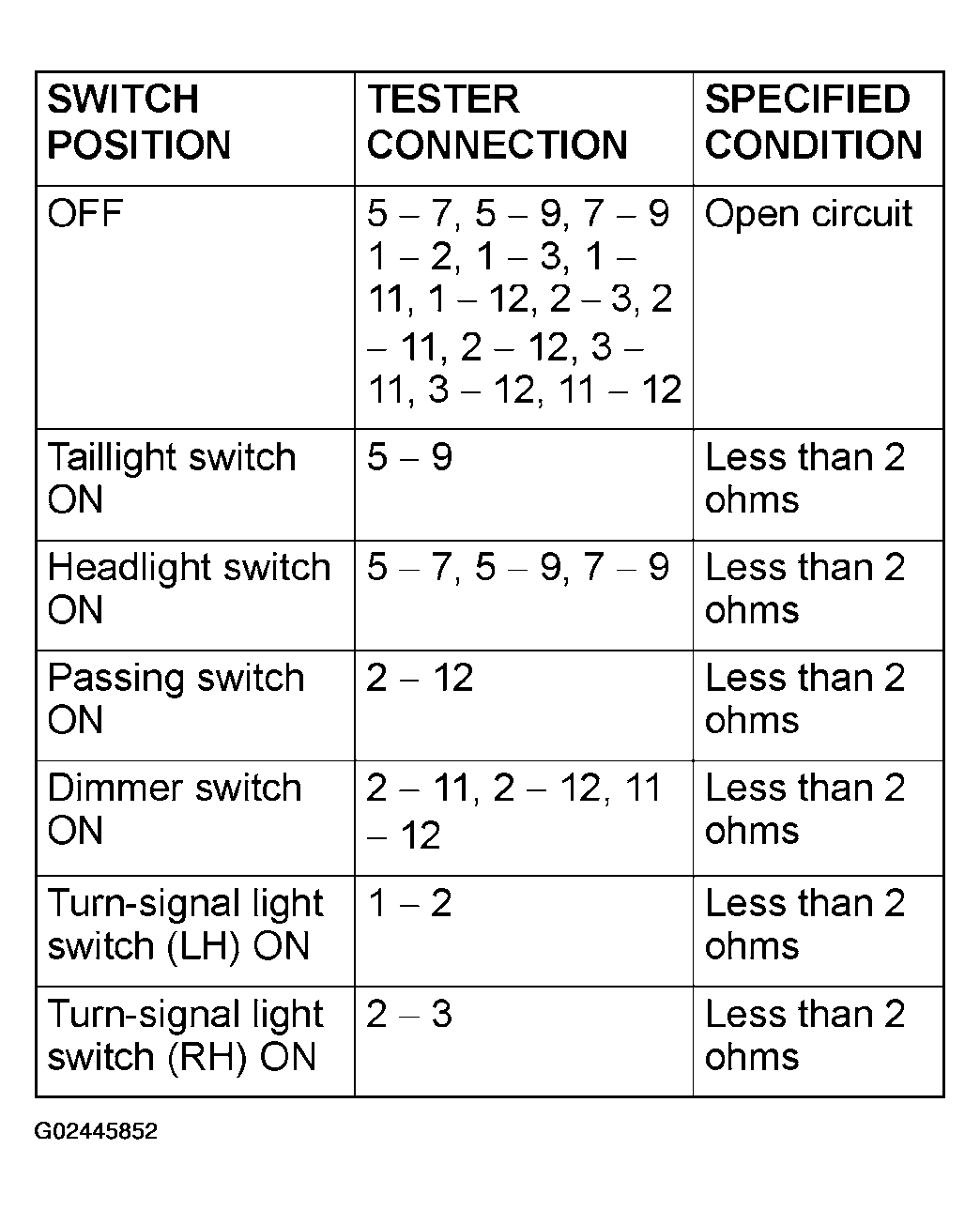

Fig 2: Tester Connection Specifications Chart
G02445853Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
