< Combination Meter >
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
< Combination Meter >

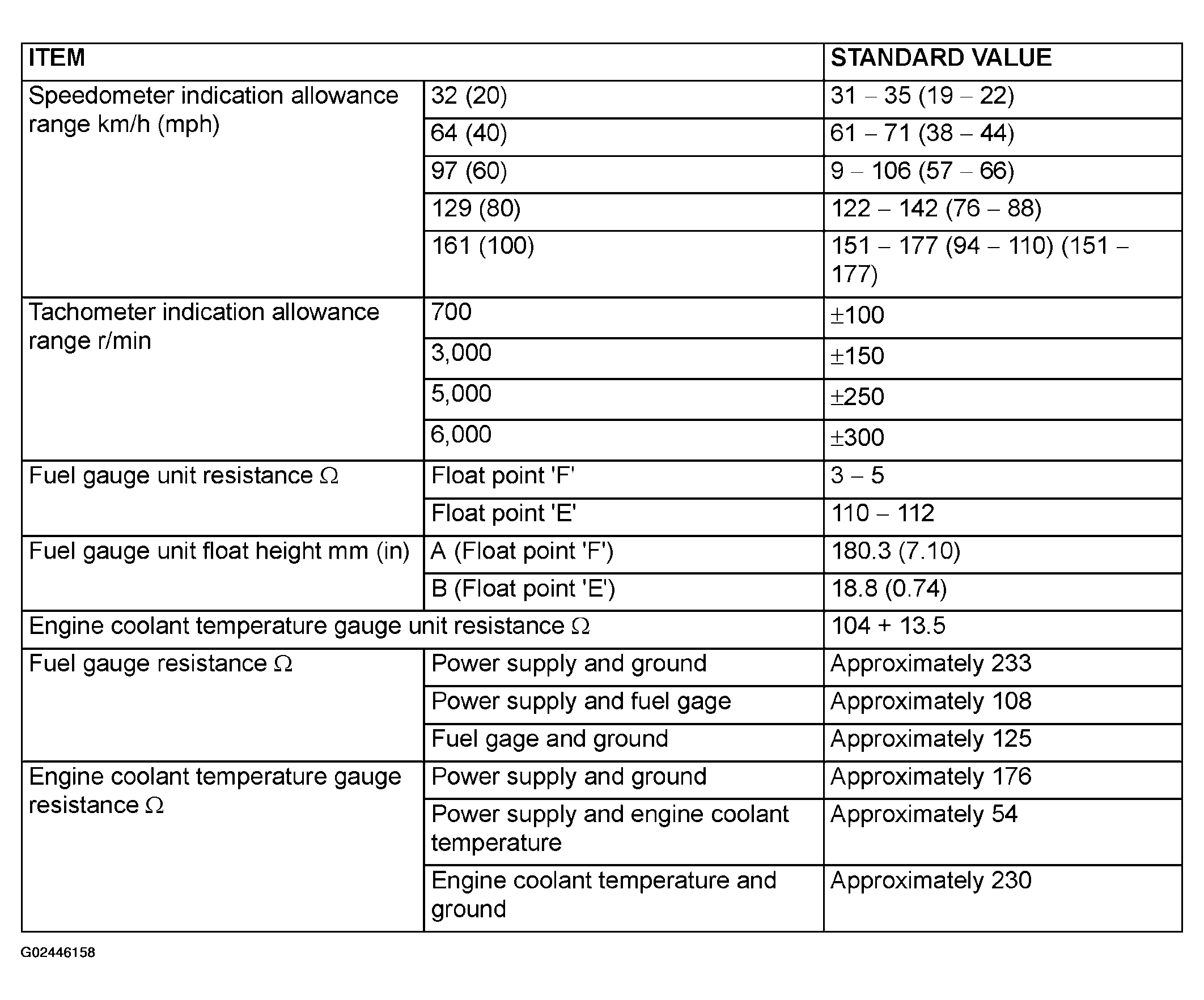

Fig 1: Identifying Combination Meter Item Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
