Removal And Installation: Notes

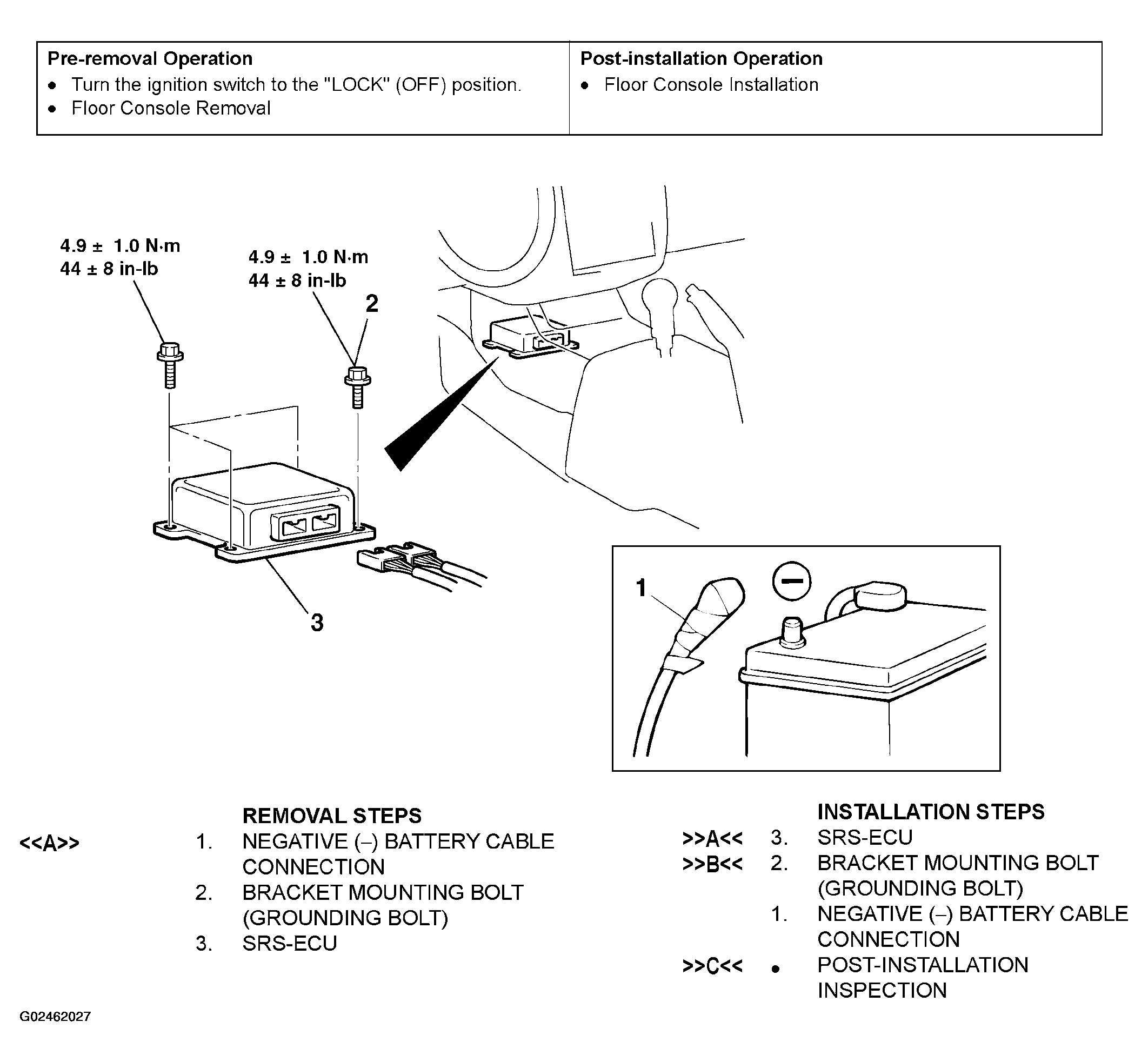

Fig 1: Removing/Installing Of SRS Control Unit (SRS-ECU)
G02462027Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
