Special Tools

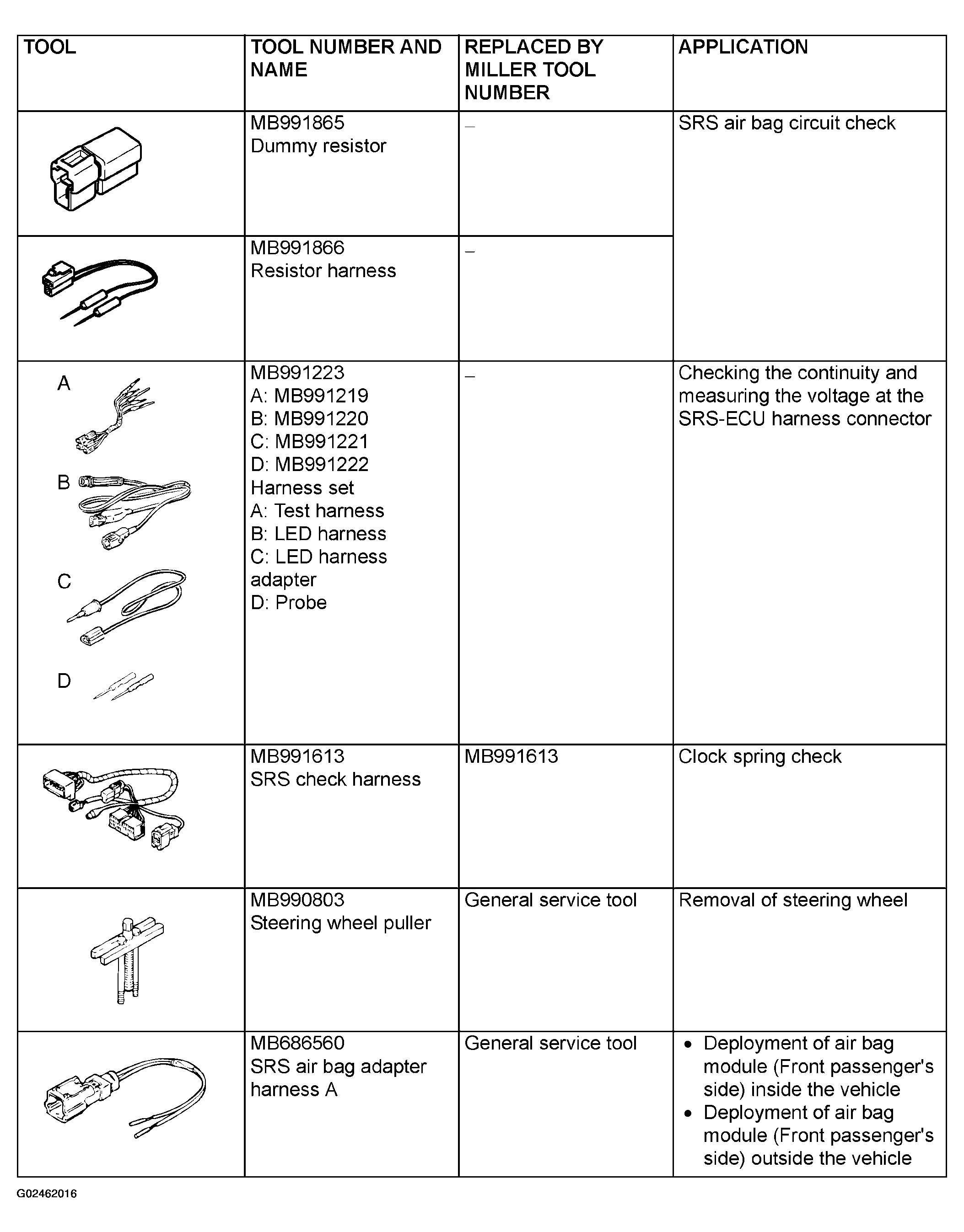

Fig 1: Special Tools Chart (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

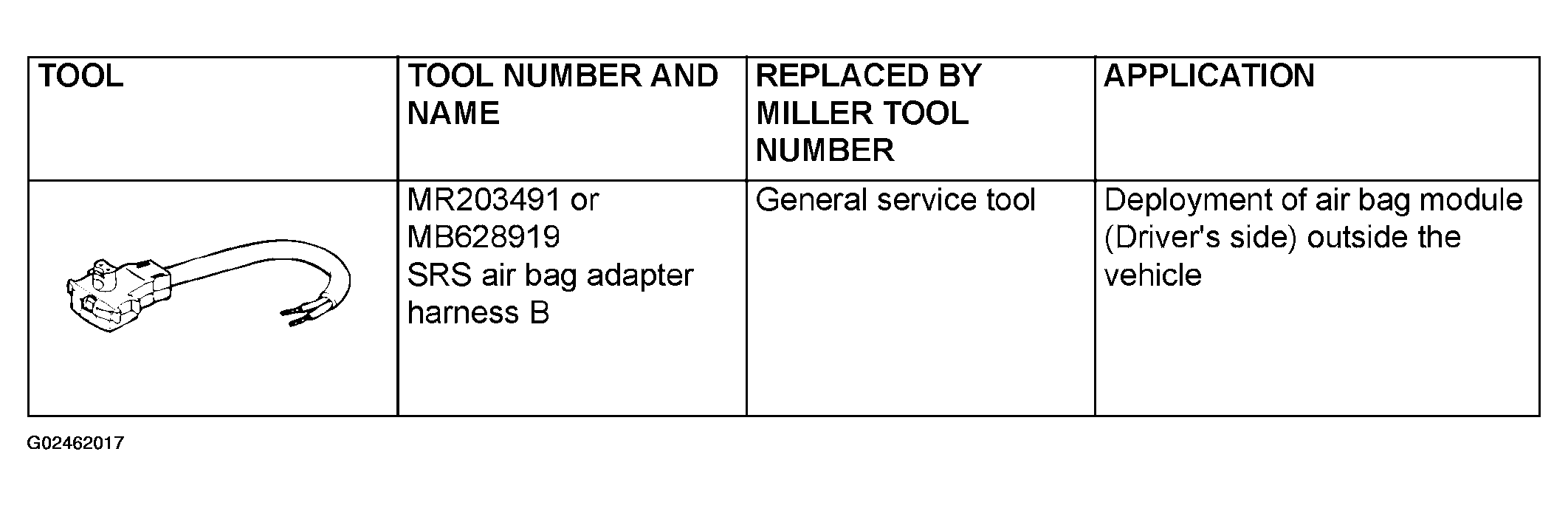

Fig 2: Special Tools Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

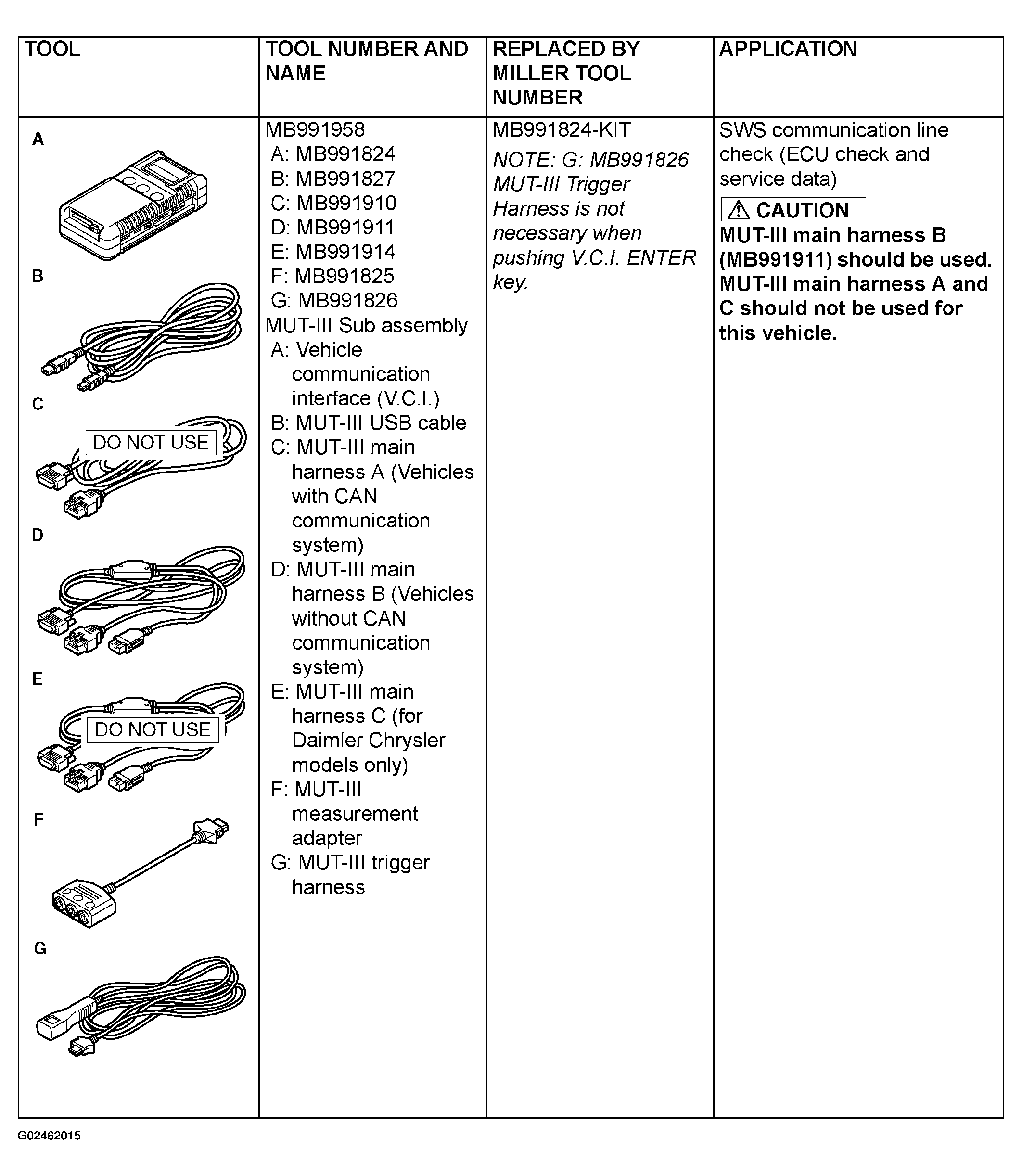

Fig 3: Special Tools Chart (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
