>>B<< Needle Roller Bearing/Ball Bearing Installation

  1. Apply GENUINE MITSUBISHI POWER STEERING FLUID to housing, bearing and oil seal press fitting surface.
    CAUTION: Press-fit straight. The valve housing is aluminum, and may become deformed if press-fit on an angle.
  2. Press fit needle roller bearing with special tools MB990938 and MB991202.

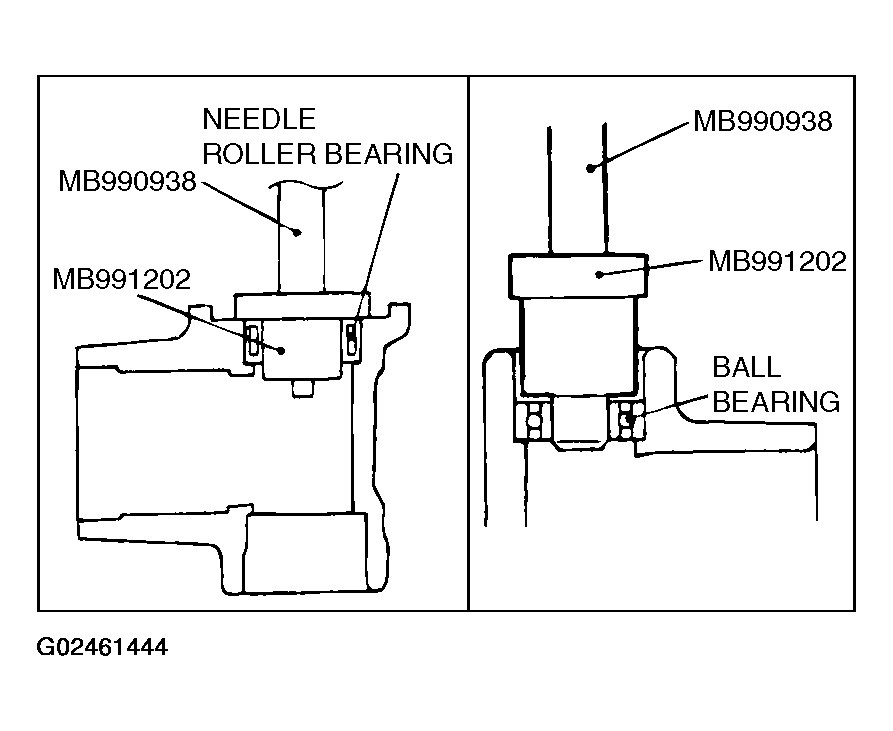

    Fig 1: Pressing Fit Needle Roller Bearing With Special Tools
    G02461444Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
