<< G >>Rack Removal

Pull out the rack slowly. Take out the rack stopper and the rack bushing at the same time.

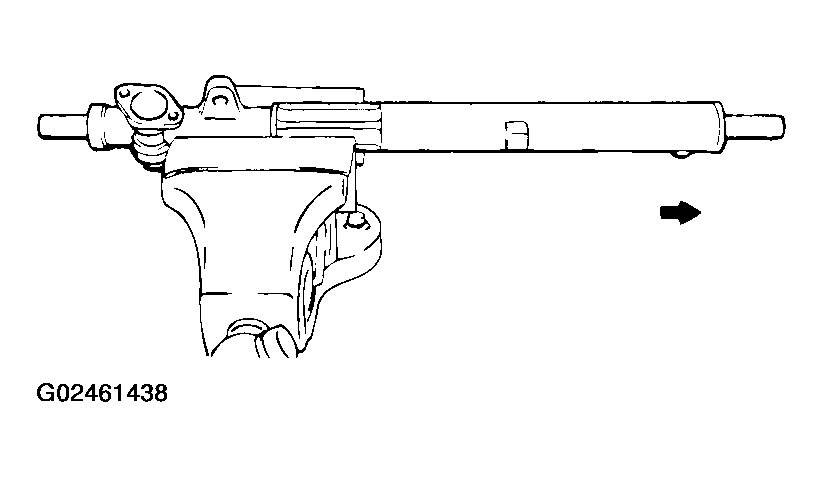

Fig 1: Removing Rack
G02461438Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
