Symptom Chart

SYMPTOM CHART

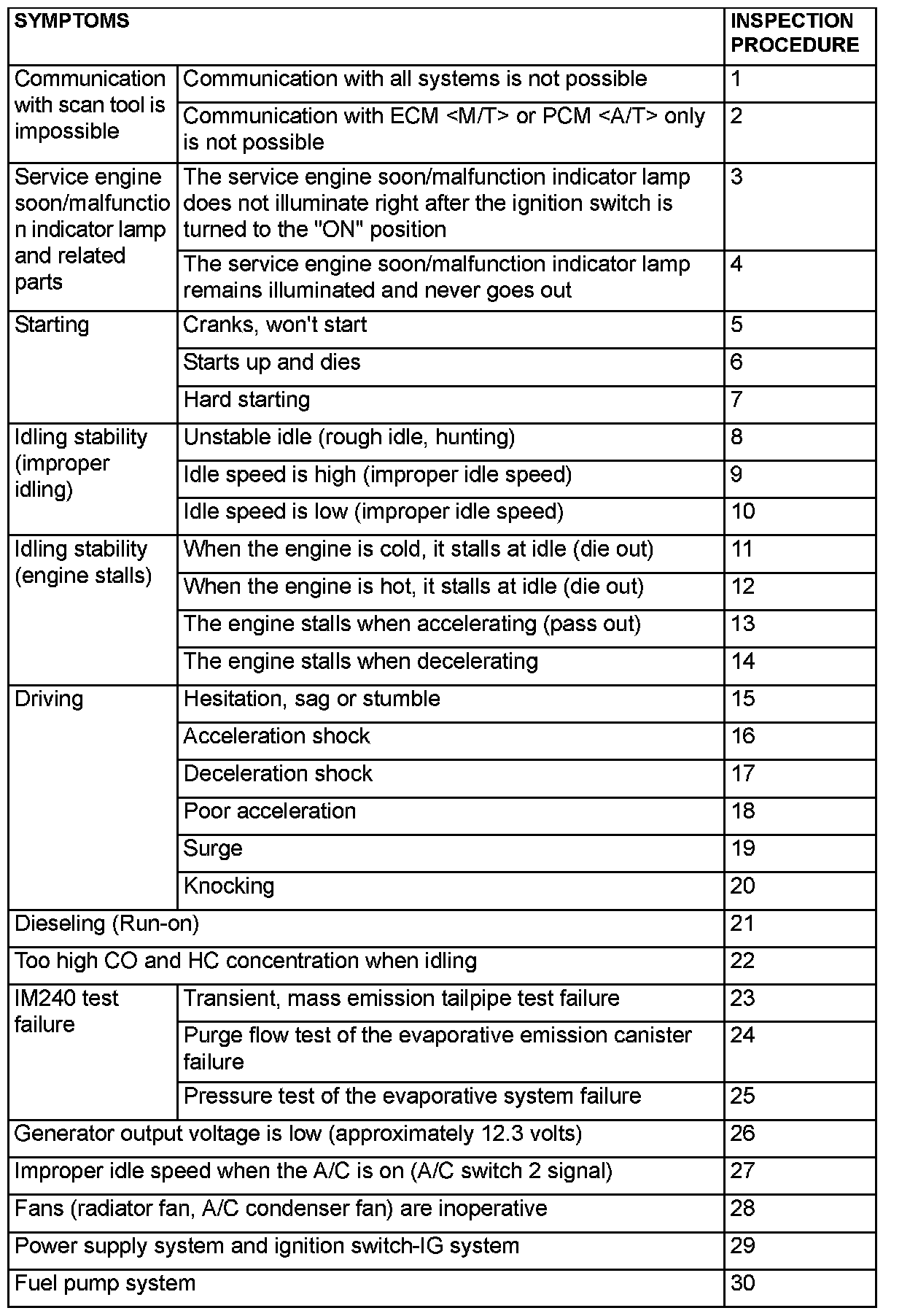

Symptom Chart Part 1:

Symptom Chart Part 2:

NOTE: Check that the engine control module (ECM) or powertrain control module (PCM) ground circuit is normal before checking for the cause of the problem.

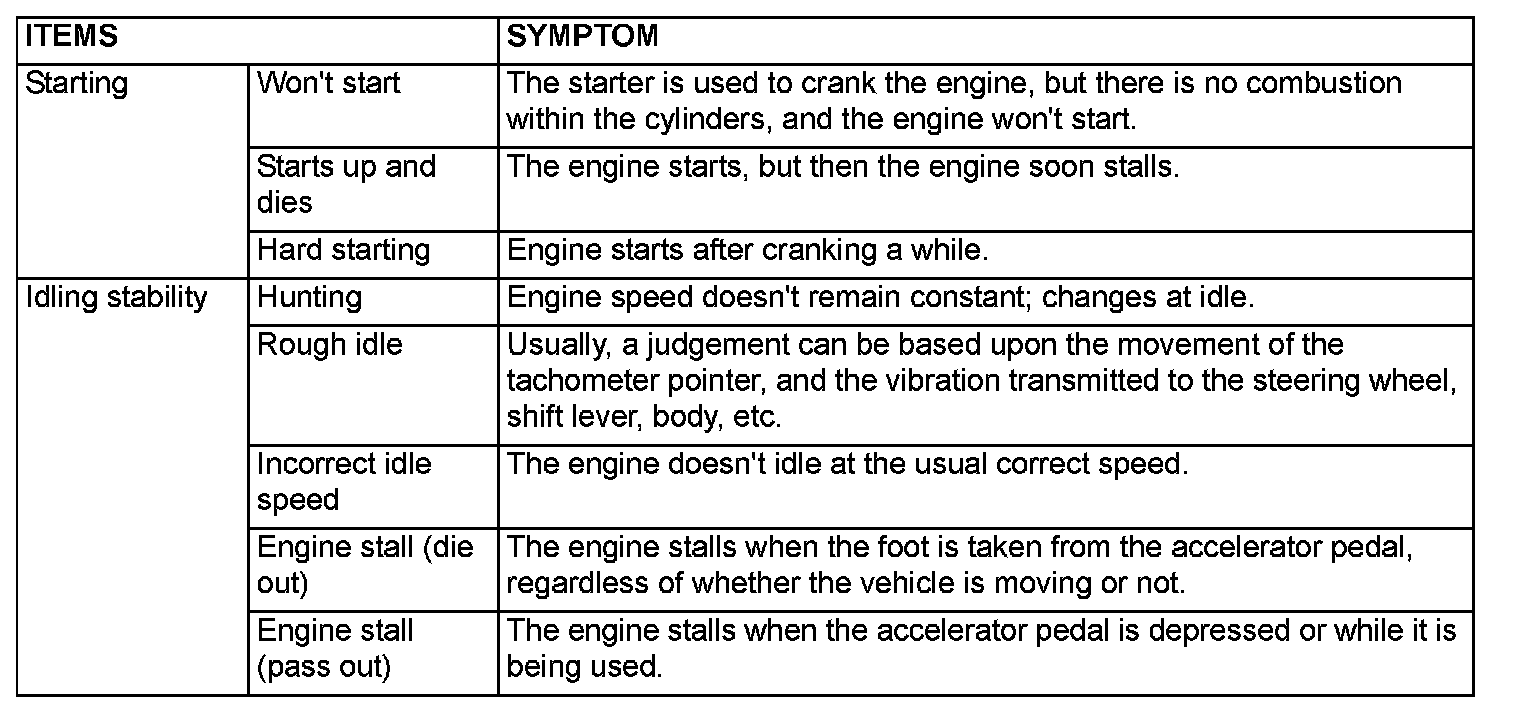

Problem Symptoms Table (For Your Information) Part 1:

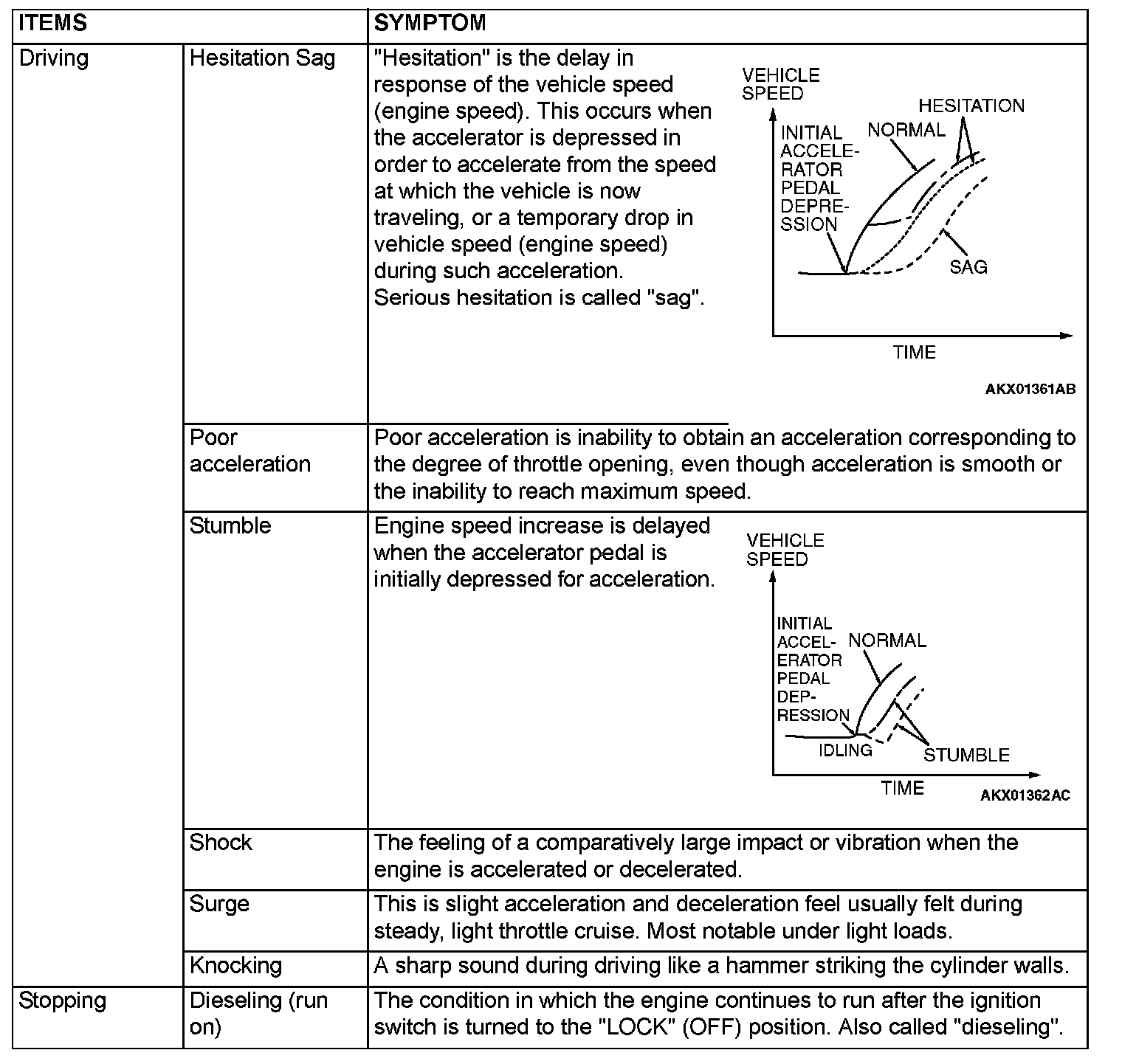

Problem Symptoms Table (For Your Information) Part 2:

PROBLEM SYMPTOMS TABLE (FOR YOUR INFORMATION)
