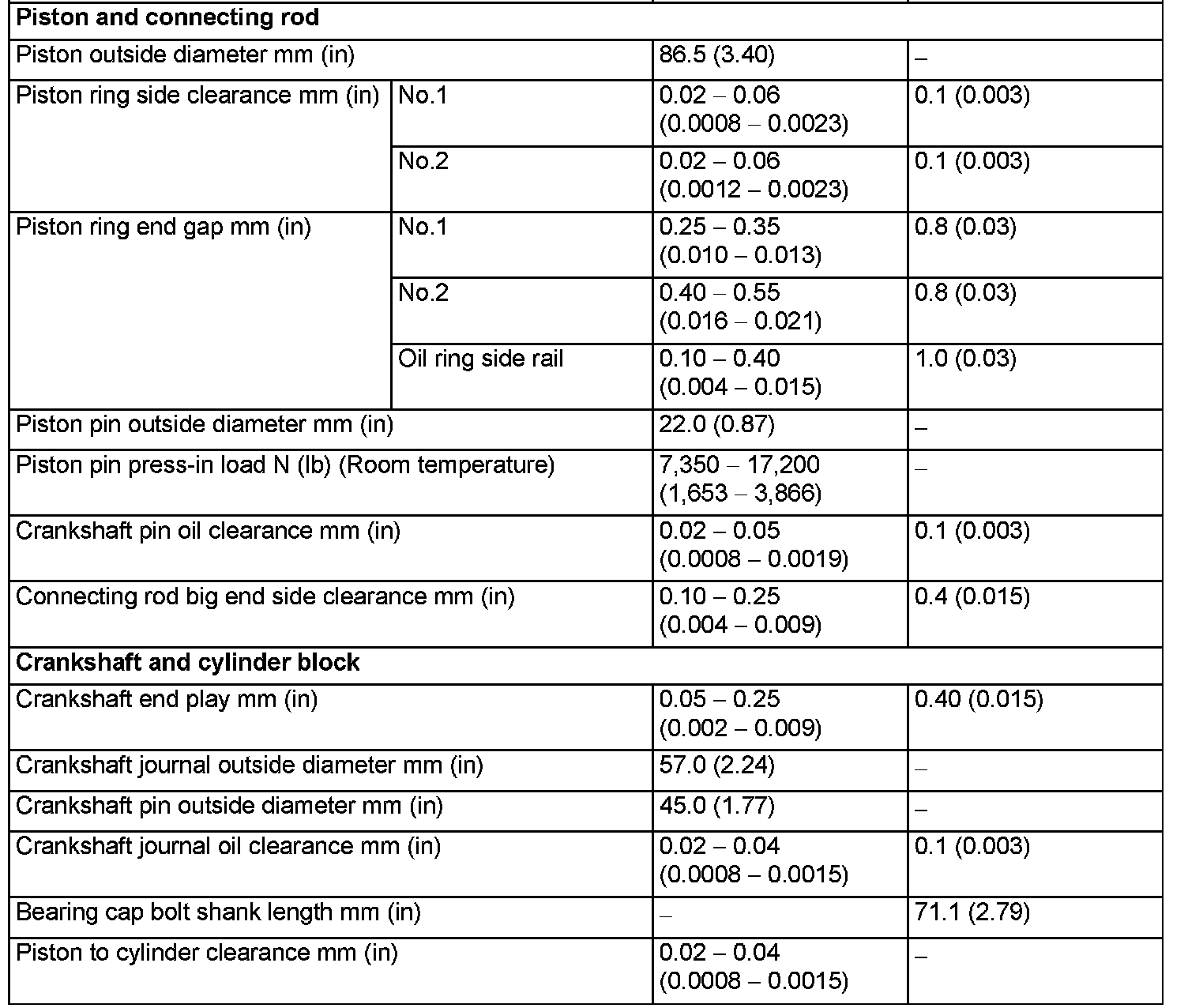

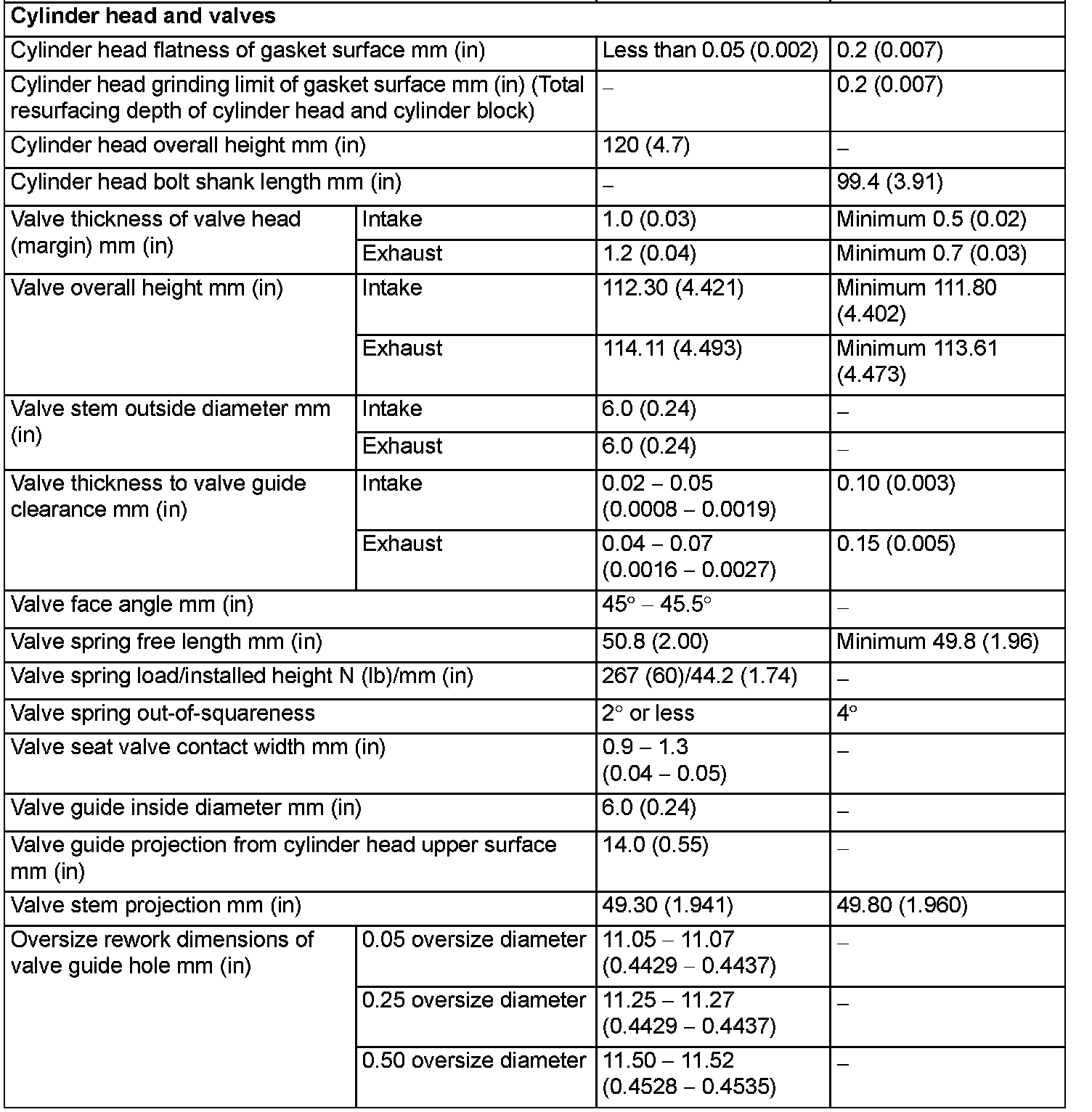

System Specifications

Cylinder Block








Cylinder bore 86.5 mm (3.41 inch)
Crankshaft pulley bolt 25 ± 5 Nm (18 ± 4 ft. lbs.)

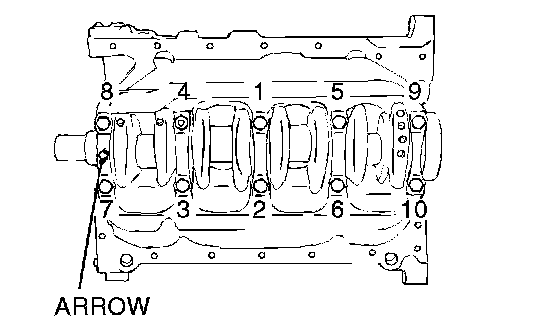

Main bearing cap





Tighten the bolts to 25 ± 2 Nm (18 ± 1 ft. lbs.) in the tightening sequence shown.
