DIAGNOSTIC ITEM 31: Diagnose the lines between CAN main bus line and the powertrain control module < Vehicles without ABS >.: Notes

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

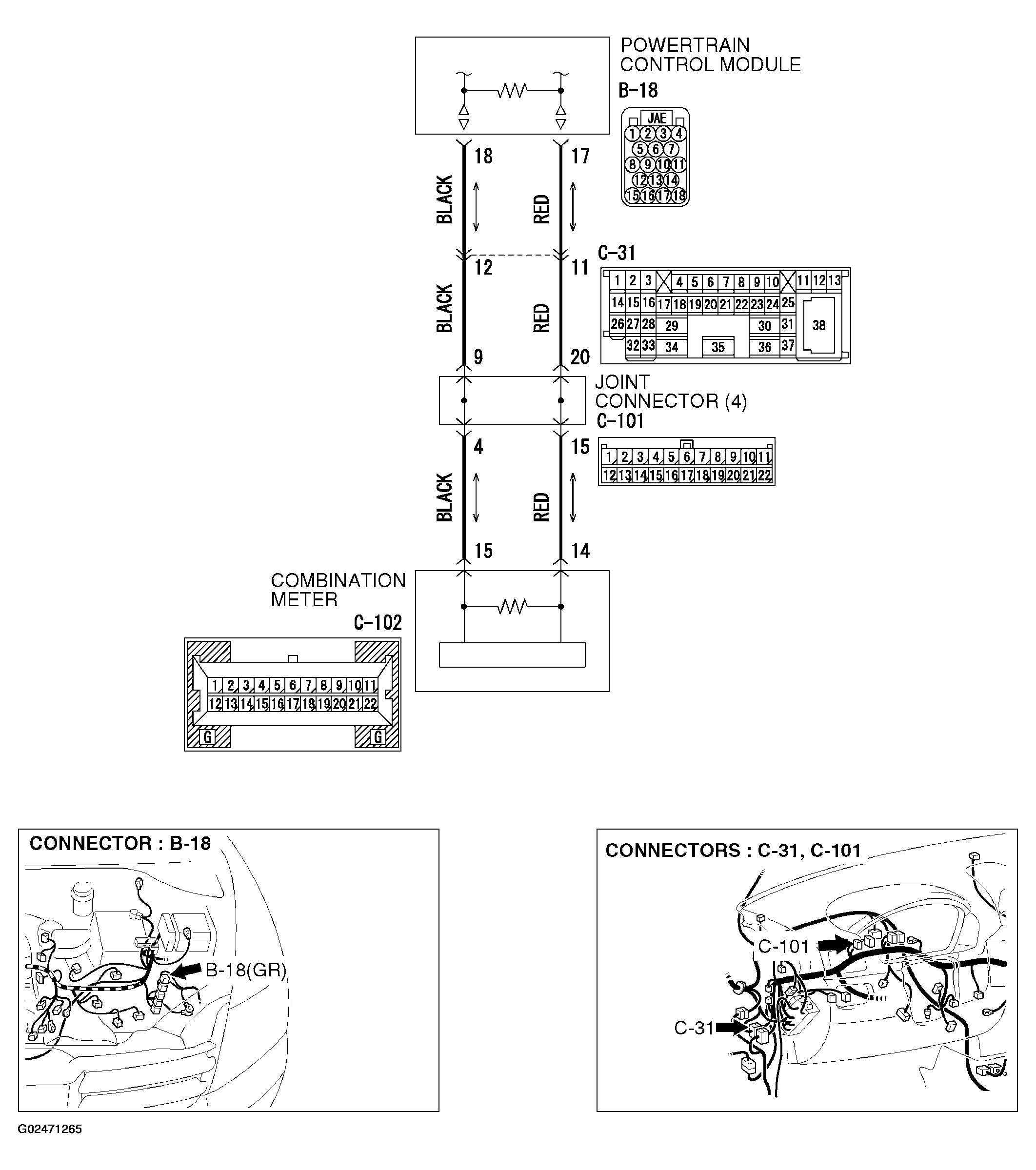

Fig 1: Diagnostic Item 31 Circuit Diagram & Connector Identification
G02471265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
