DTC U1073: Bus Off: Notes

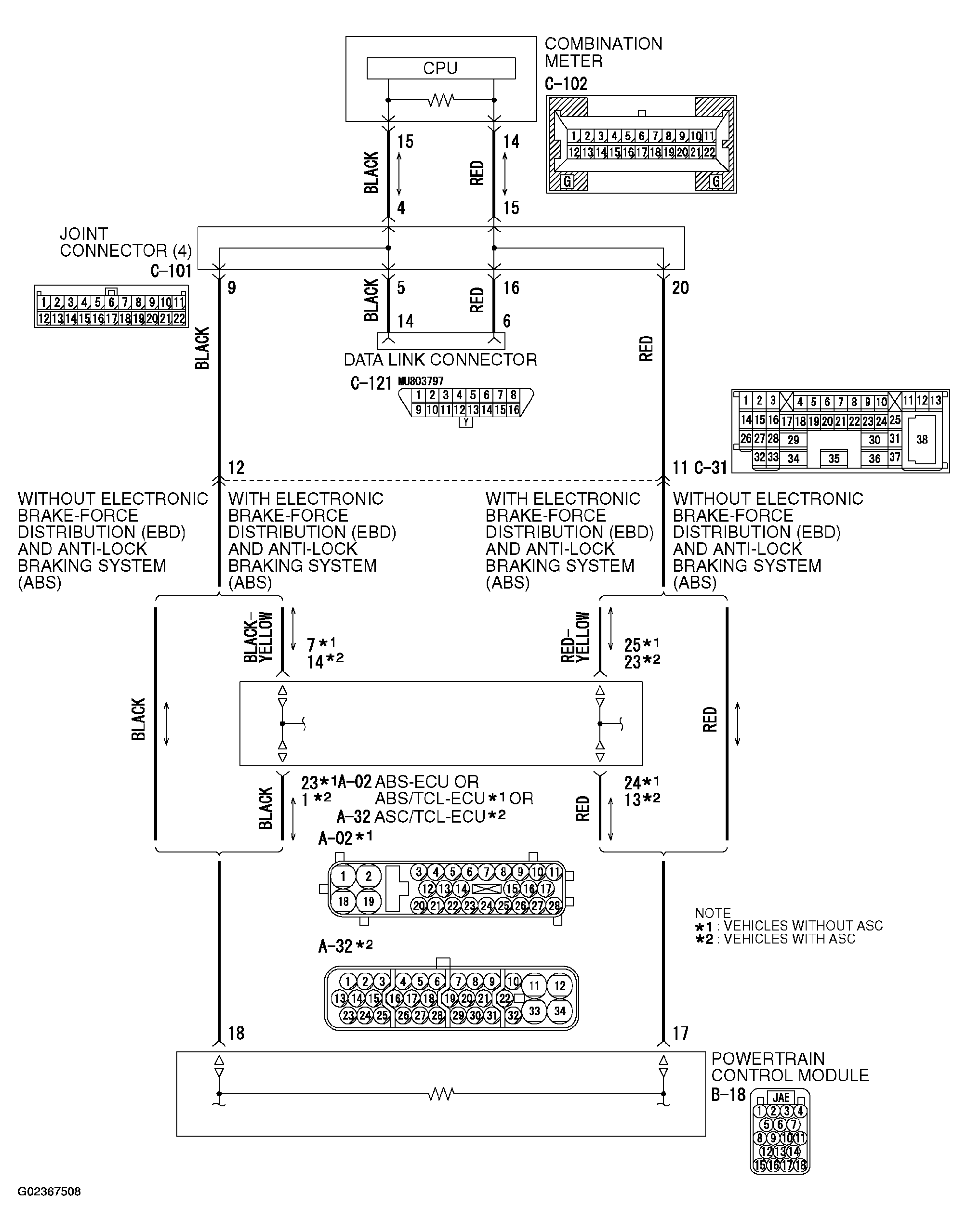

Fig 1: Combination Meter CAN-BUS Line Circuit Diagram & Connector Identification (1 Of 2)
G02367508Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

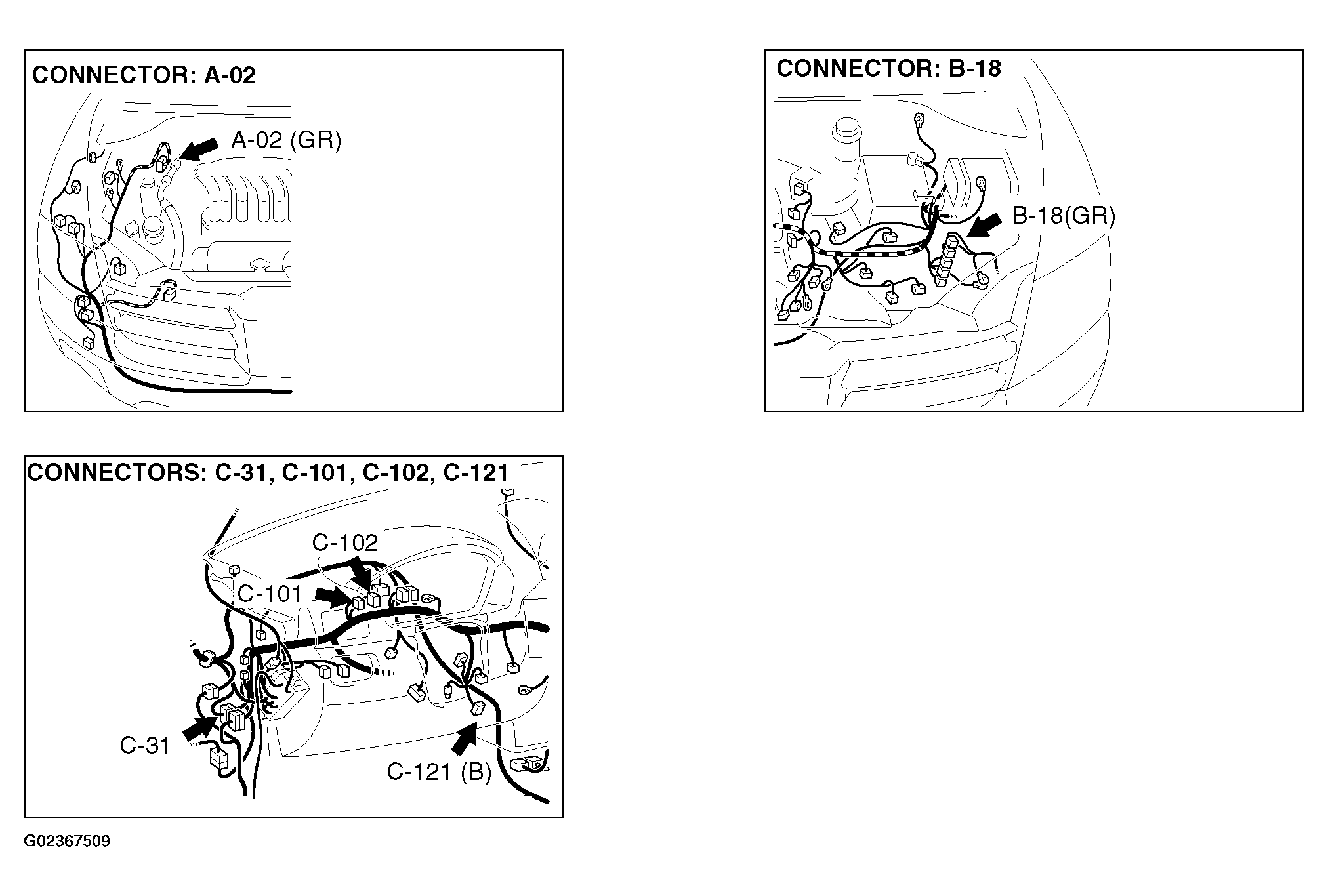

Fig 2: Combination Meter CAN-BUS Line Circuit Diagram & Connector Identification (2 Of 2)
G02367509Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC U1073 is set in the combination meter, always diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
