DTC U1112: SRS-ECU Time-out: Notes

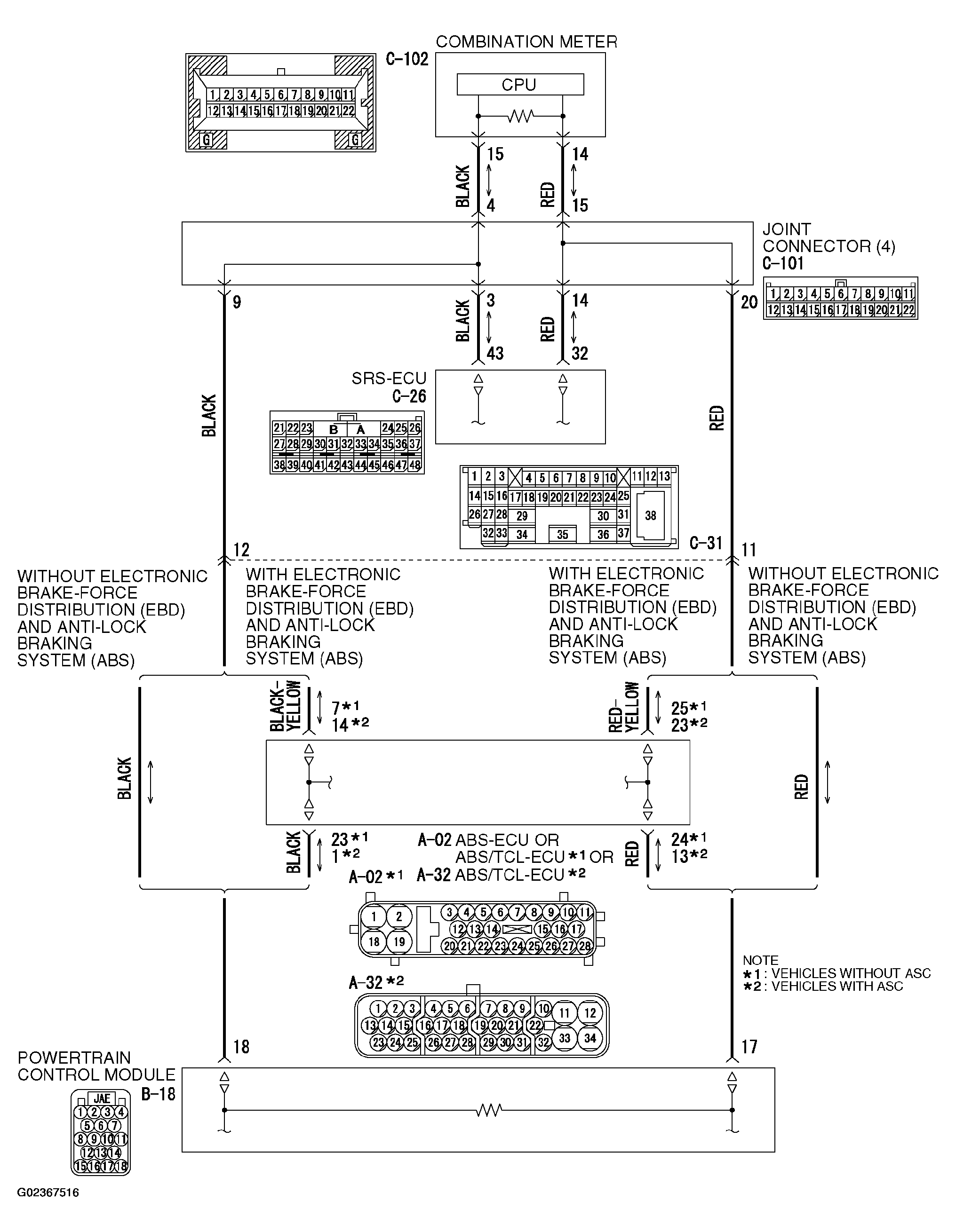

Fig 1: Time-Out During CAN Communication With SRS-ECU Circuit Diagram
G02367516Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC U1112 is set in the combination meter, always diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
