Fuel Level Sensor Check: Notes

  1. Remove the rear seats. (Refer to REAR SEAT ASSEMBLY .)
  2. Remove service holes and remove the fuel pump module and fuel level sensor (sub).
    1. Tightening torque: 1.5 +/- 0.5 N.m (14 +/- 0.5 in-lb)

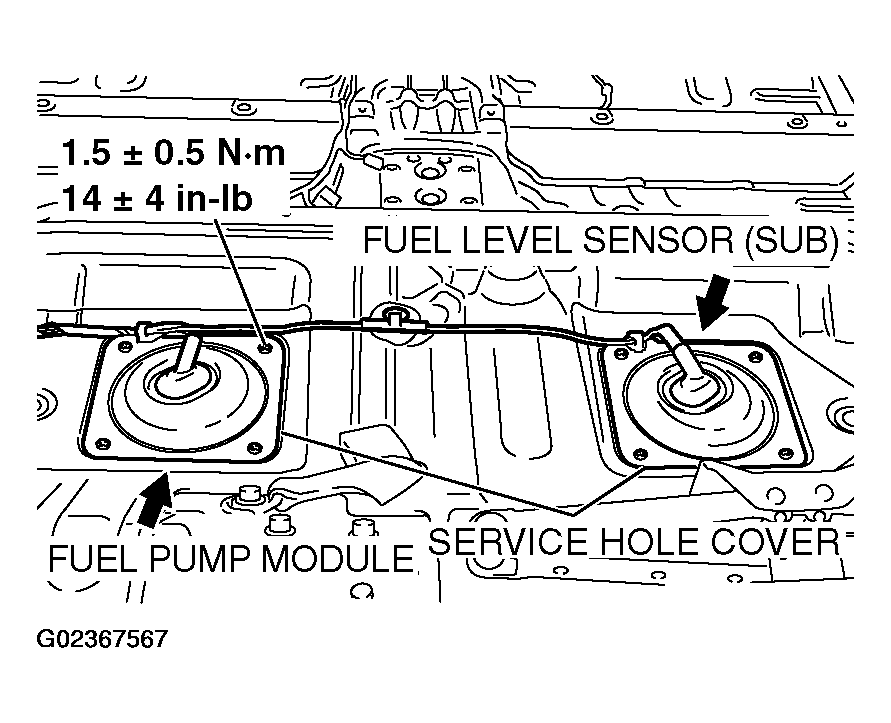

      Fig 1: Removing Service Holes And Fuel Pump Module And Fuel Level Sensor (Sub)
      G02367567Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
