DTC B1410: Passenger's (Front) Air Bag Module (1st Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit), DTC B1490: Passenger's (Front) Air Bag Module (2nd Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit): Notes

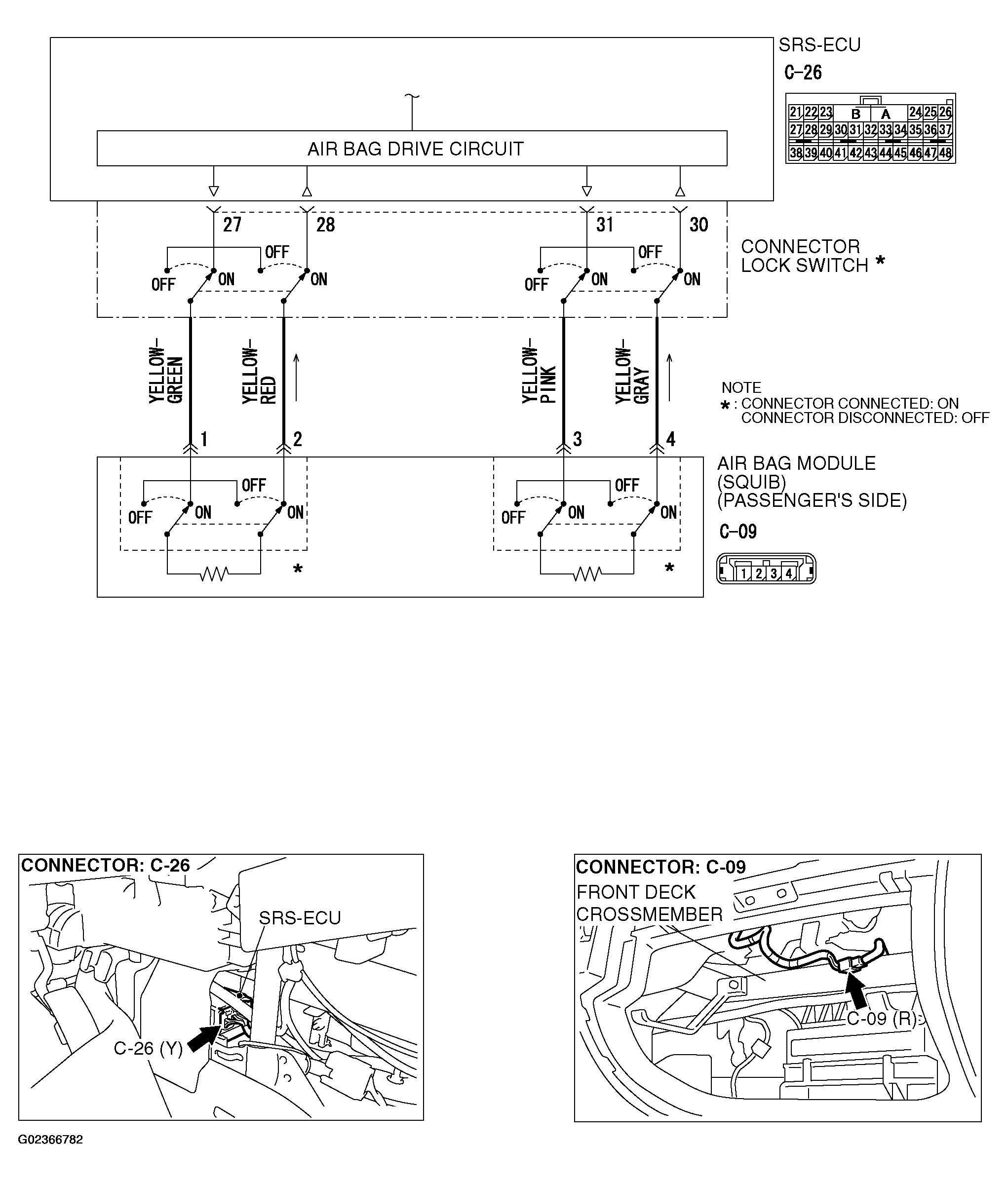

Fig 1: Passenger's (Front) Air Bag Module (1St Squib And 2Nd Squib) Circuit Diagram & Connector Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1410 < 1st squib > or B1490 < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
