Disassembly And Assembly: Notes

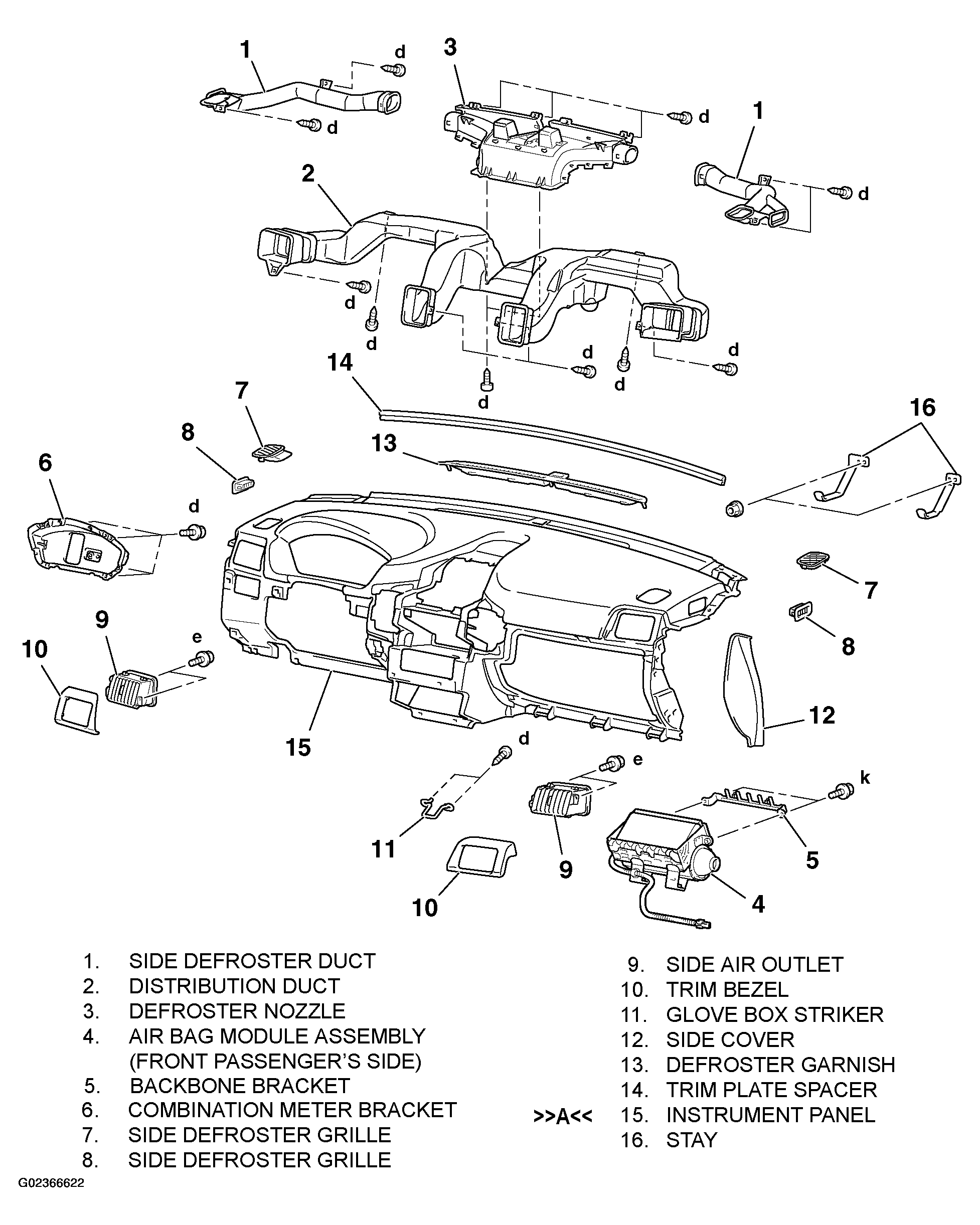

Fig 1: Disassembling/Assembling Instrument Panel Assembly
G02366622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
