INSPECTION PROCEDURE 5: Communication between the Scan Tool and the TPMS is not Possible.: Notes

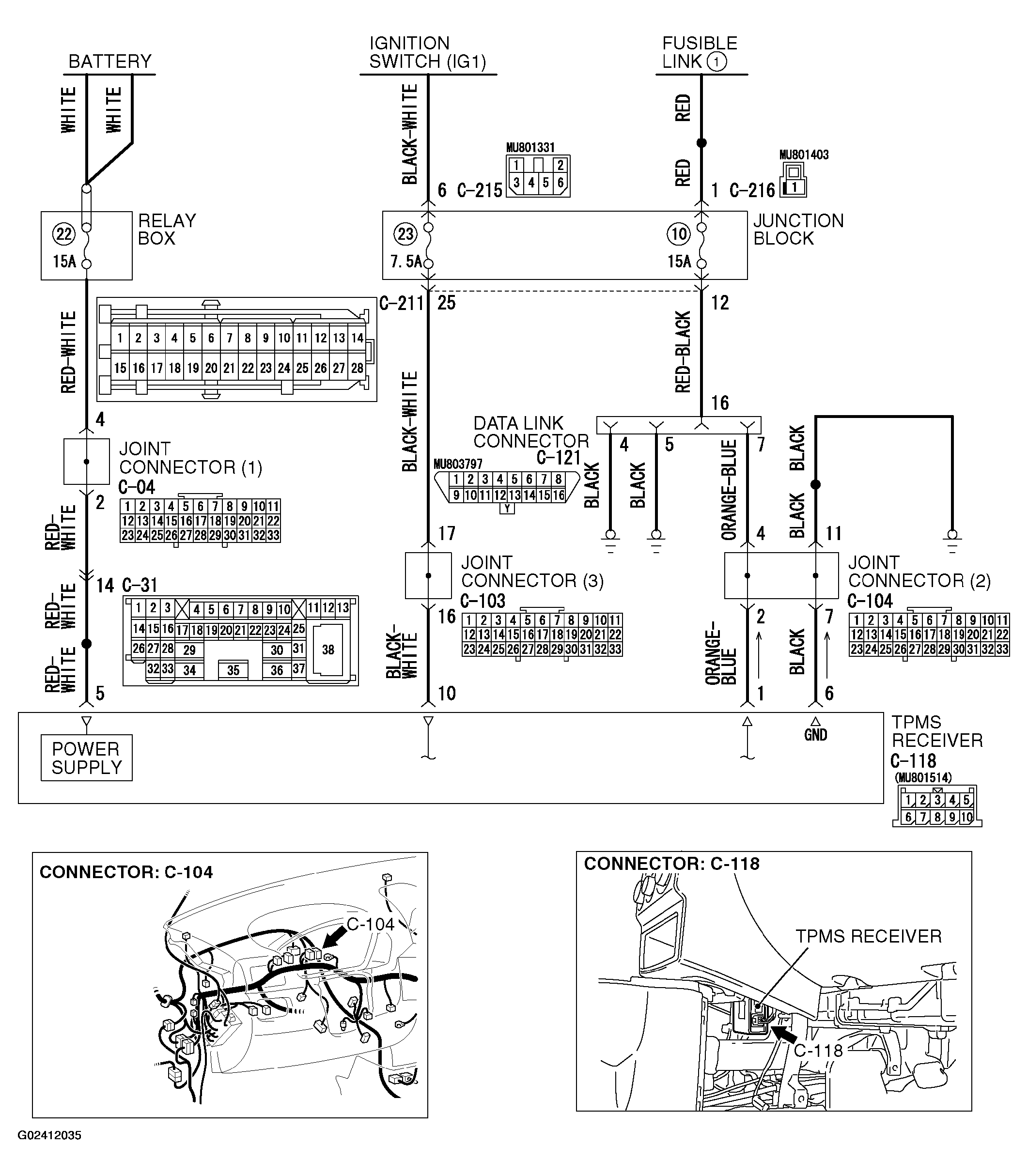

Fig 1: Data Link Connector Circuit & Identifying Connectors
G02412035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

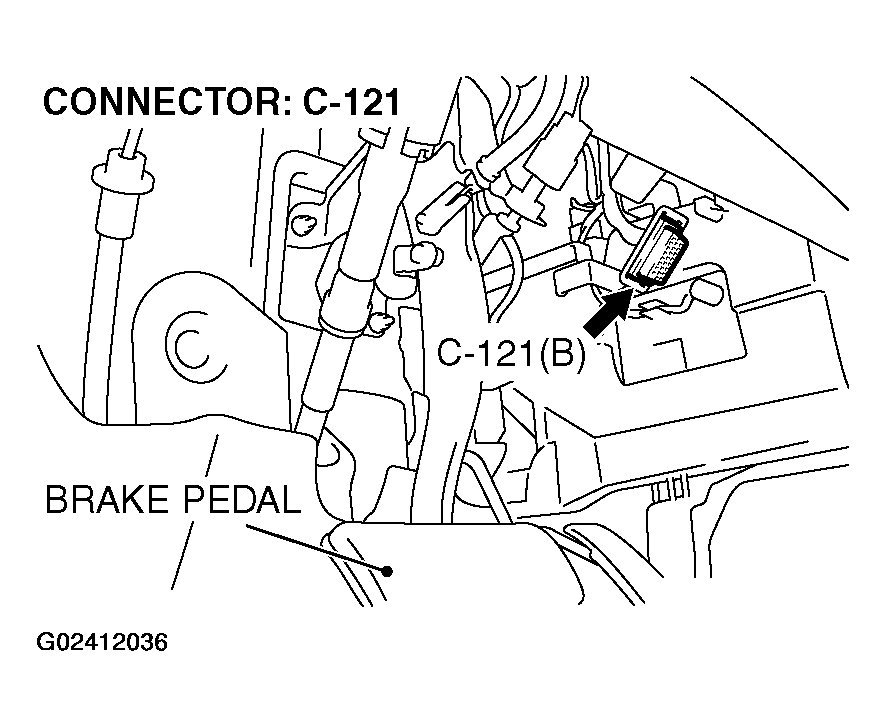

Fig 2: Identifying Connector C-121
G02412036Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
