INSPECTION PROCEDURE 15: Shift Switch Assembly System: Notes

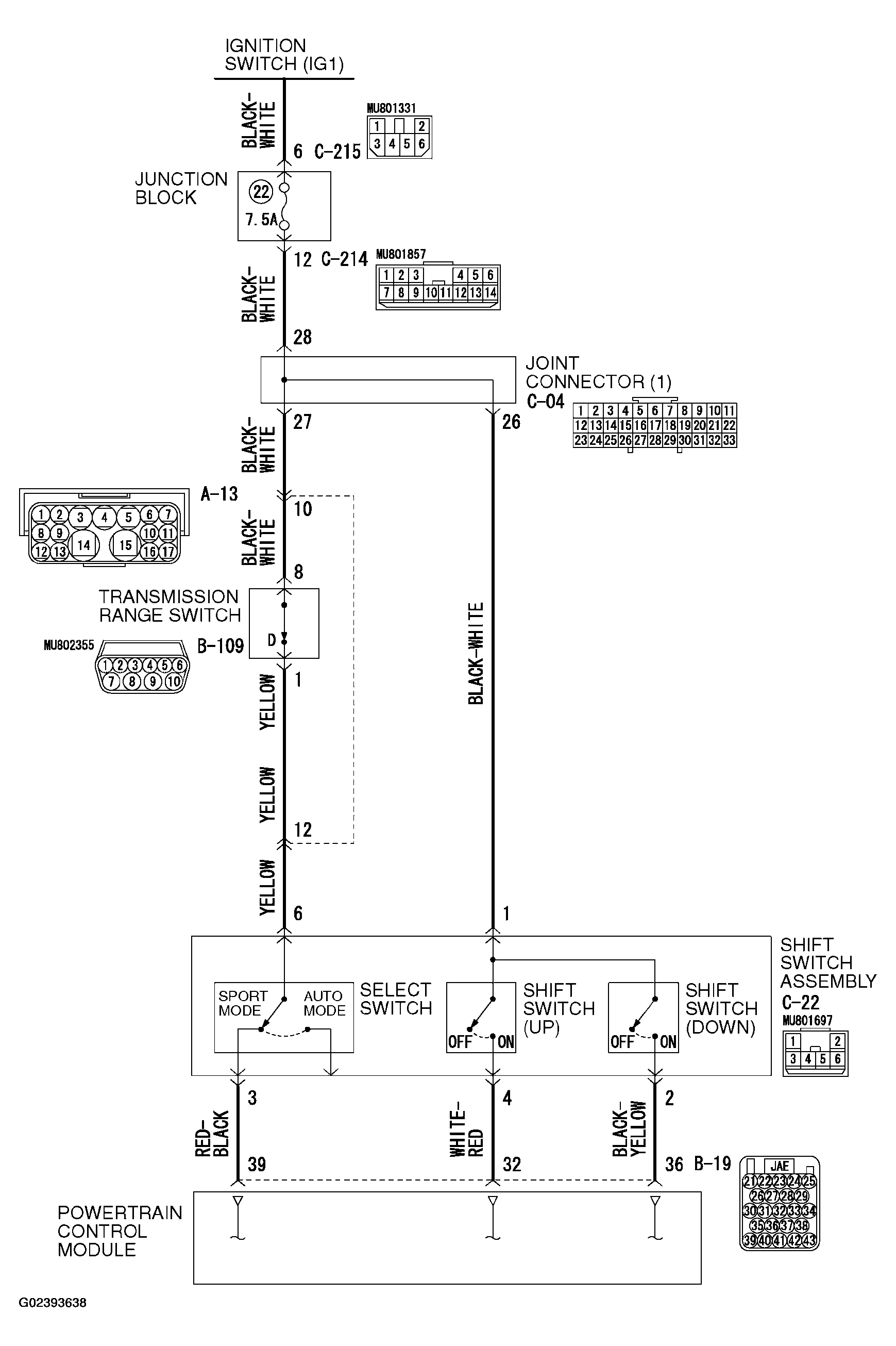

Fig 1: Shift Switch Assembly System Circuit Diagram & Connector Identification (1 Of 3)
G02393638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

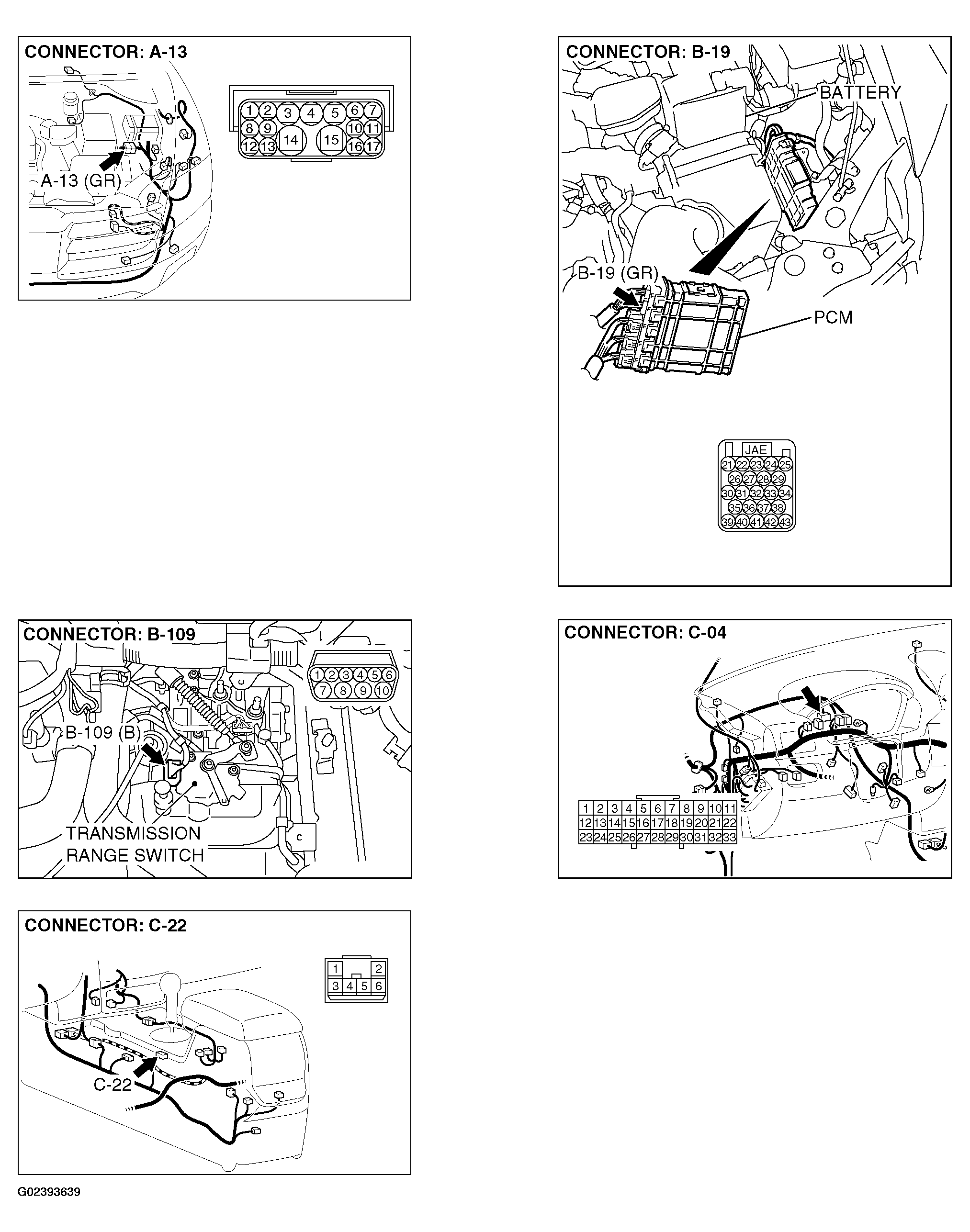

Fig 2: Shift Switch Assembly System Circuit Diagram & Connector Identification (2 Of 3)
G02393639Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

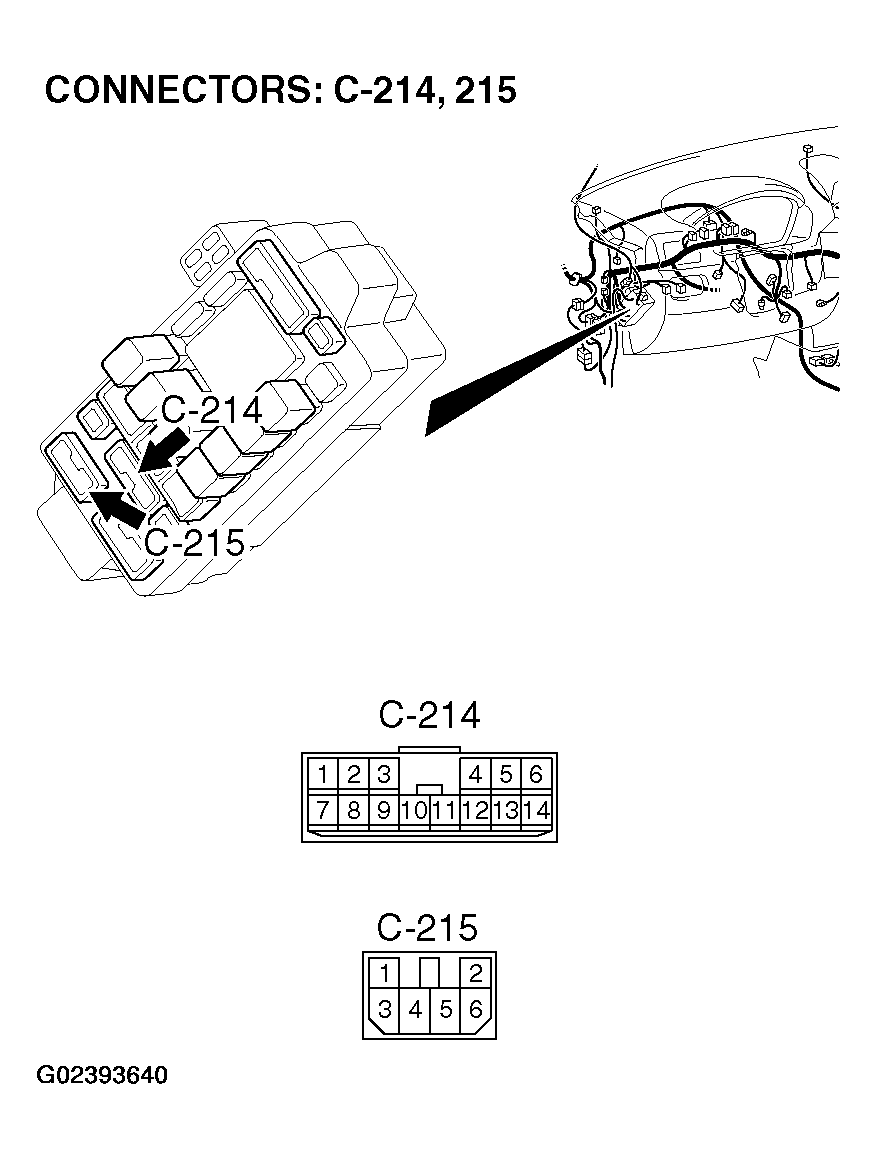

Fig 3: Shift Switch Assembly System Circuit Diagram & Connector Identification (3 Of 3)
G02393640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
