Liftgate Handle Check

Check continuity between the liftgate handle terminals.

TESTER CONNECTION SPECIFIED CONDITION CHART

HANDLE POSITION	TESTER CONNECTION	SPECIFIED CONDITION
At the "ON" position	1 - 2	Less than 2 ohms
At the "OFF" position	1 - 2	Open circuit

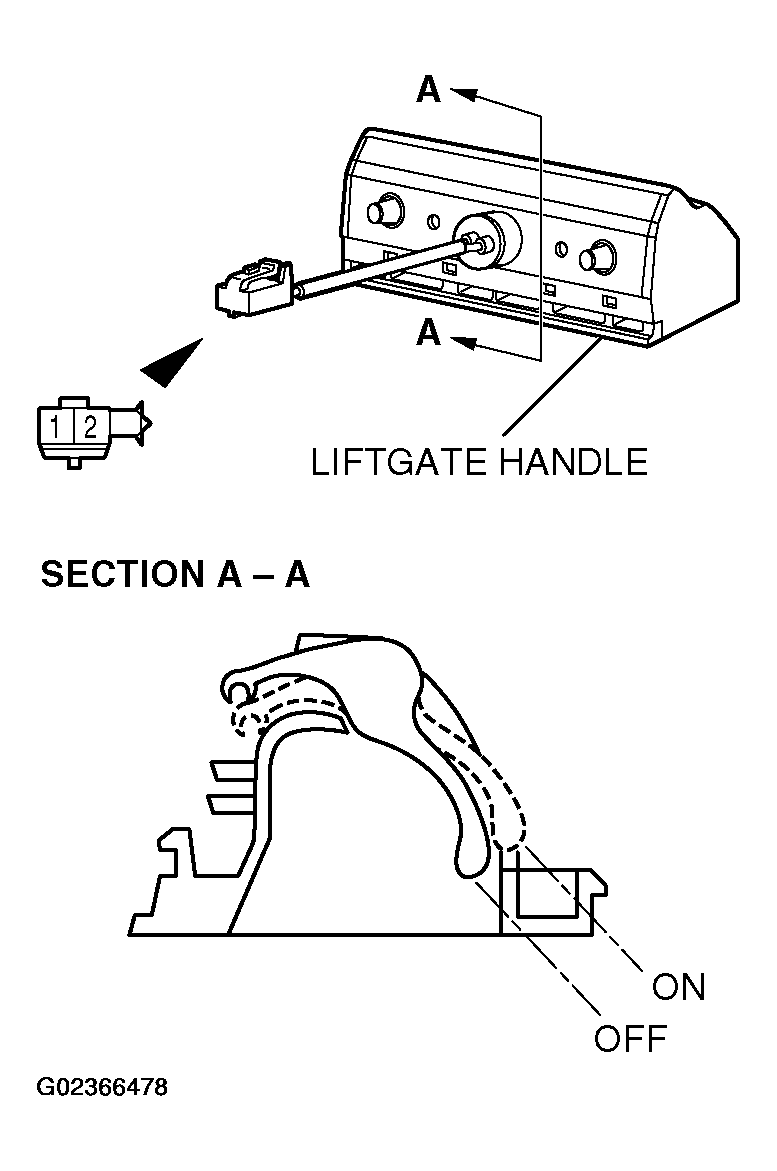

Fig 1: Checking Continuity Between Liftgate Handle Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
