TCL Switch Check

  1. Remove the TCL switch. (Refer to TCL SWITCH ).

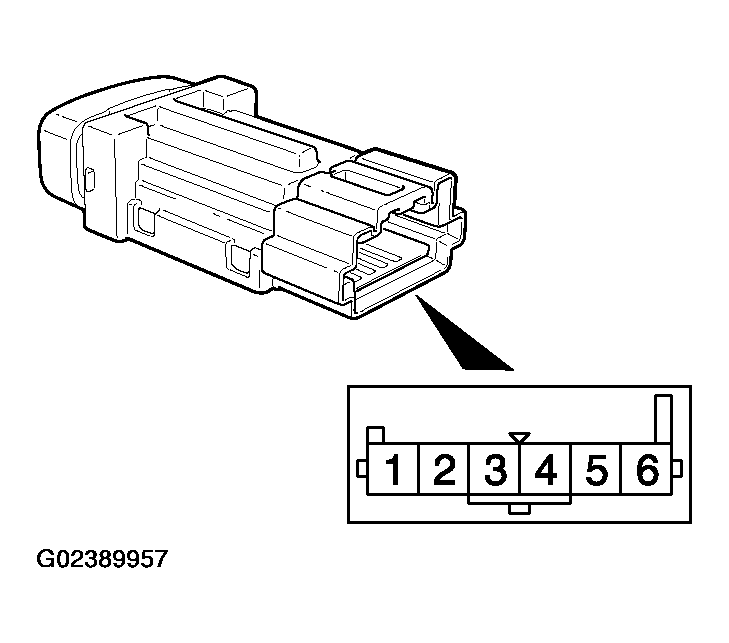

    Fig 1: Identifying TCL Switch Connector
    G02389957Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Measure the resistance between terminal 1 and terminal 2 when the TCL switch is pressed or released. If the values measured at the time correspond to those in the table below, the resistance values are correct.
TESTER CONNECTION SPECIFIED CONDITION

SWITCH POSITION  TESTER CONNECTION  SPECIFIED CONDITION
Pressed 1-2 Less than 2 ohms
Released 1-2 Open circuit
