Diagnostic Trouble Code Chart

CAUTION: During diagnosis, a DTC associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are set, erase them all.

Follow the inspection chart that is appropriate for the diagnostic trouble code.

NOTE: Since the TCL is controlled with the same ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > used to control the ABS, the codes (with a *) used only for the ABS also appear.

For DTCs which are not located in this article, refer to DIAGNOSTIC TROUBLE CODE CHART .

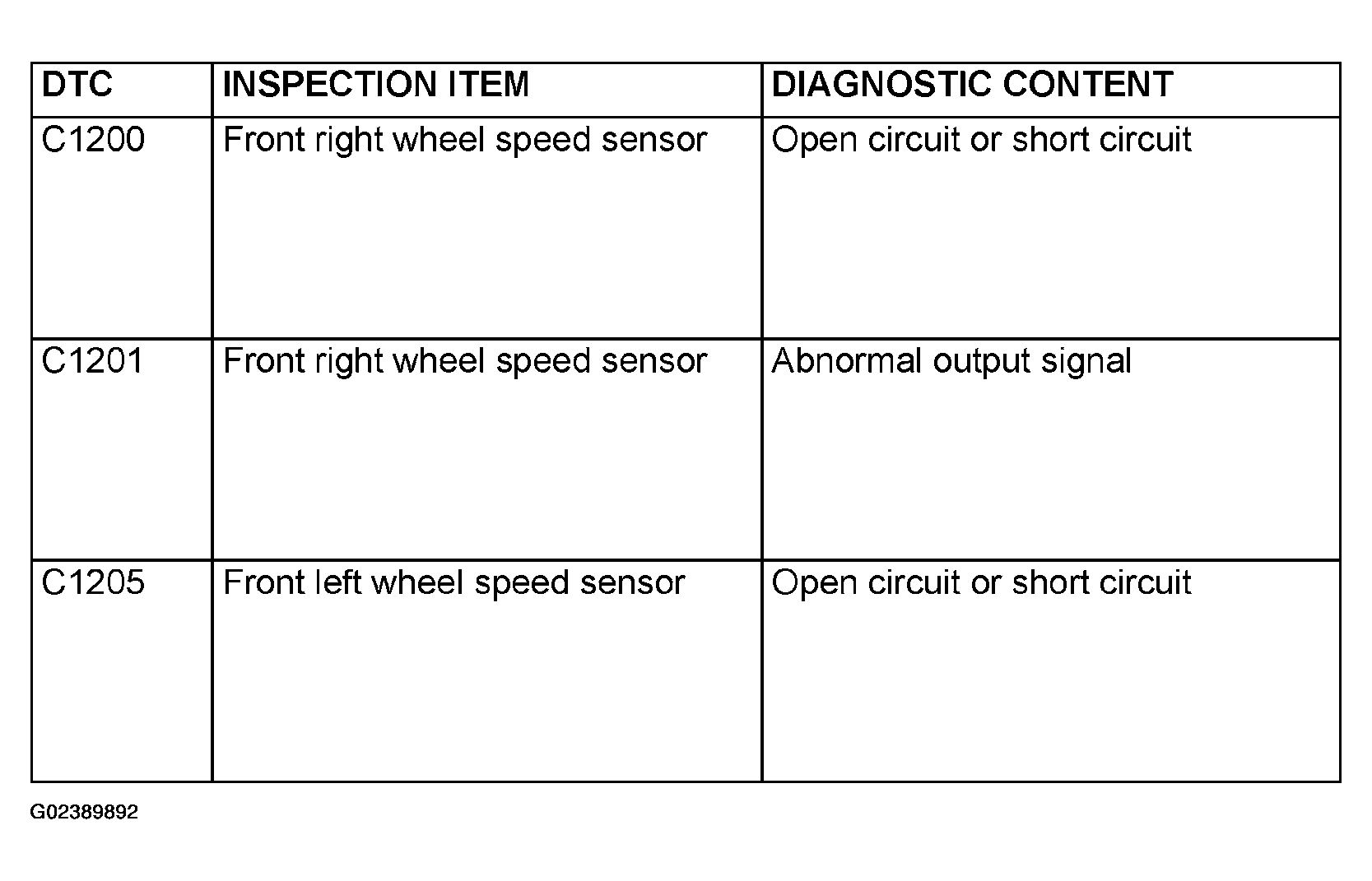

Fig 1: Diagnostic Trouble Code Chart (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

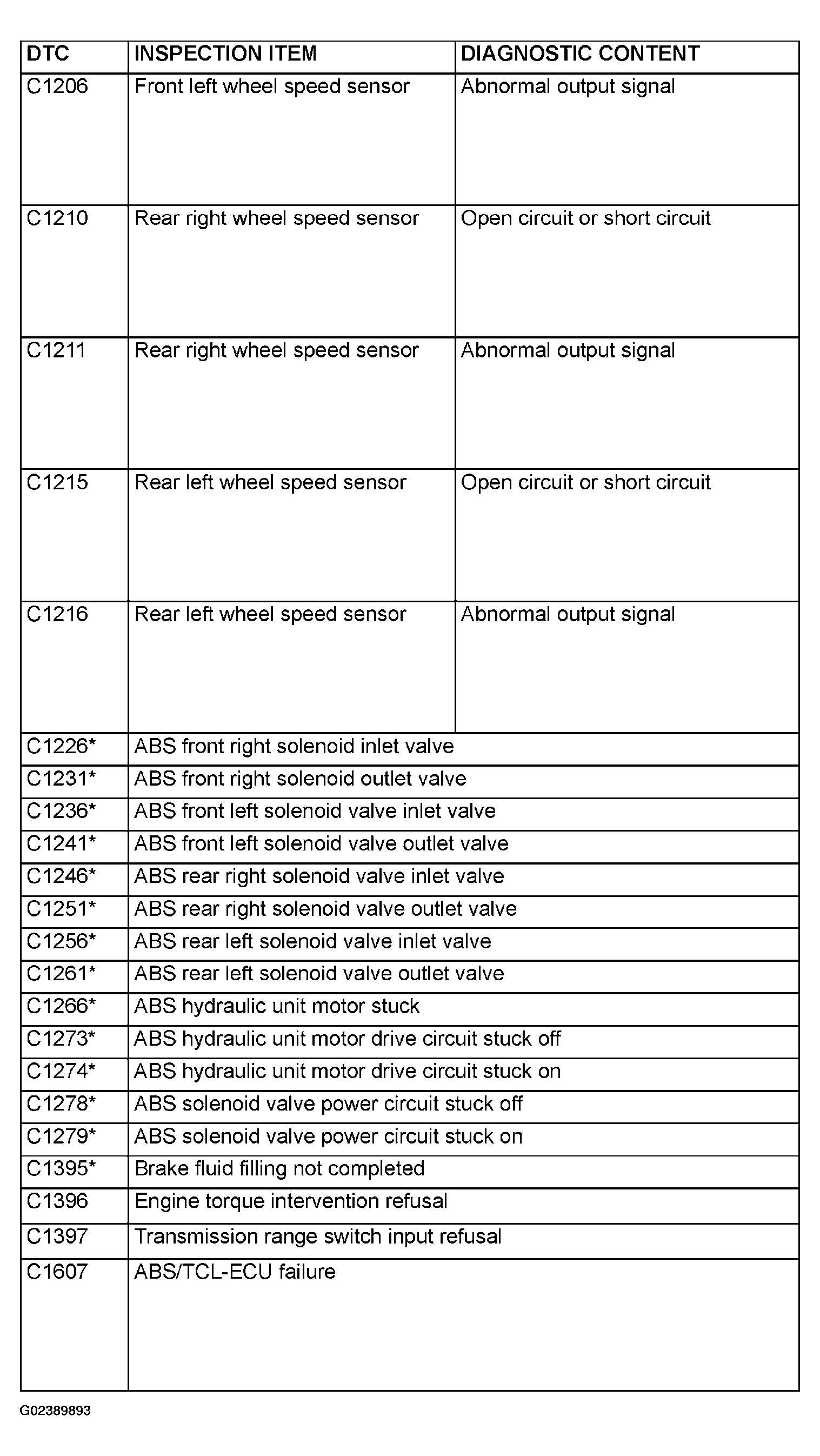

Fig 2: Diagnostic Trouble Code Chart (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

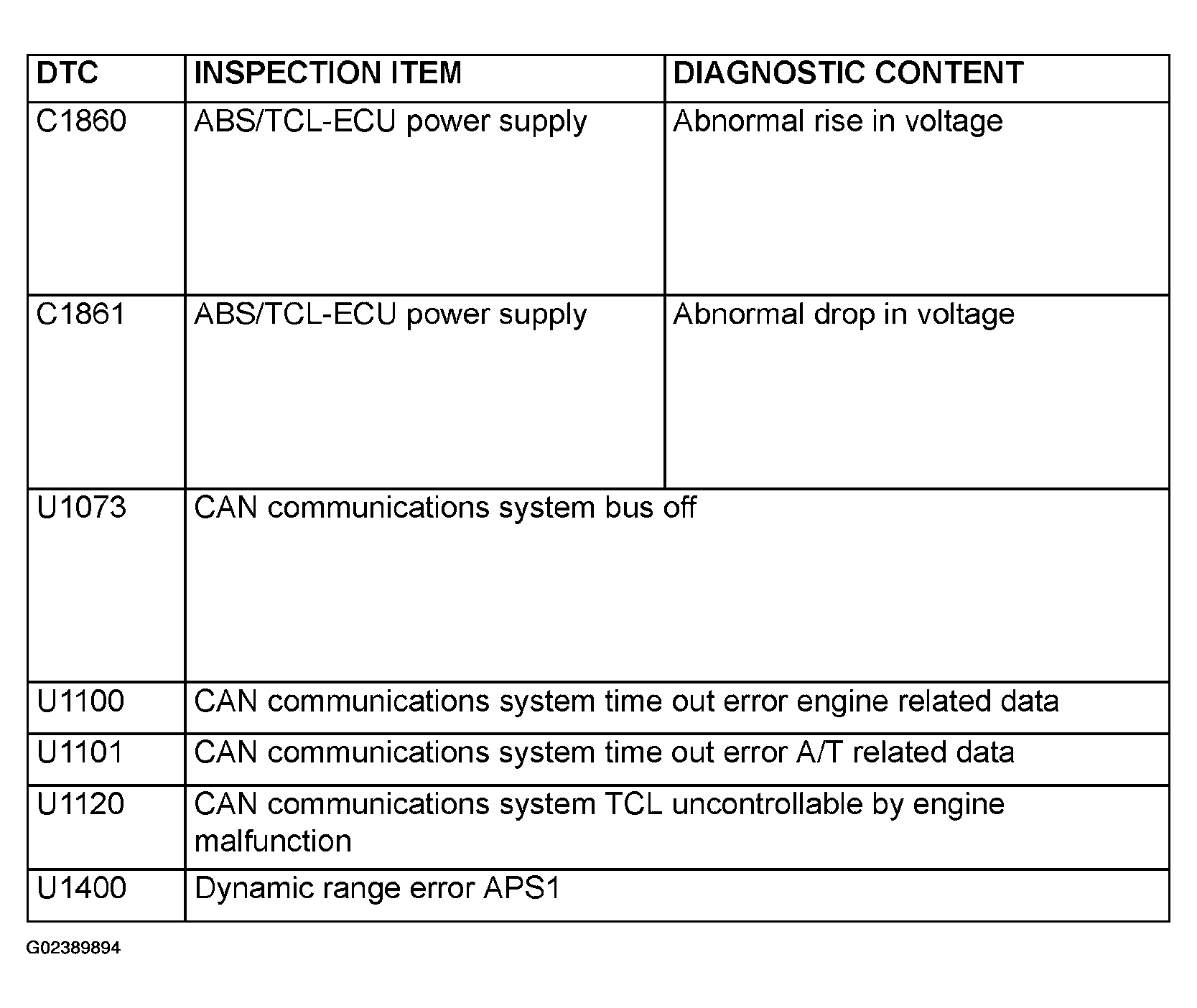

Fig 3: Diagnostic Trouble Code Chart (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

DIAGNOSTIC TROUBLE CODES

DTC	Definition
C1396	Engine Torque Intervention Refusal
C1397	Transmission Range Switch Input Refusal
U1100	CAN Communications System Time Out Error Engine Related Data
U1101	CAN Communications System Time Out Error A/T Related Data
U1120	CAN Communications System TCL Uncontrollable by Engine Malfunction
U1400	Dynamic range error APS1
