Traction Control System (TCL)
>>
Traction Control System (TCL) Diagnosis
>>
Symptom Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Chart

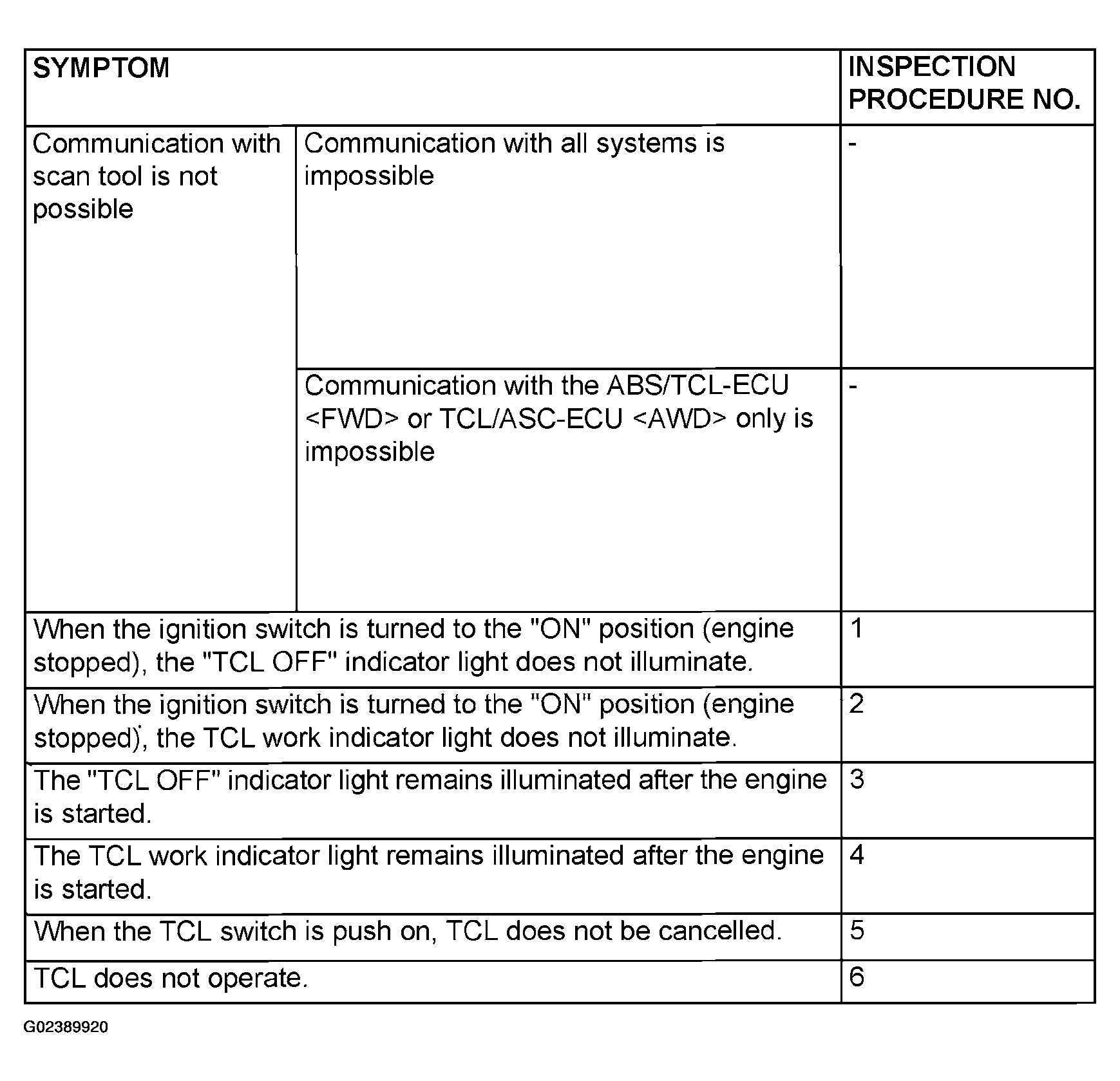

Fig 1: Diagnostic Procedure - Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
