Symptom Chart

NOTE: For test procedures for Inspection Procedures 6-9 listed in the following illustration, refer to INSPECTION PROCEDURE 1 . For test procedures for Inspection Procedure 10 listed in the following illustration, refer to INSPECTION PROCEDURE 5 . For all other test procedures, refer to SYMPTOM PROCEDURES .

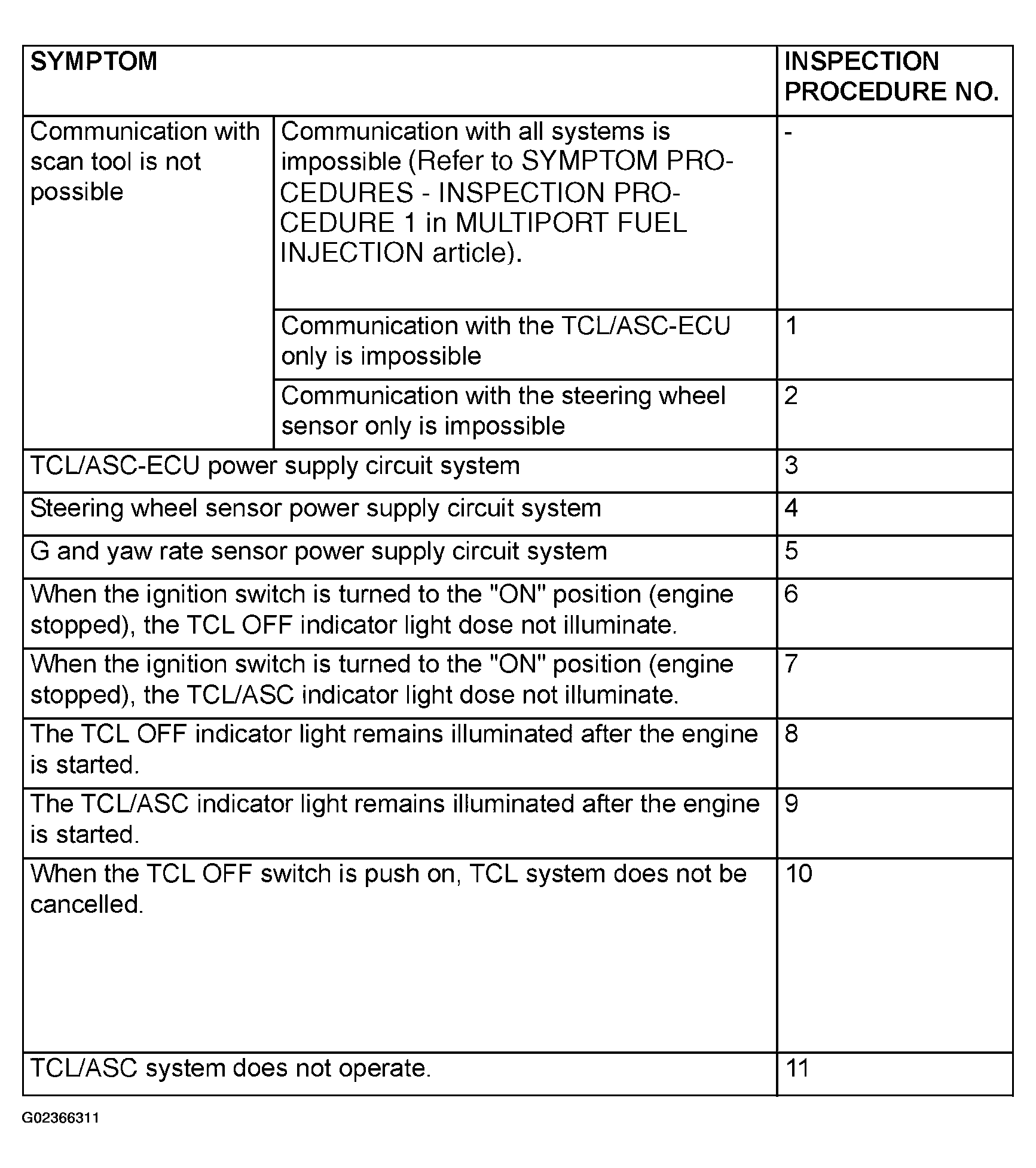

Fig 1: Symptom Chart
G02366311Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
