Abnormal Waveforms

• Example 1

  PROBABLE CAUSE: Open circuit in diode

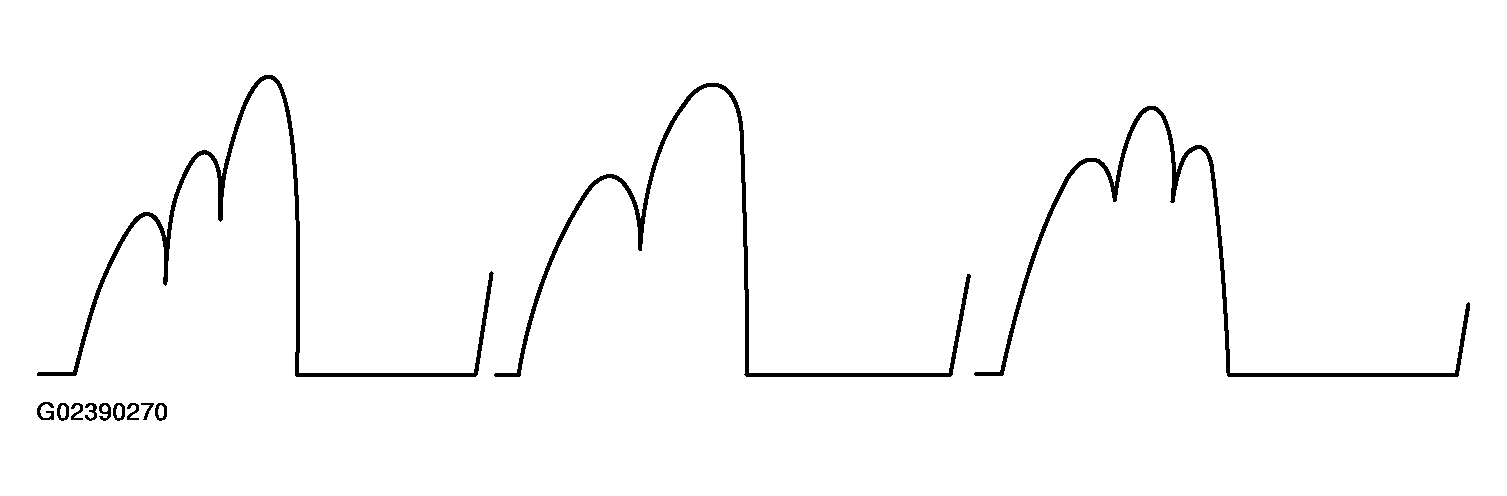

  Fig 1: Identifying Abnormal Waveform: Example 1

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• Example 2

  PROBABLE CAUSE: Short-circuit in diode

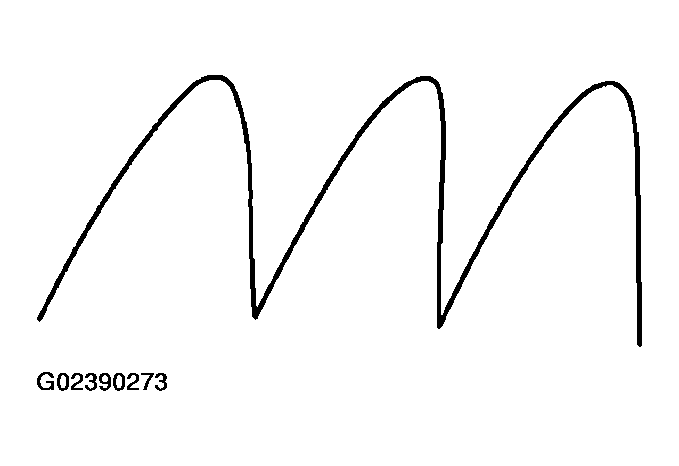

  Fig 2: Identifying Abnormal Waveform: Example 2

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• Example 3

  PROBABLE CAUSE: Open circuit in stator coil

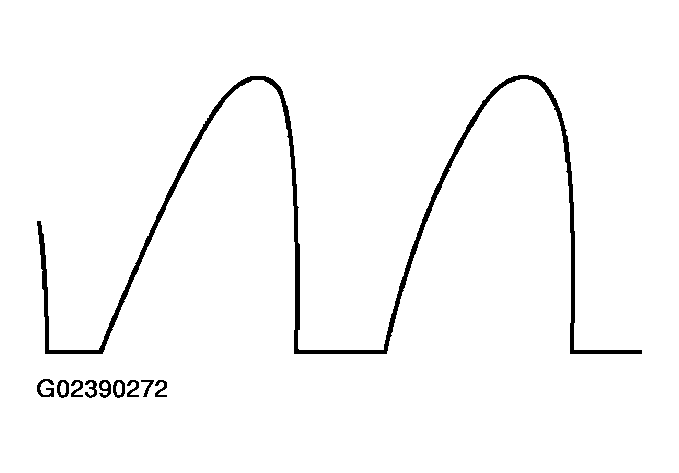

  Fig 3: Identifying Abnormal Waveform: Example 3

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• Example 4

PROBABLE CAUSE: Short-circuit in stator coil

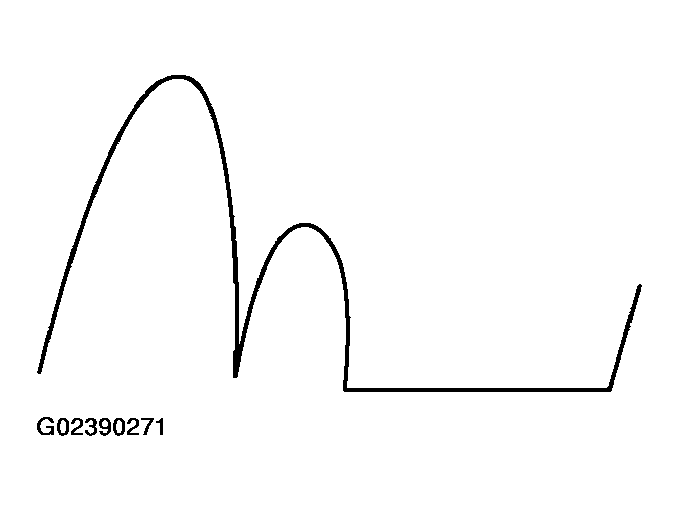

Fig 4: Identifying Abnormal Waveform: Example 4

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
