How To Read And Erase Diagnostic Trouble Codes

Required Special Tools:

MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

NOTE: If the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool MB991958 does not display.

Connect scan tool MB991958 to the data link connector.

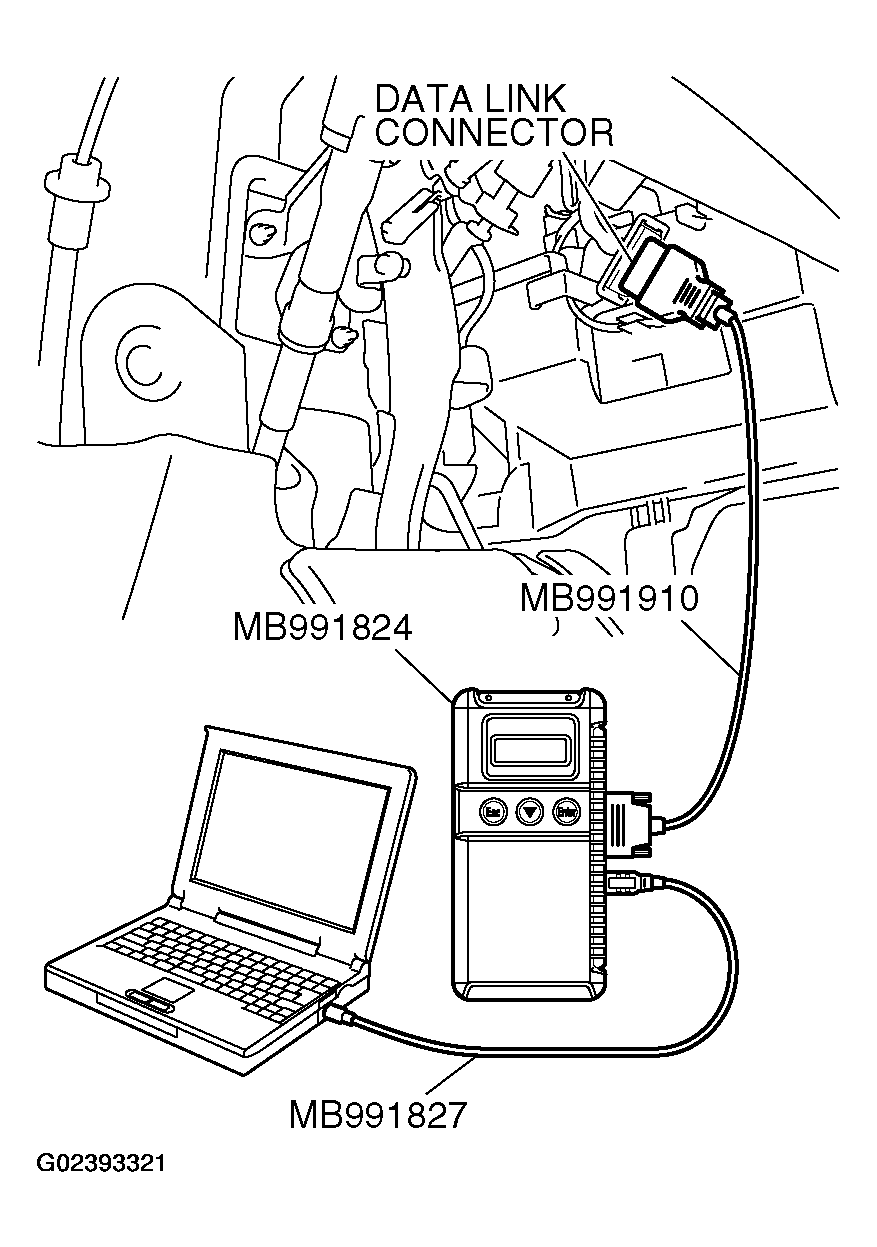

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the ignition switch to the "ON" position.
Depress the "CRUISE" (MAIN) switch to illuminate the "CRUISE" indicator light in the combination meter.
Select the "Interactive Diagnosis" from the start-up screen.
Select the "System Select."
Choose the "Auto-cruise Control System" from the "POWERTRAIN" tab.
Select the "Diagnostic Trouble Code."
If a DTC is set, it is shown.
Choose the "DTC erase" to erase the DTC.
Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect scan tool MB991958.
