Disassembly And Assembly: Notes

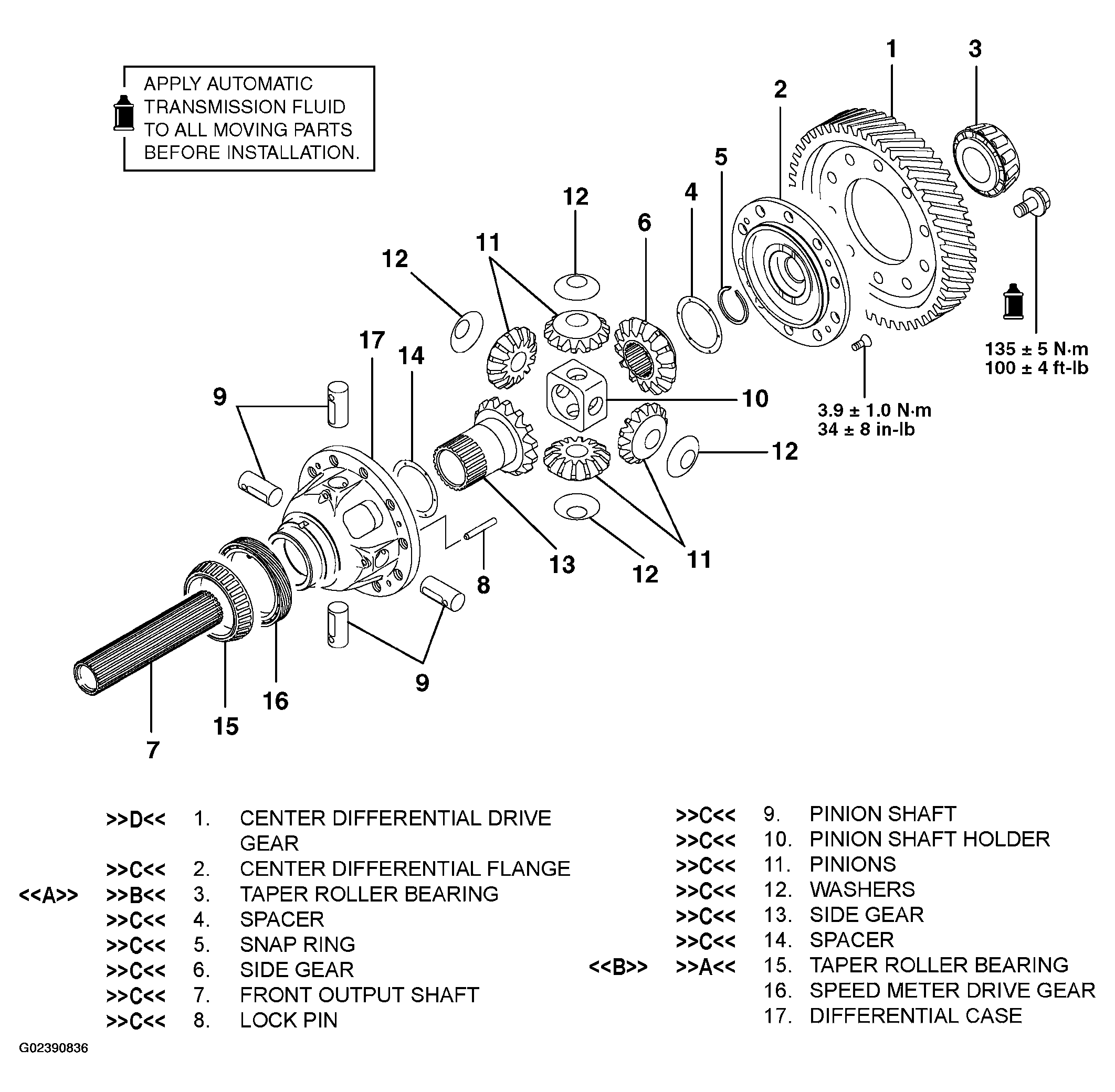

Fig 1: Disassembling & Assembly Of Center Differential (W4A5A)
G02390836Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
