Disassembly And Assembly: Notes

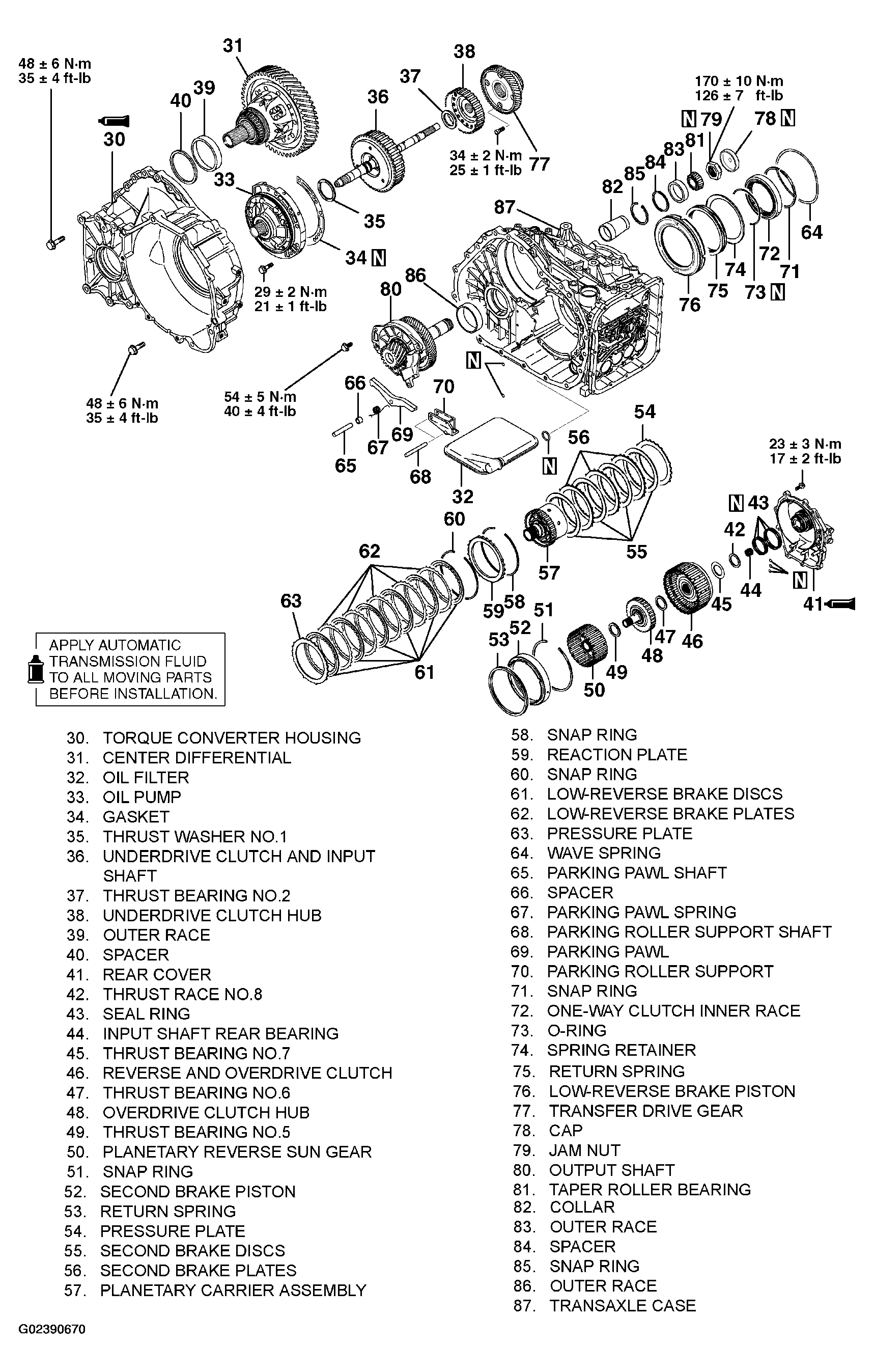

Fig 1: Exploded View Of Transaxle F4A5A (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

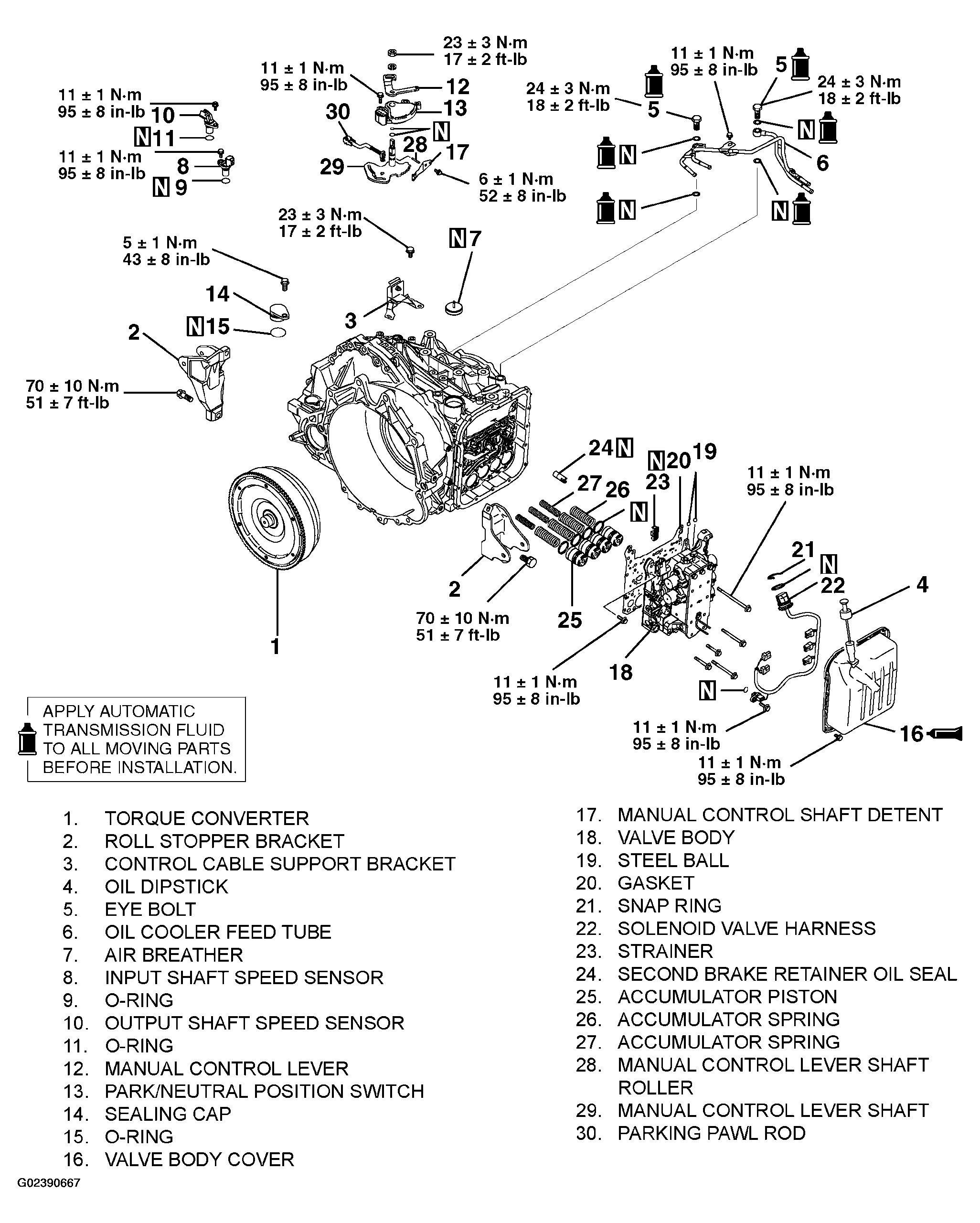

Fig 2: Exploded View Of Transaxle F4A5A (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

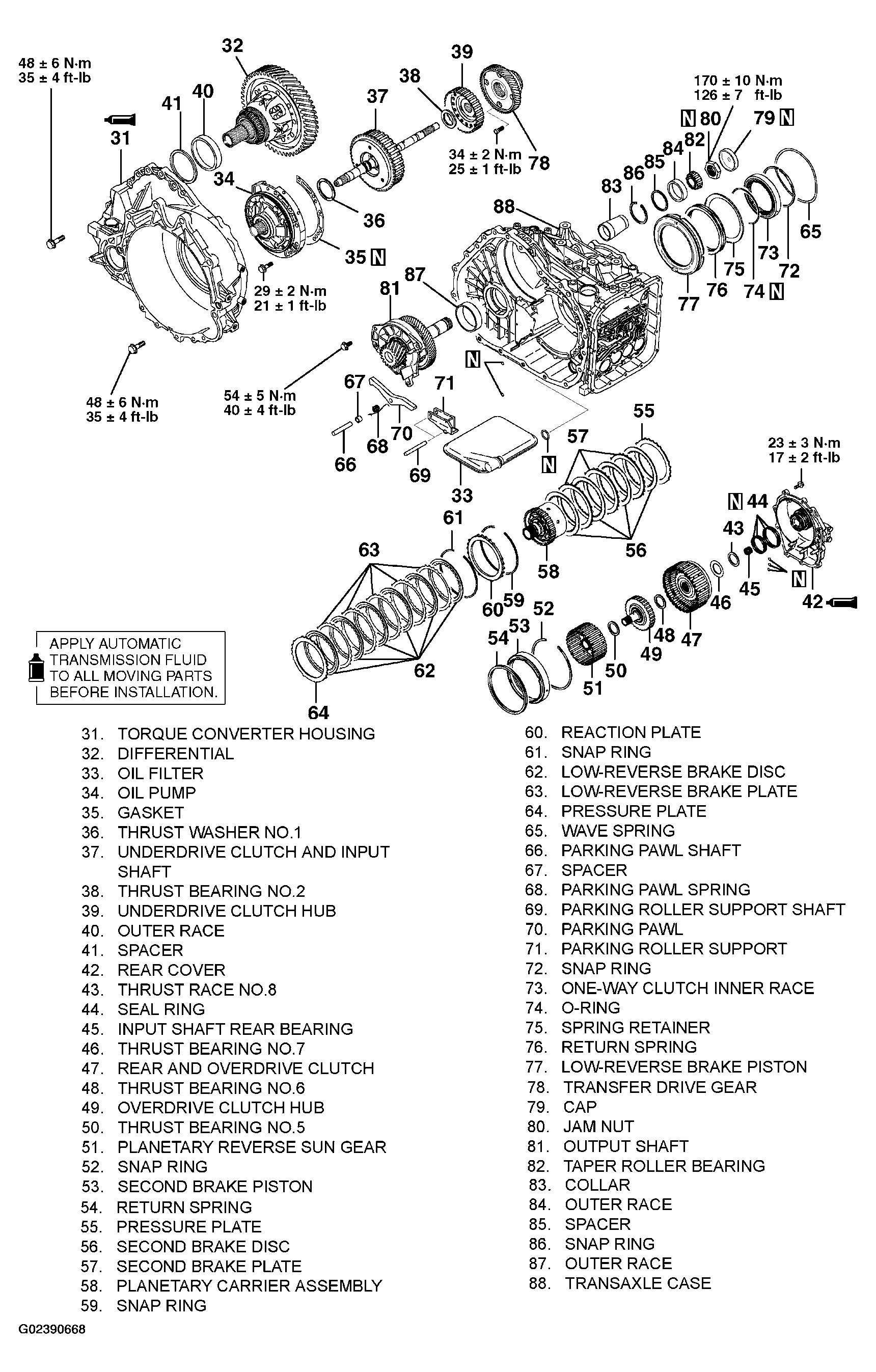

Fig 3: Exploded View Of Transaxle W4A5A (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

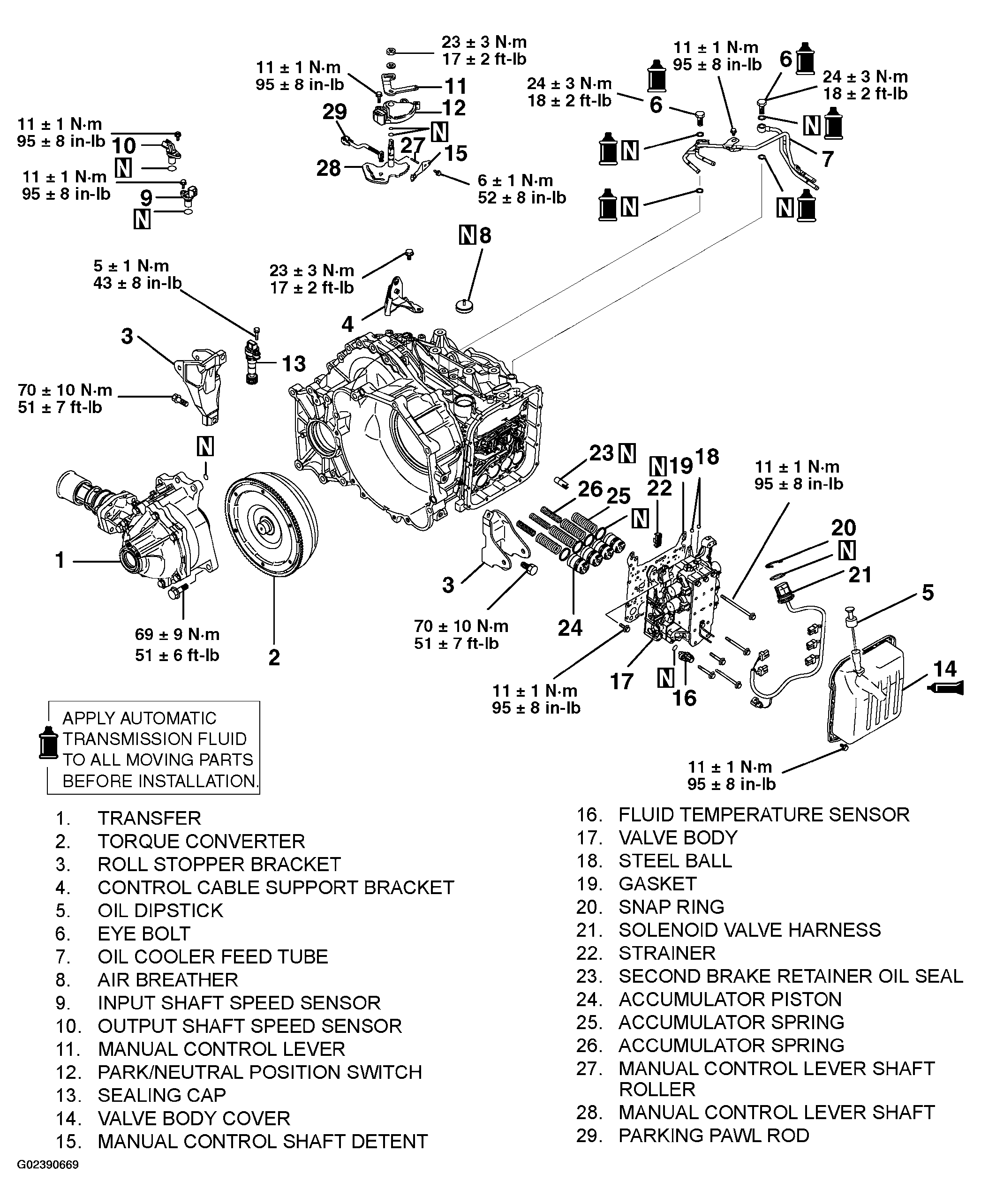

Fig 4: Exploded View Of Transaxle W4A5A (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990607: Torque Wrench Socket
• MB990930: Installer Adapter
• MB990931: Installer Adapter
• MB990936: Installer Adapter
• MB990938: Handle
• MB991625: Special Socket (41)
• MB991632: Clearance Dummy Plate
• MD998323: Bearing Installer
• MD998333: Oil Pump Remover
• MD998338: Oil Pump Remover
• MD998412: Guide
• MD998913: Dial Gauge Extension
• MD998924: Spring Compressor Retainer
