INSPECTION PROCEDURE 1: Communication Between Scan Tool And The TCL/ASC-ECU Is Not Possible.: Notes

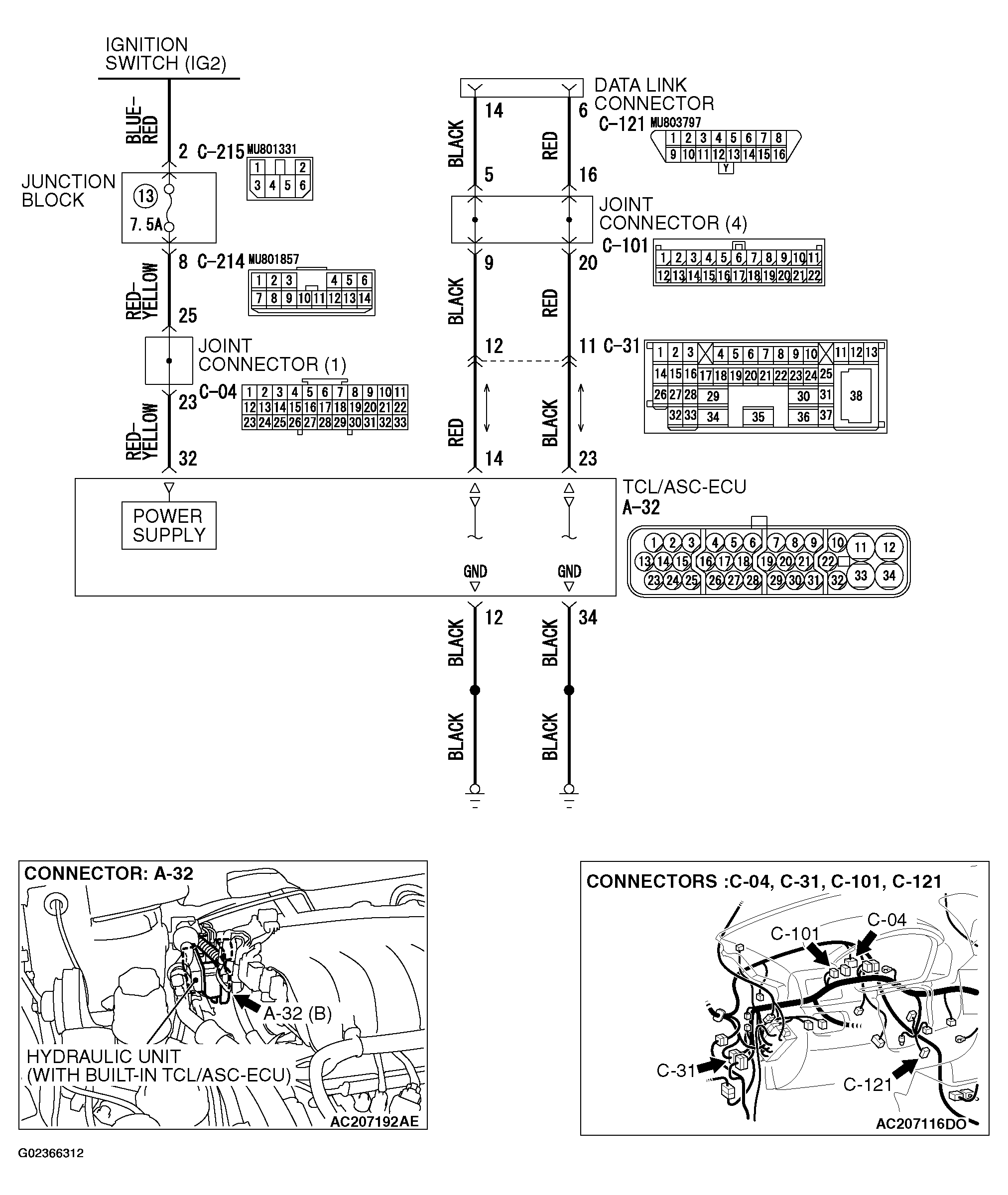

Fig 1: Data Link Connector Circuit Diagram (1 Of 2)
G02366312Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

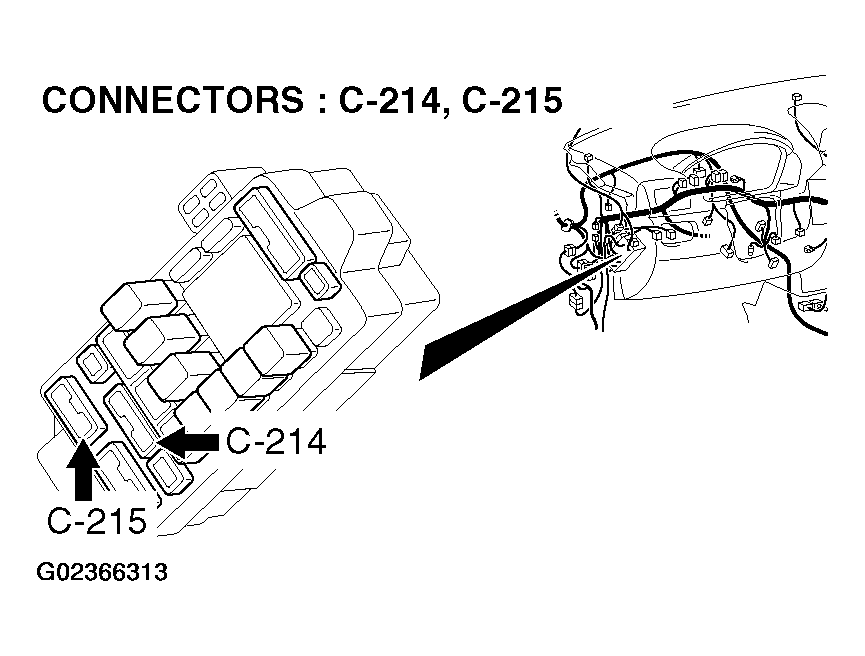

Fig 2: Data Link Connector Circuit Diagram (2 Of 2)
G02366313Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
