DTC15: Auto-cruise Control Switch System: Notes

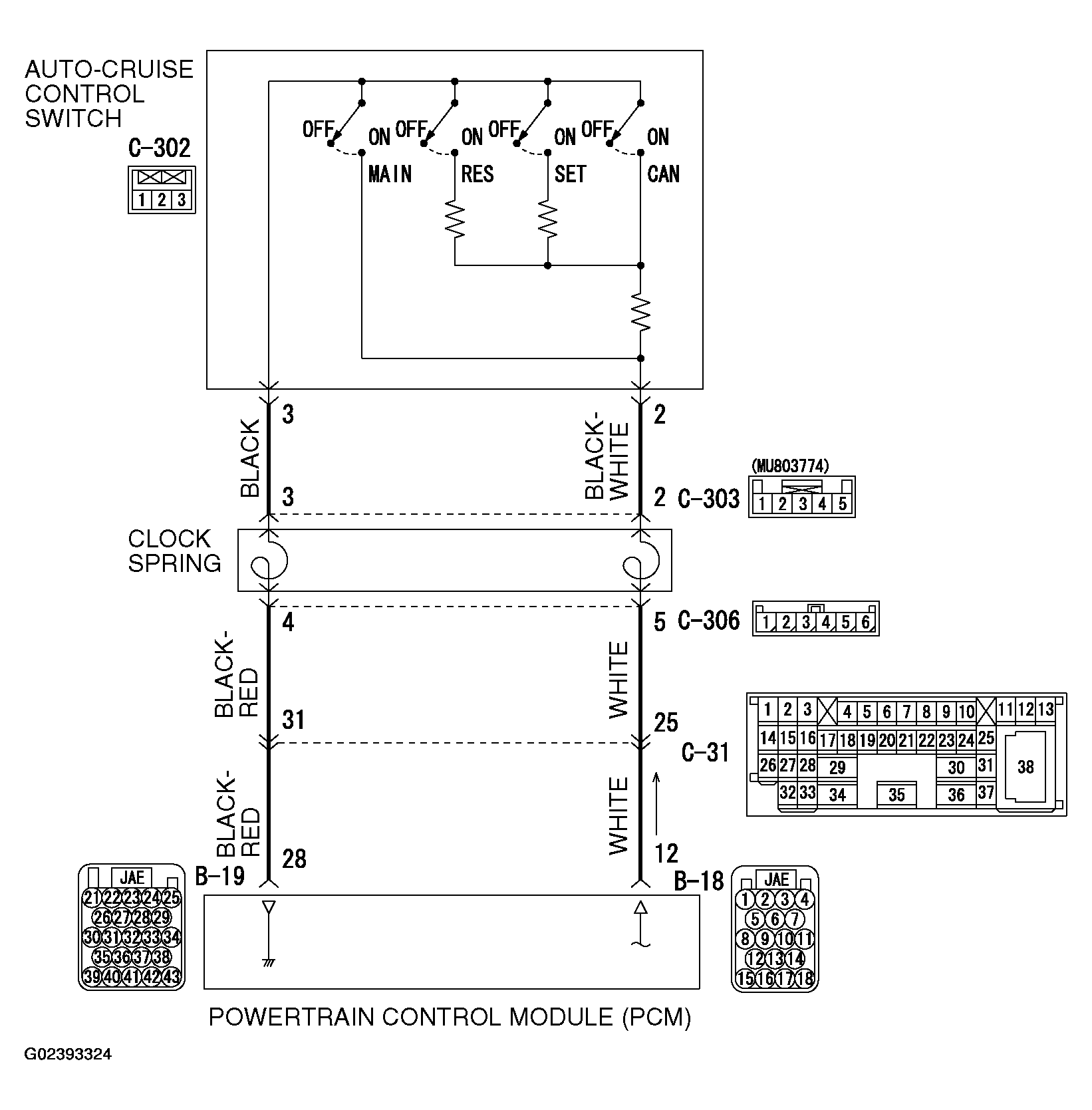

Fig 1: Auto-Cruise Control Switch System Circuit Diagram
G02393324Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

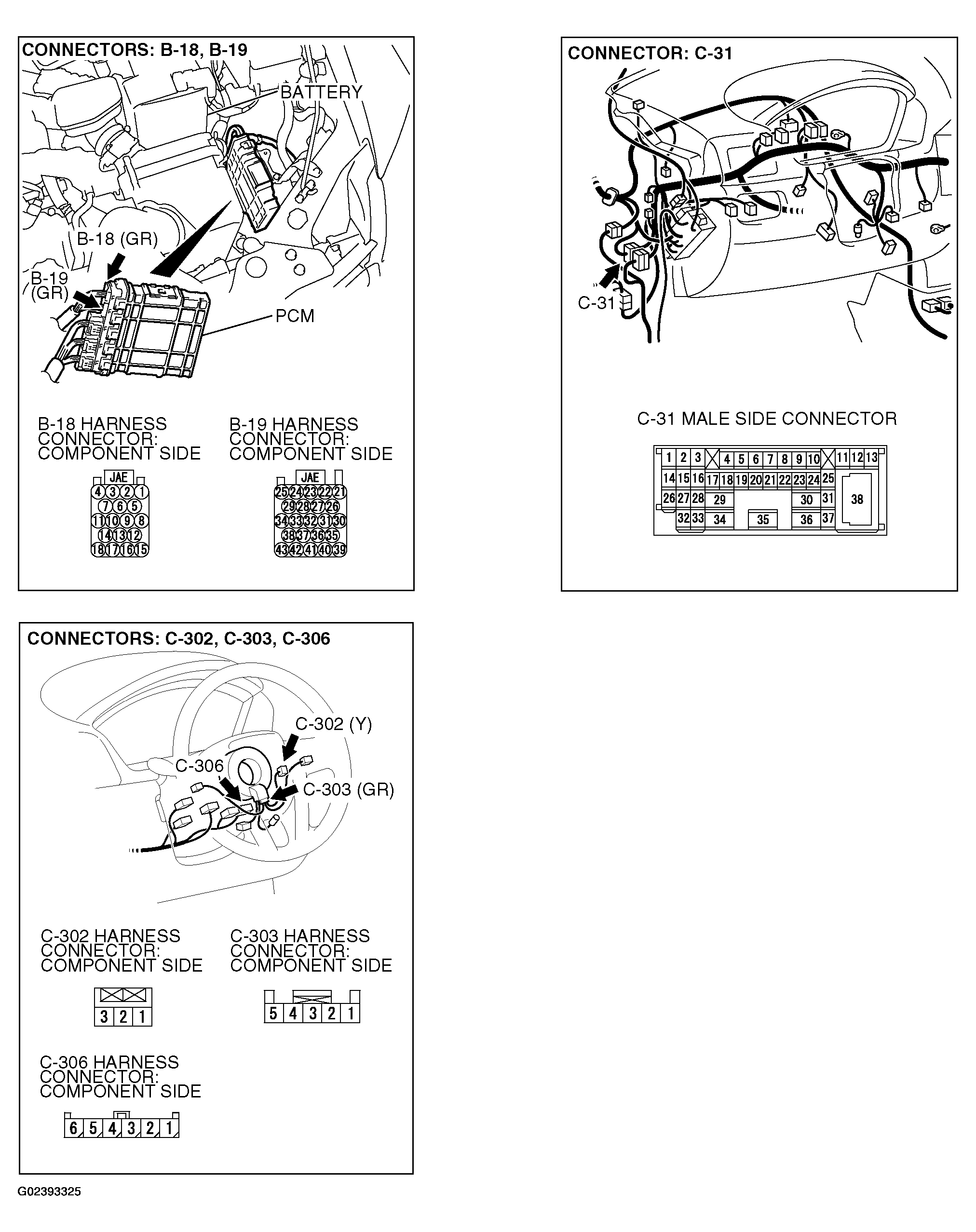

Fig 2: Identifying Connectors
G02393325Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
