Removal and Installation

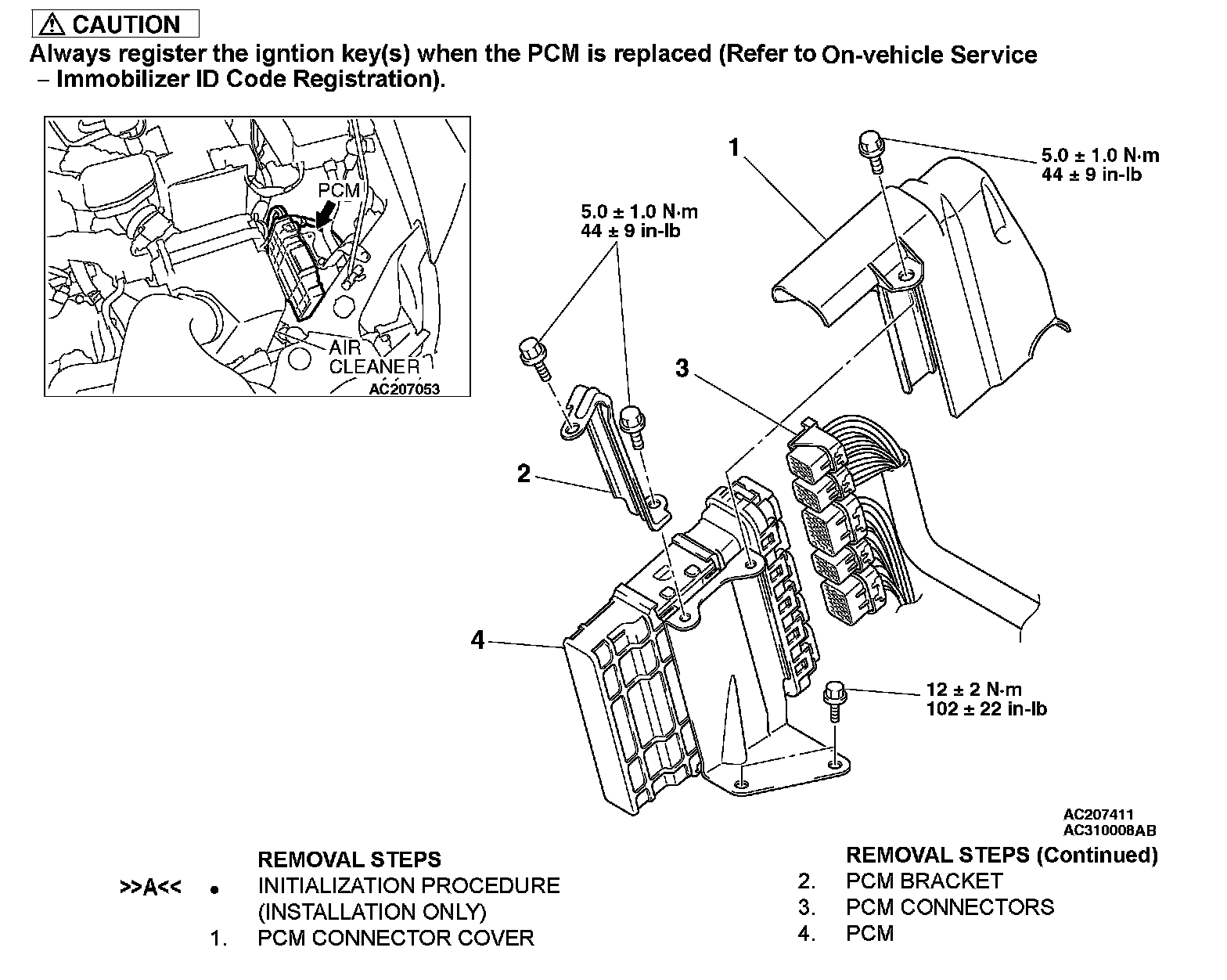

POWERTRAIN CONTROL MODULE (PCM)




REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>>A<< INITIALIZATION PROCEDURE
Turn the ignition switch on then off, and keep it off for at least 10 seconds.
