Auto-Cruise Control Main Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "CRUISE" (MAIN) switch is switched "ON".

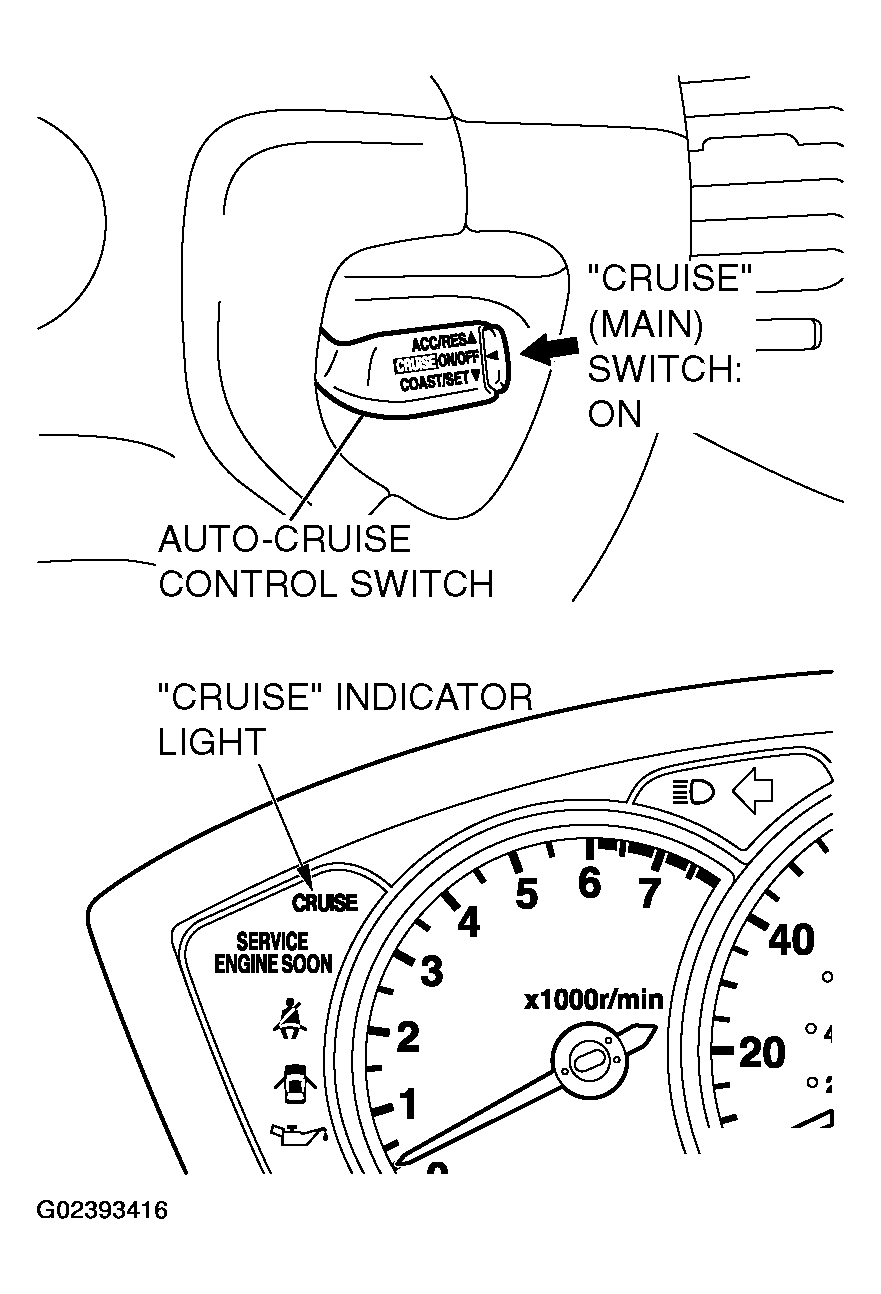

    Fig 1: Identifying CRUISE Indicator Light
    G02393416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
