Fuel Pump Module Replacement

Remove the rear seat cushion assembly. (Refer to REAR SEAT ASSEMBLY .)
Remove the hole cover (LH).

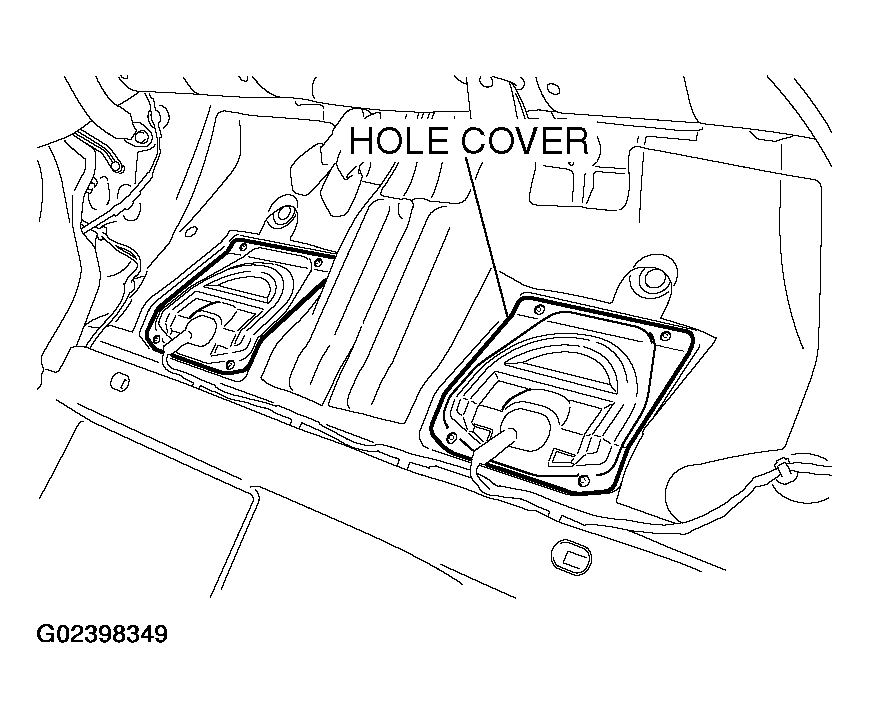

Fig 1: Removing Hole Cover (LH)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Disconnect the fuel pump module connector and fuel high-pressure hose.

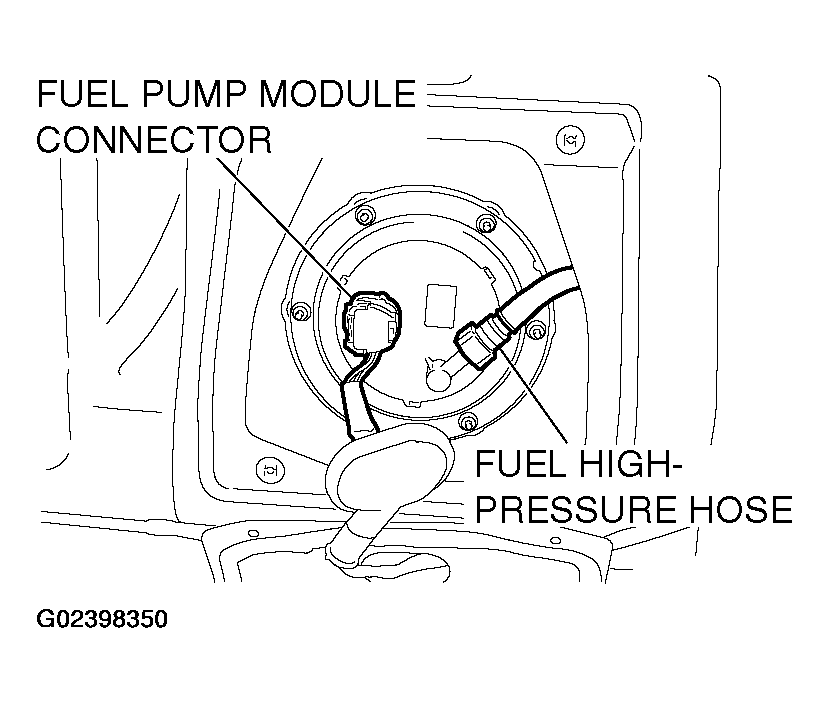

Fig 2: Disconnecting Fuel Pump Module Connector And Fuel High-Pressure Hose
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When withdrawing the fuel pump module from the fuel tank, be careful not to damage the module unit and the float.
Remove the mounting nuts and plate, and remove the fuel pump module from the fuel tank.

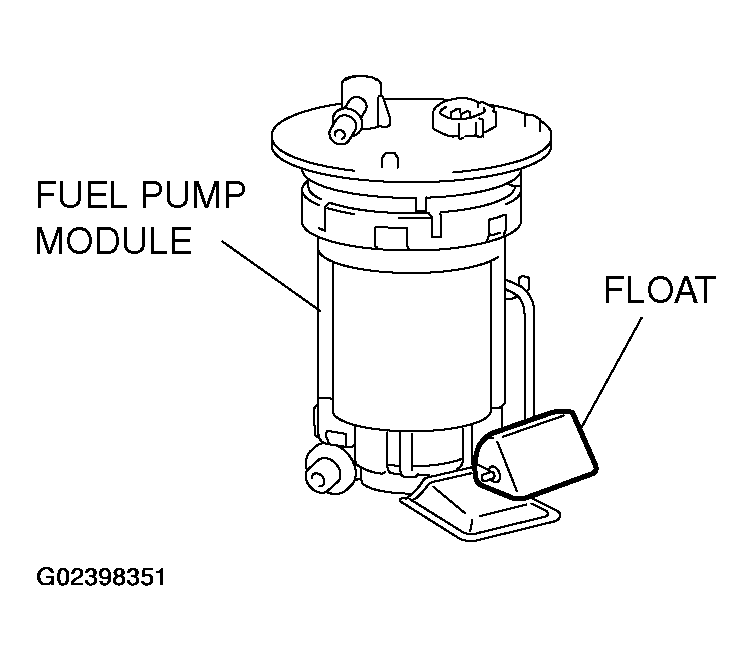

Fig 3: Removing Fuel Pump Module From Fuel Tank
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When installing the fuel pump module into the fuel tank, be careful not to damage the module unit and the float.

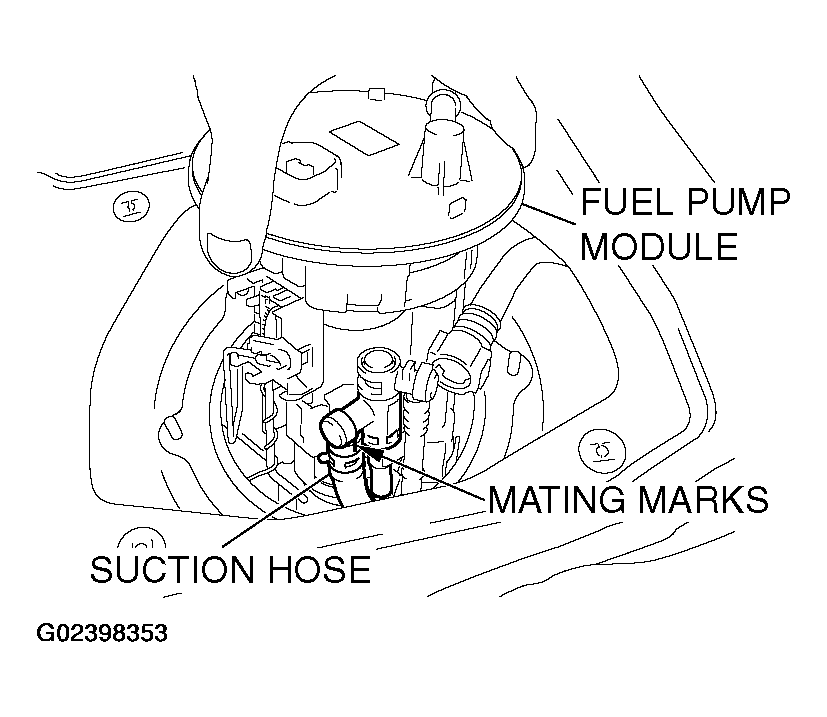

Fig 4: Installing Fuel Pump Module Into Fuel Tank
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect the suction hose to the fuel pump module, and install the fuel pump module to the fuel tank whist ensuring that the suction hose is not kinked.
Install the plate to the fuel tank.

Fig 5: Installing Plate To Fuel Tank
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect the fuel pump module connector and fuel high-pressure hose.

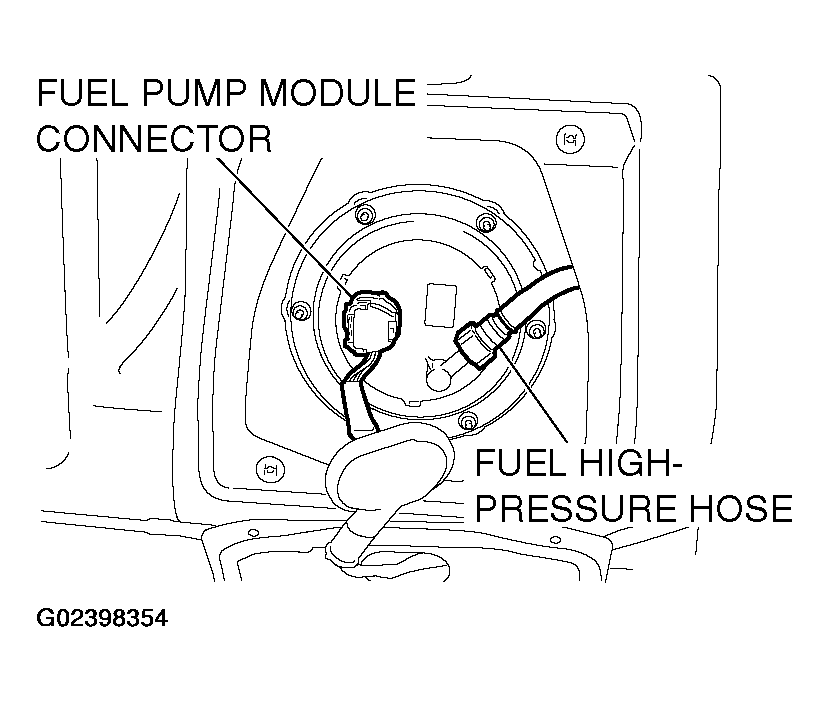

Fig 6: Connecting Fuel Pump Module Connector And Fuel High-Pressure Hose
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the hole cover (LH).
1. Tightening torque: 1.5 +/- 0.5 N.m (14+/- 4 in-lb)
Install the rear seat cushion assembly. (Refer to REAR SEAT ASSEMBLY .)

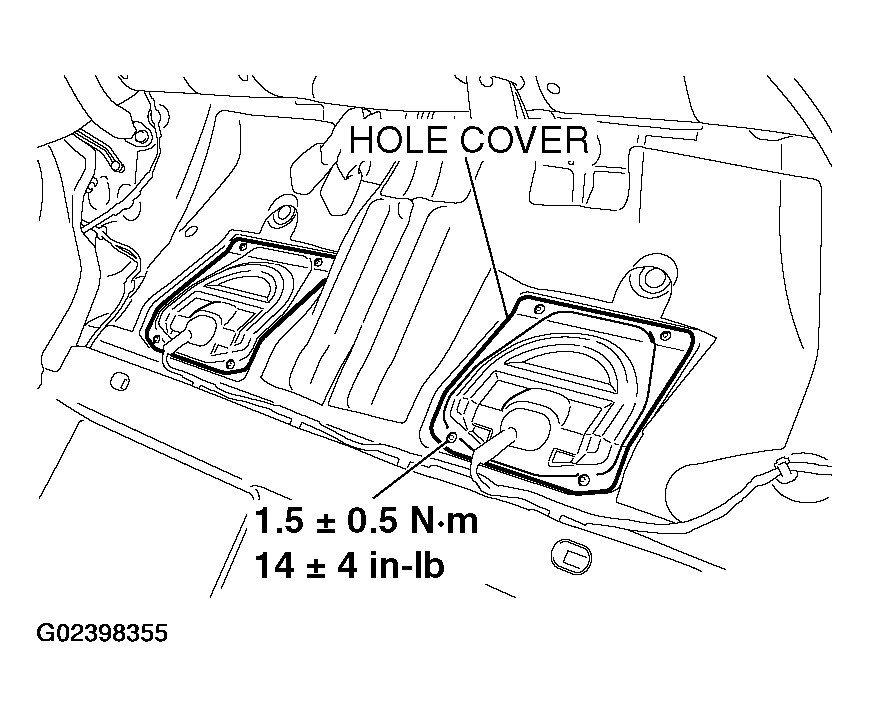

Fig 7: Installing Hole Cover (LH)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
