INSPECTION PROCEDURE 1: Communication Between Scan Tool And The ABS-ECU Is Not Possible.: Notes

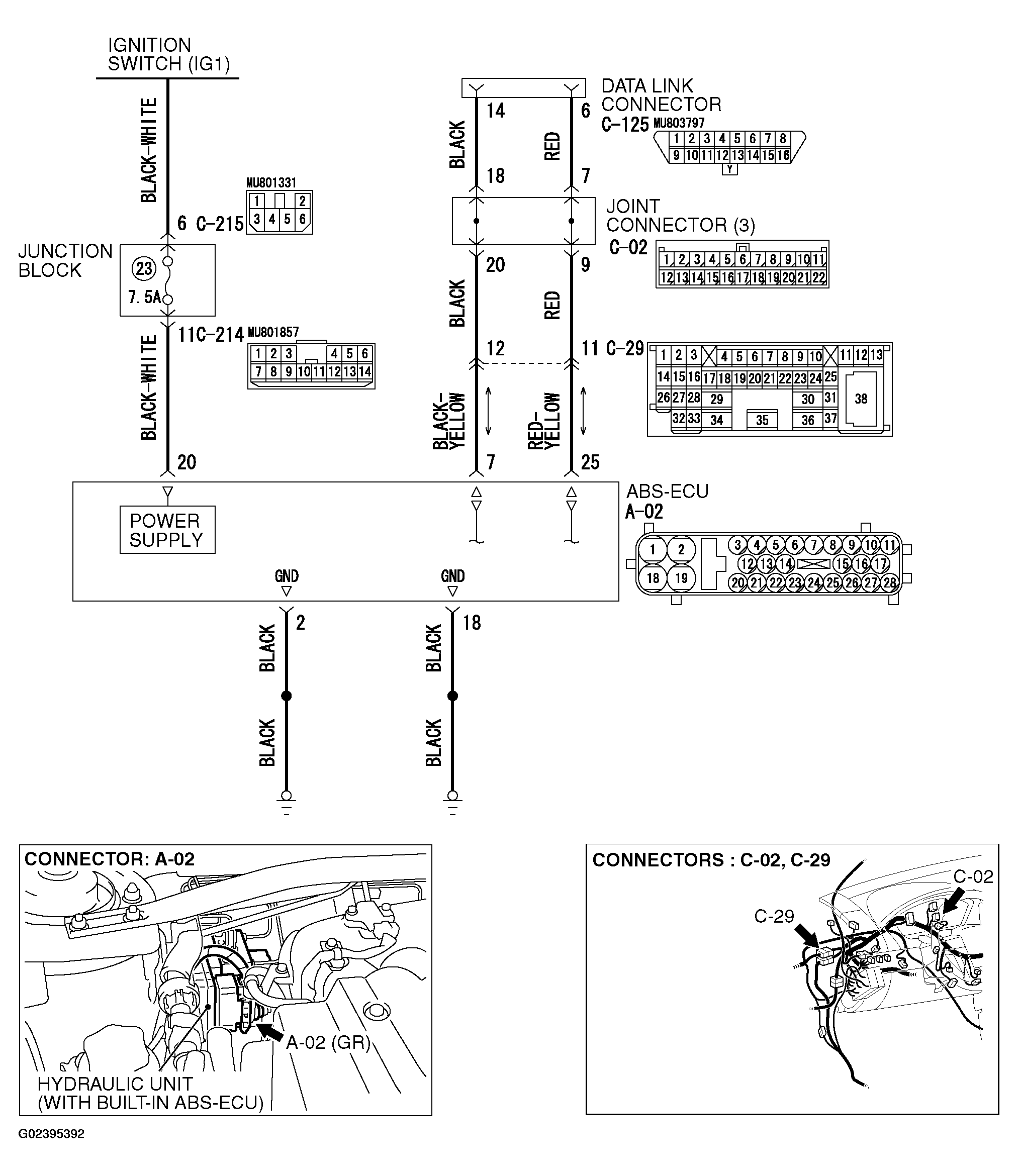

Fig 1: Data Link Connector Circuit Diagram (1 Of 2)
G02395392Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

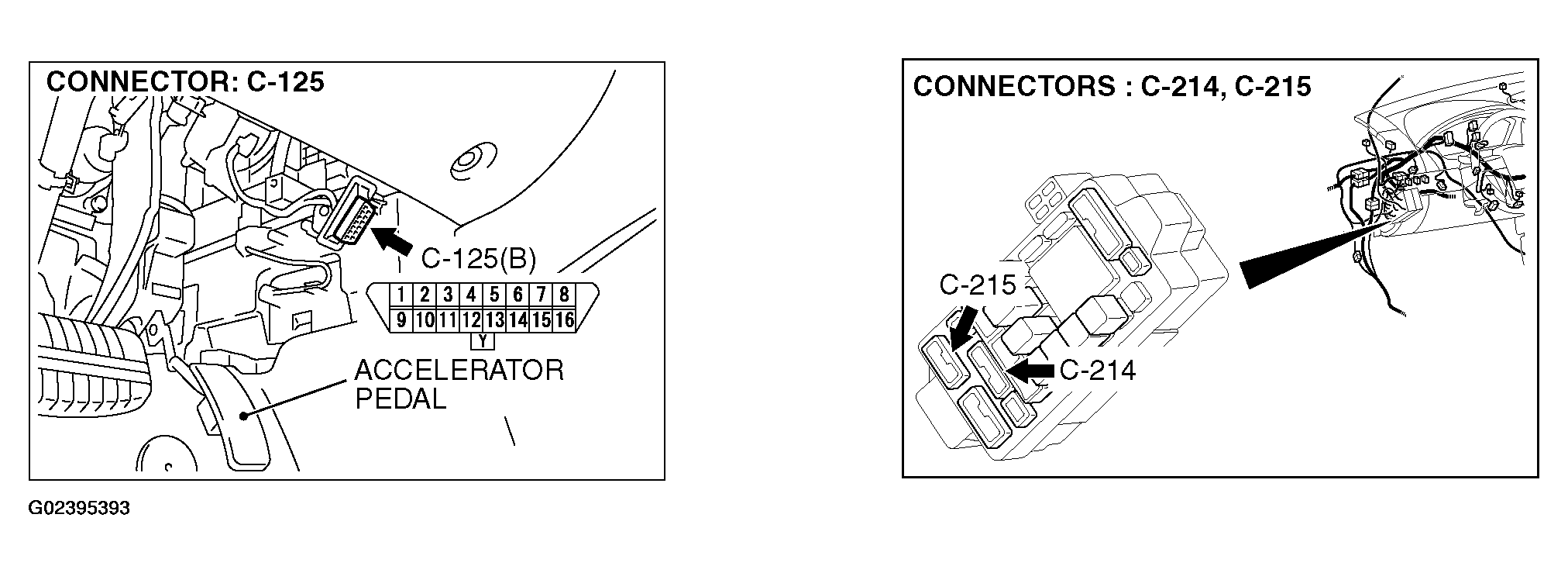

Fig 2: Data Link Connector Circuit Diagram (2 Of 2)
G02395393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
