>> B << Steering Column Dash Panel Cover/CROSSMEMBER Assembly Installation

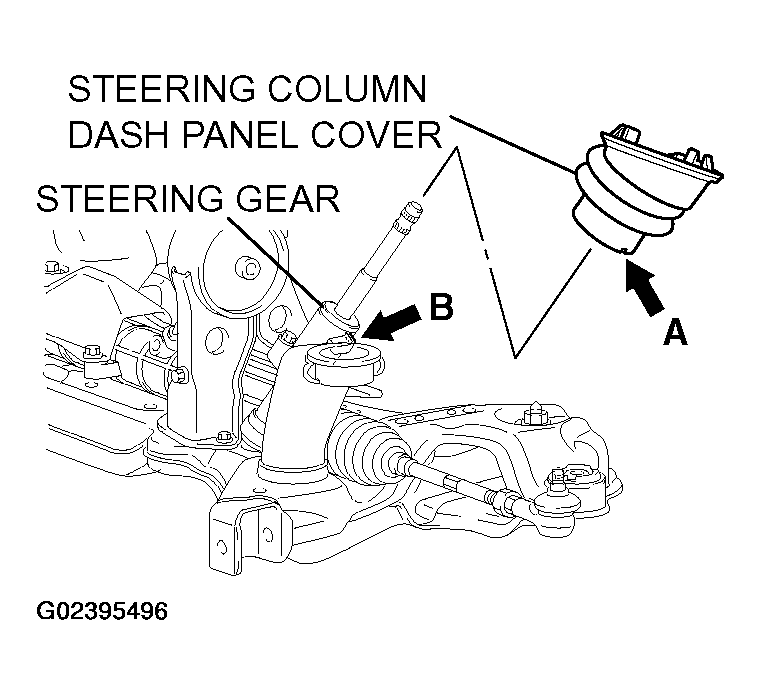

Align the steering column dash panel cover notch (arrow A) with the steering gear lug (arrow B), and then install the steering column dash panel cover to the steering gear.

Fig 1: Aligning Steering Column Dash Panel Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

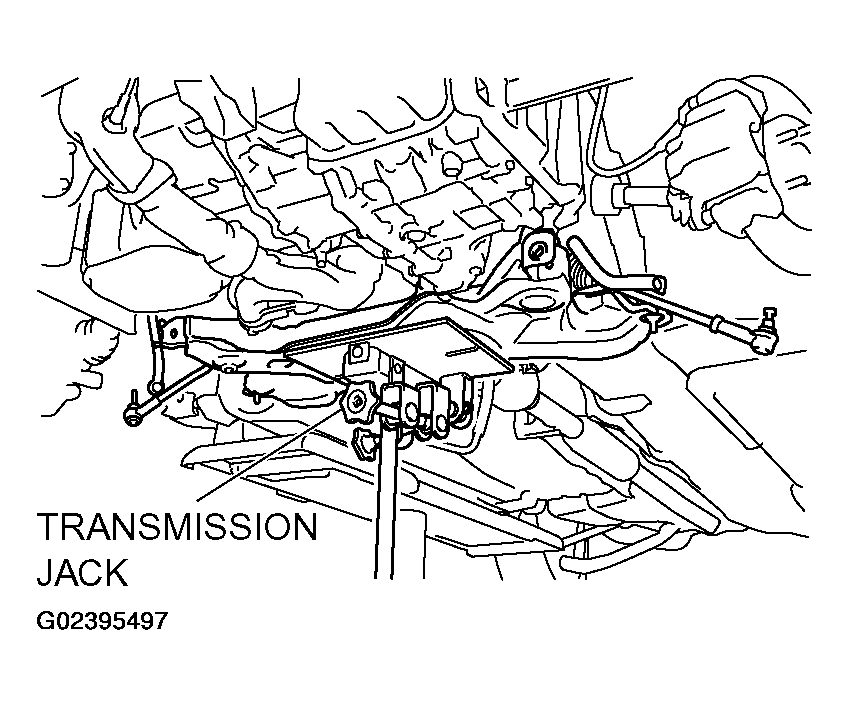

Use a transmission jack to lift the crossmember assembly.

Fig 2: Using Transmission Jack To Lift Crossmember Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

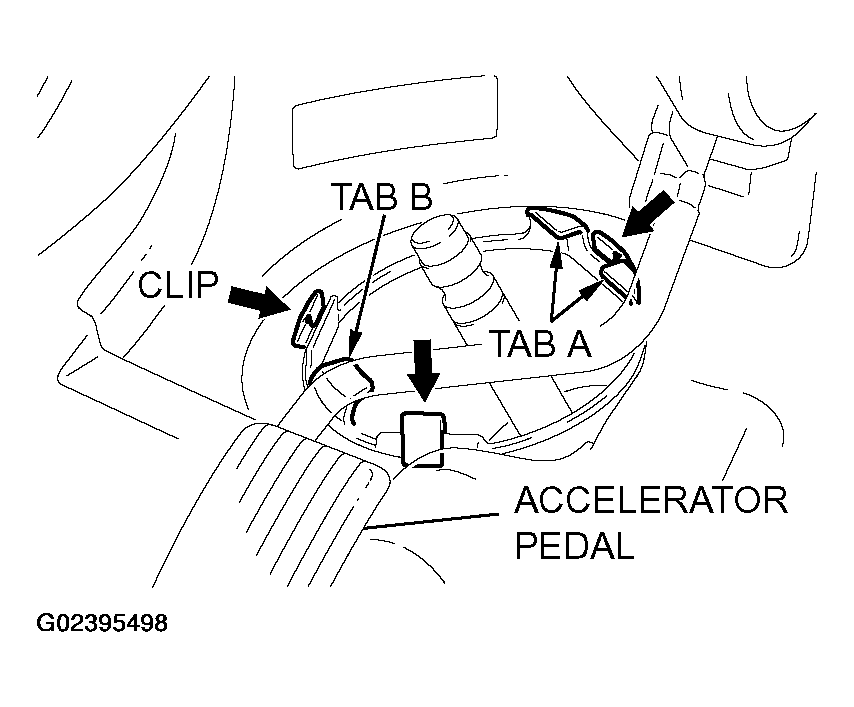

From inside the vehicle, pull tab A and then tab B to secure the three clips to the body panel.

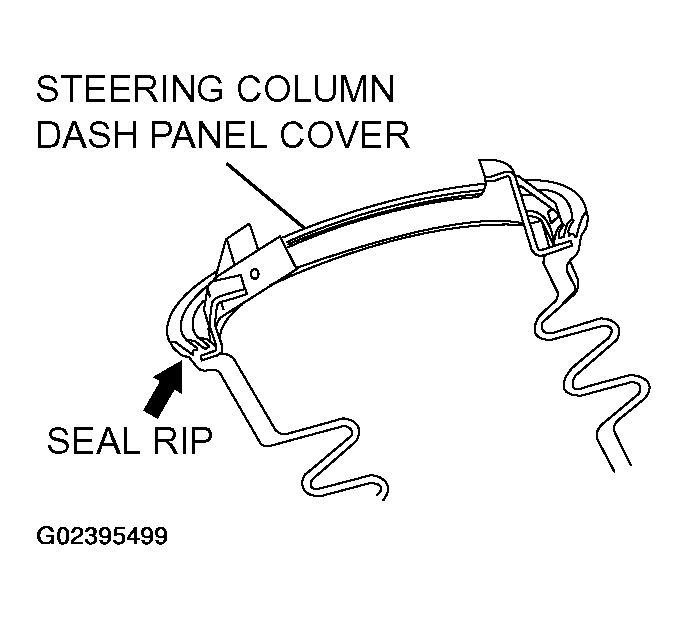

NOTE: When securing the steering column dash panel cover to the body panel, be careful that the seal lip does not move backwards.

Fig 3: Securing Steering Column Dash Panel Cover To Body Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that it has been secured by pressing down the tip of the clips by your finger. Also check that the steering column dash panel cover is installed securely to the steering gear.

Fig 4: Checking Steering Column Dash Panel Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

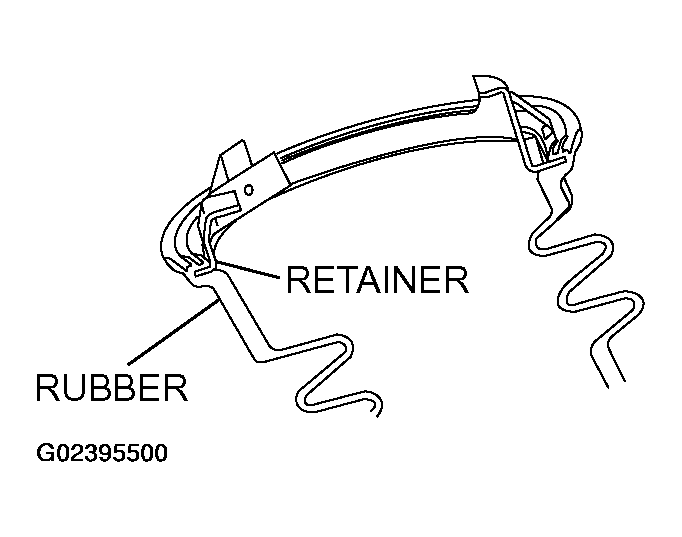

After installing the steering column dash panel cover, check that the steering column dash panel cover rubber is not disengaged from the retainer. If there is any doubt, release the clips from the body, engage the rubber again and reinstall to the body.
Tighten the crossmember mounting nuts and bolts.

Fig 5: Tightening Crossmember Mounting Nuts And Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
