Window Glass Installation
CAUTION:
Do not apply the primer on the adhesive remained as the adhesion may be reduced.

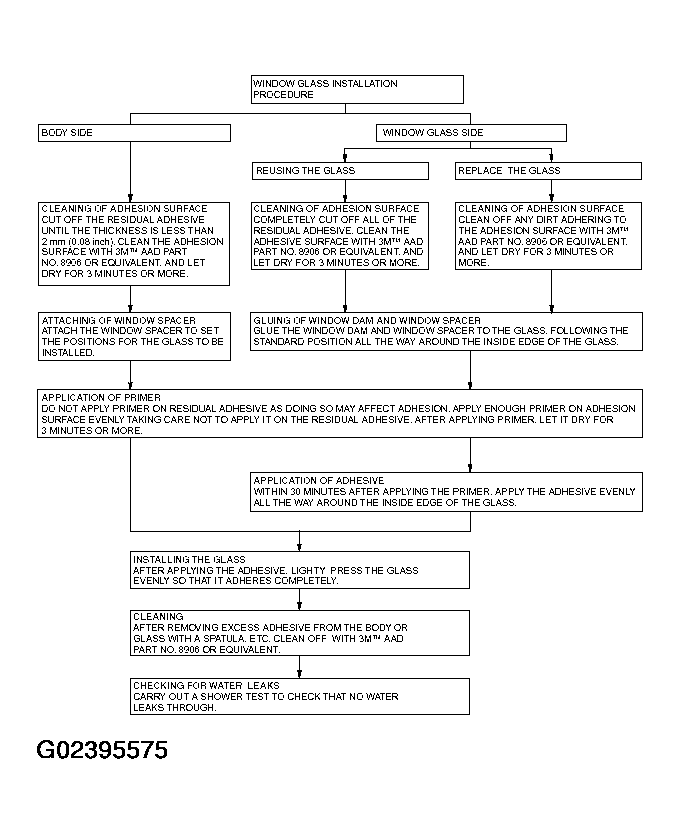

Fig 1: Window Glass Installing Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
