Actuator Test Reference Table

The scan tool activates the following actuators for testing. (Refer to HOW TO PERFORM ACTUATOR TEST ).

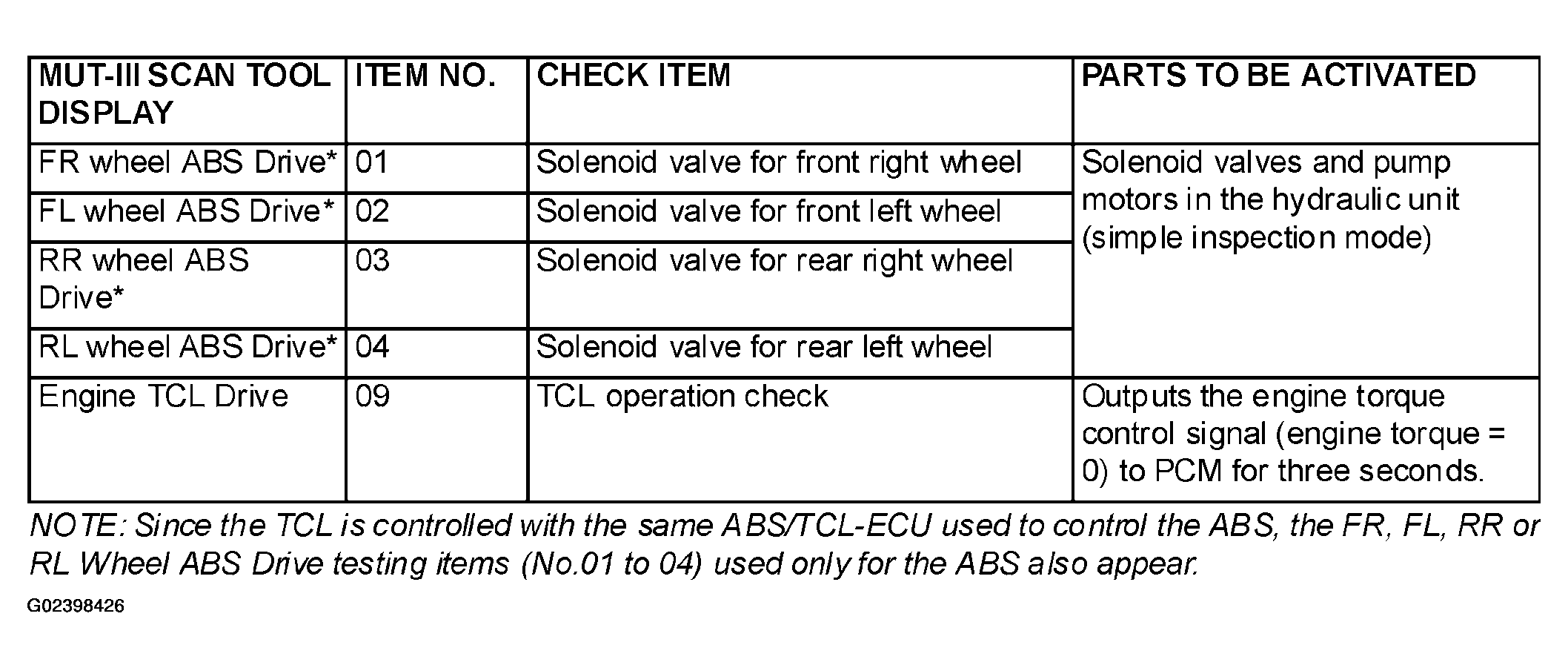

Fig 1: Actuator Test Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Since the TCL is controlled with the same ABS/TCL-ECU used to control the ABS, the FR, FL, RR or RL Wheel ABS Drive testing items (No. 01 to 04) used only for the ABS also appear.
