Data List Reference Table

The following items can be read by the scan tool from the ABS/TCL-ECU input data. (Refer to HOW TO CONNECT THE SCAN TOOL (MUT-III) ).

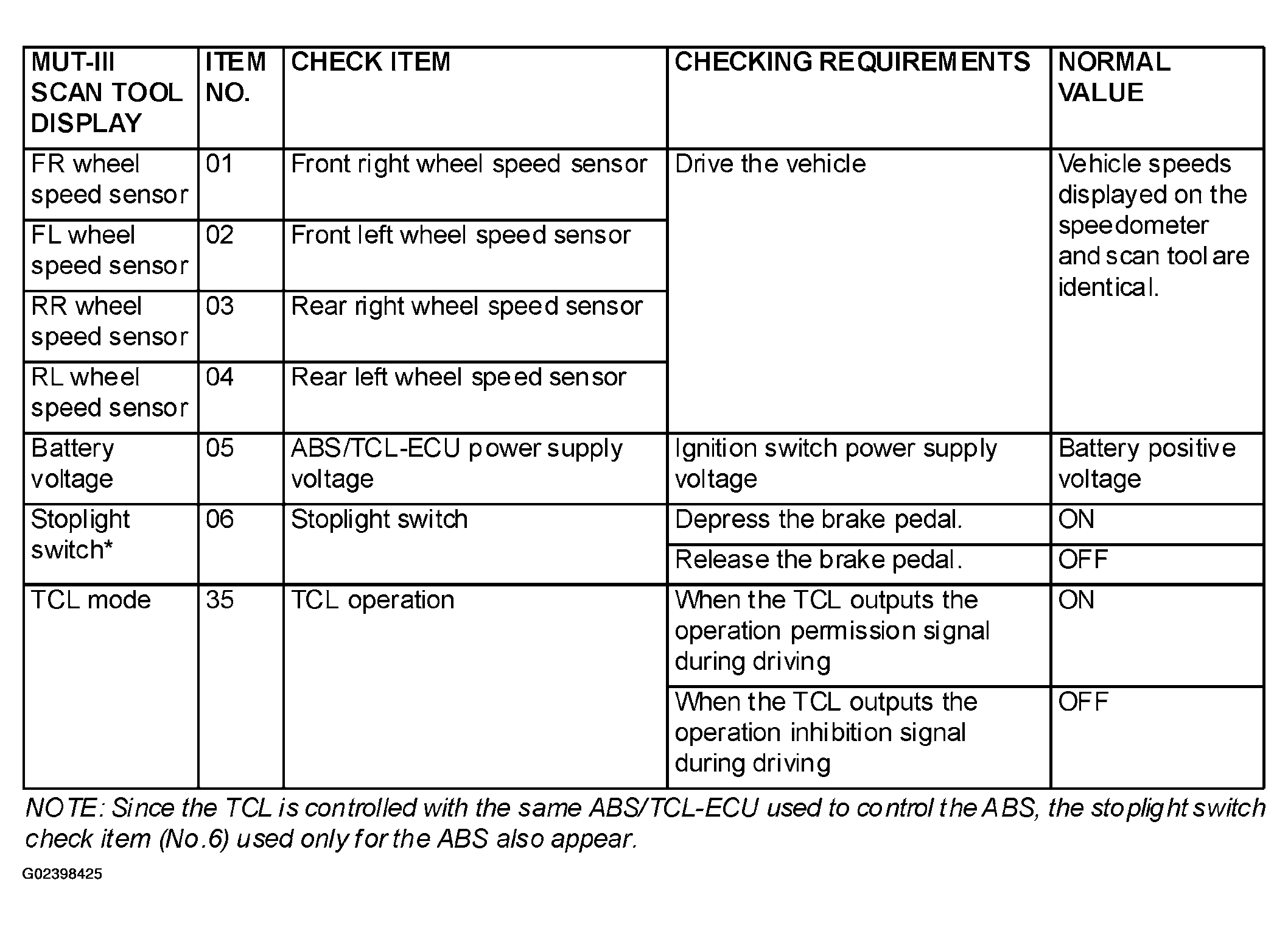

Fig 1: Data List Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Since the TCL is controlled with the same ABS/TCL-ECU used to control the ABS, the stoplight switch check item (No. 6) used only for the ABS also appear.
