DTC 019: ETACS-ECU Time-out: Notes

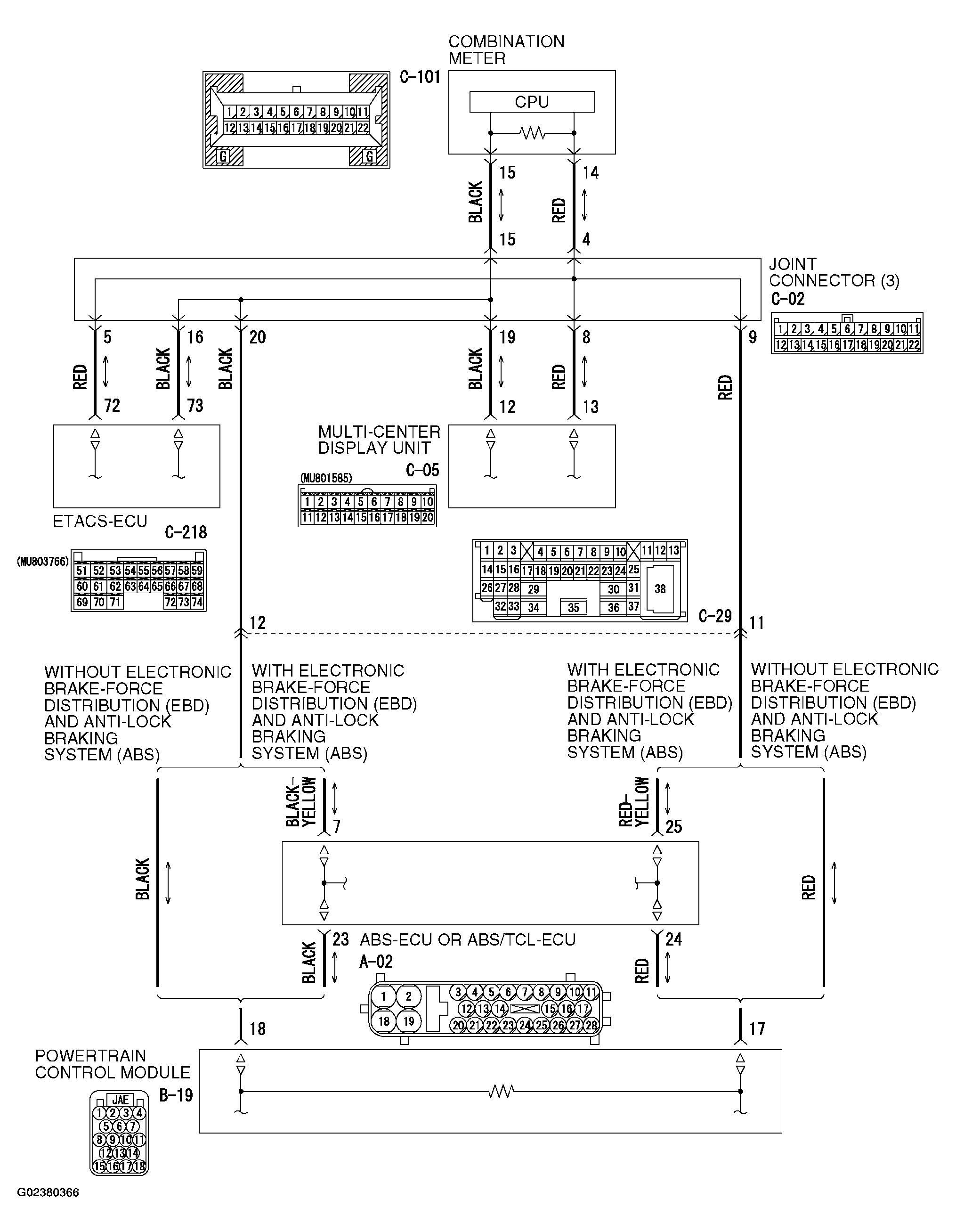

Fig 1: Identifying Time-Out During CAN Communication With ETACS-ECU Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

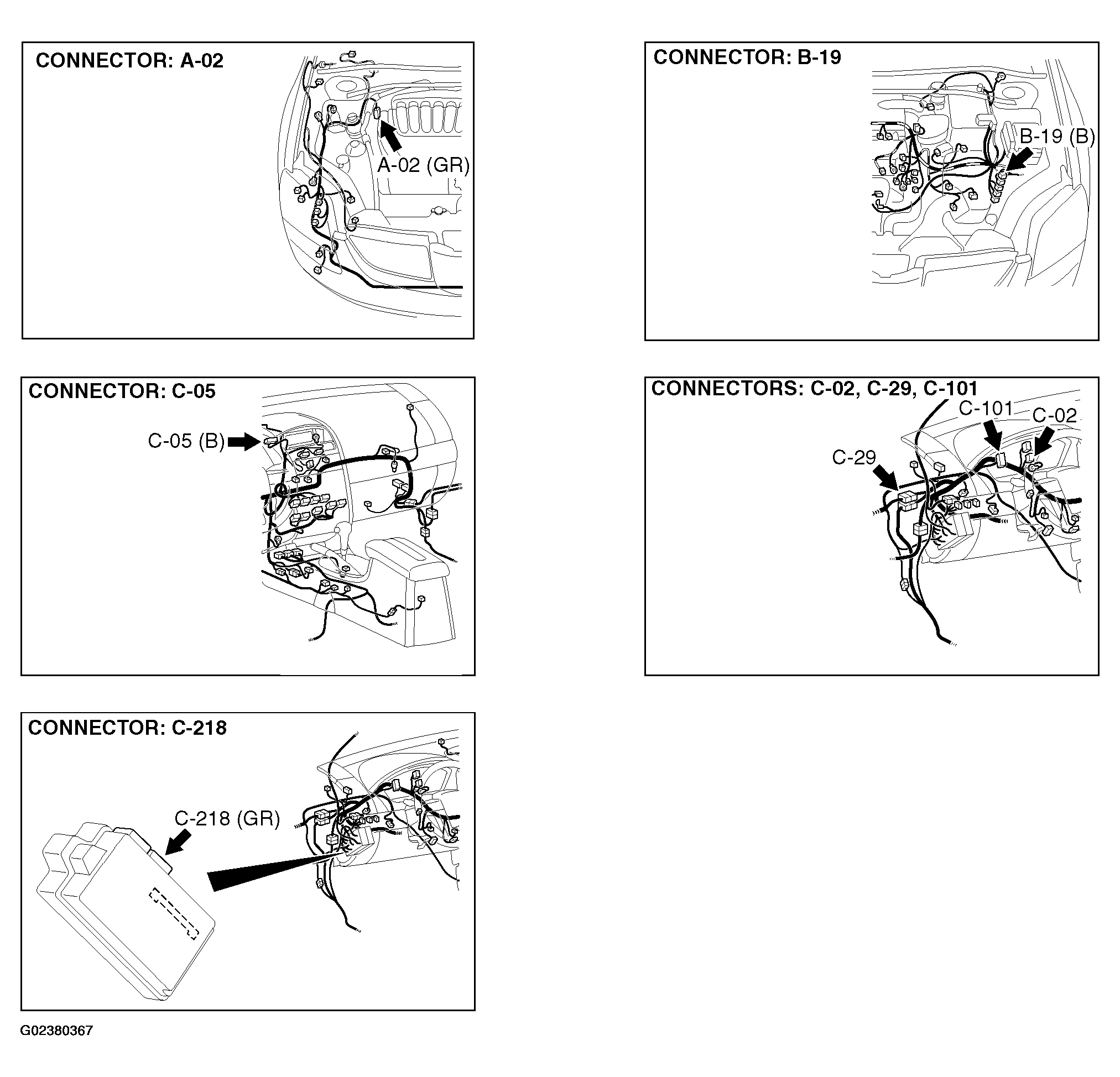

Fig 2: Identifying Time-Out During CAN Communication With ETACS-ECU Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC 019 is set in the ETACS-ECU, diagnose the CAN main bus line.

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
