Removal And Installation < 2.4L Engine >

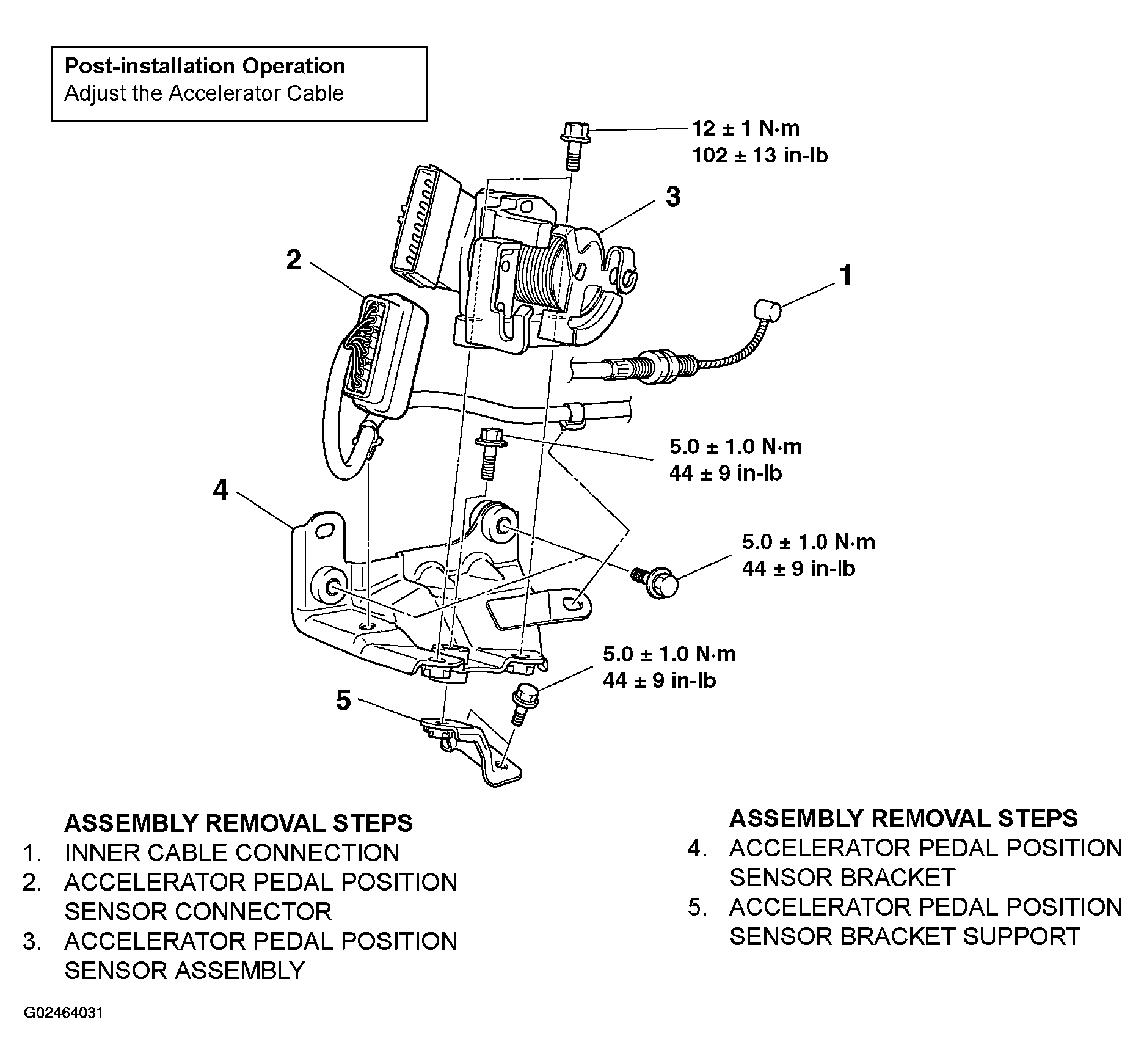

Fig 1: Exploded View Of Accelerator Pedal Position Sensor (2.4L Engine)
G02464031Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
