Removal And Installation < 2.4L Engine >: Notes

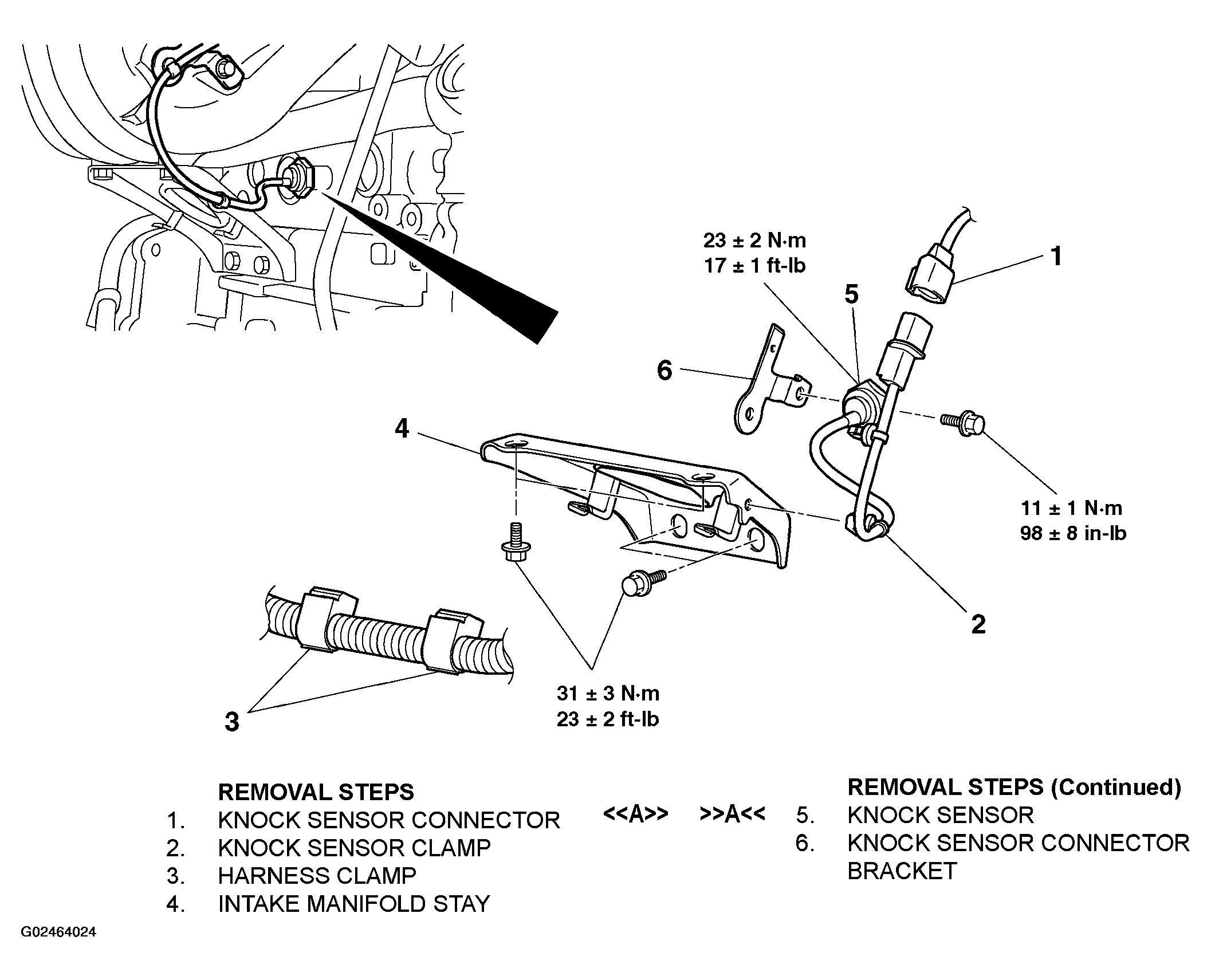

Fig 1: Removal Steps Of Knock Sensor - 2.4L Engine
G02464024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
