Starter Relay Check

WARNING: This page is about a different variant/trim than selected.

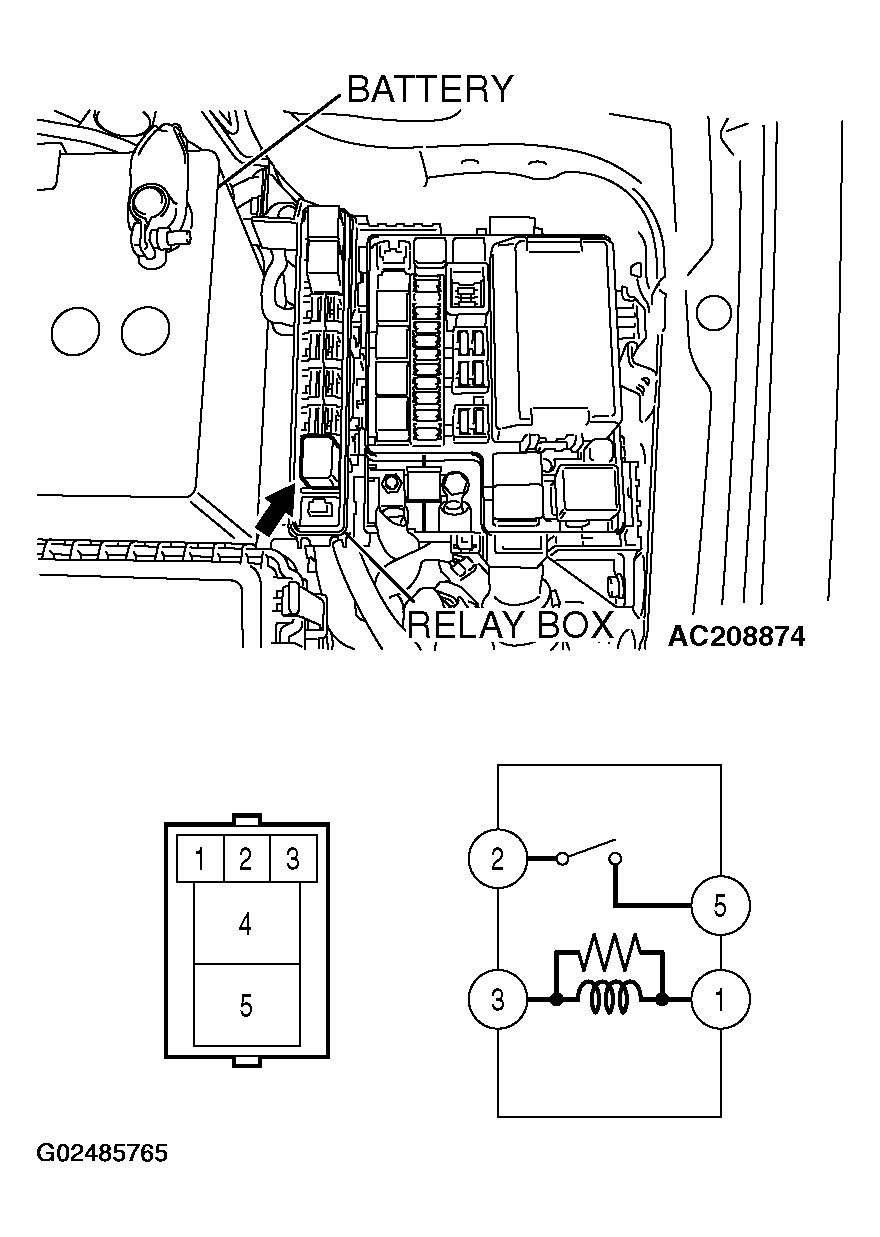

Fig 1: Identifying Starter Relay
G02485764Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Battery Voltage Terminal Number Continuity
G02485765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
