< Air Bag Module (Driver's Side) And Clock Spring >

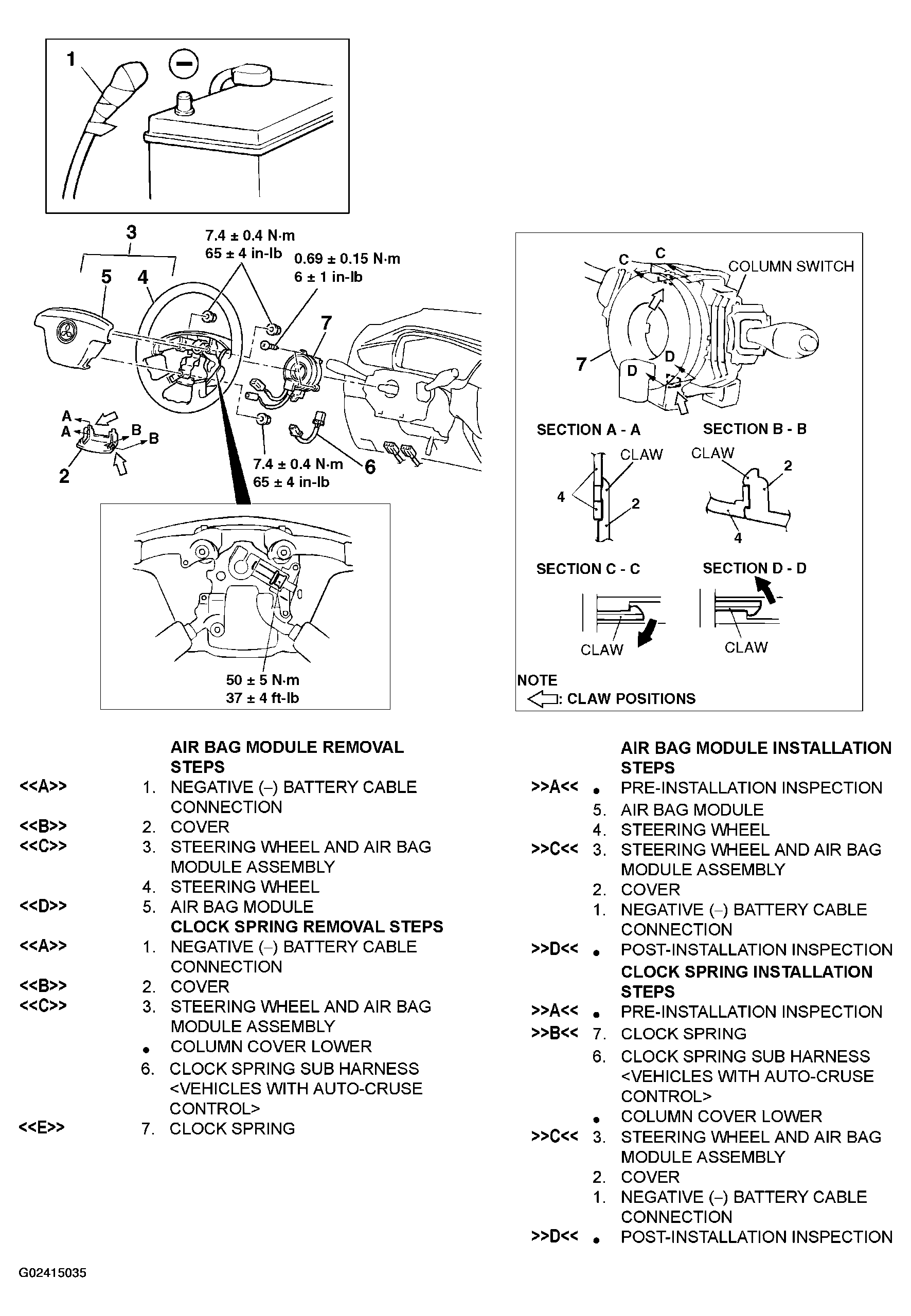

Fig 1: Removing Air Bag Module (Driver'S Side)
G02415035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
