>> D << Post-Installation Inspection

  1. Reconnect the negative (-) battery cable.
  2. Turn the ignition switch to "ON" position.
  3. Does the "SRS" warning light illuminate for approximately seven seconds, and go out?
  4. If yes, the SRS system is functioning properly. If no, refer to SRS WARNING LIGHT CHECK  .

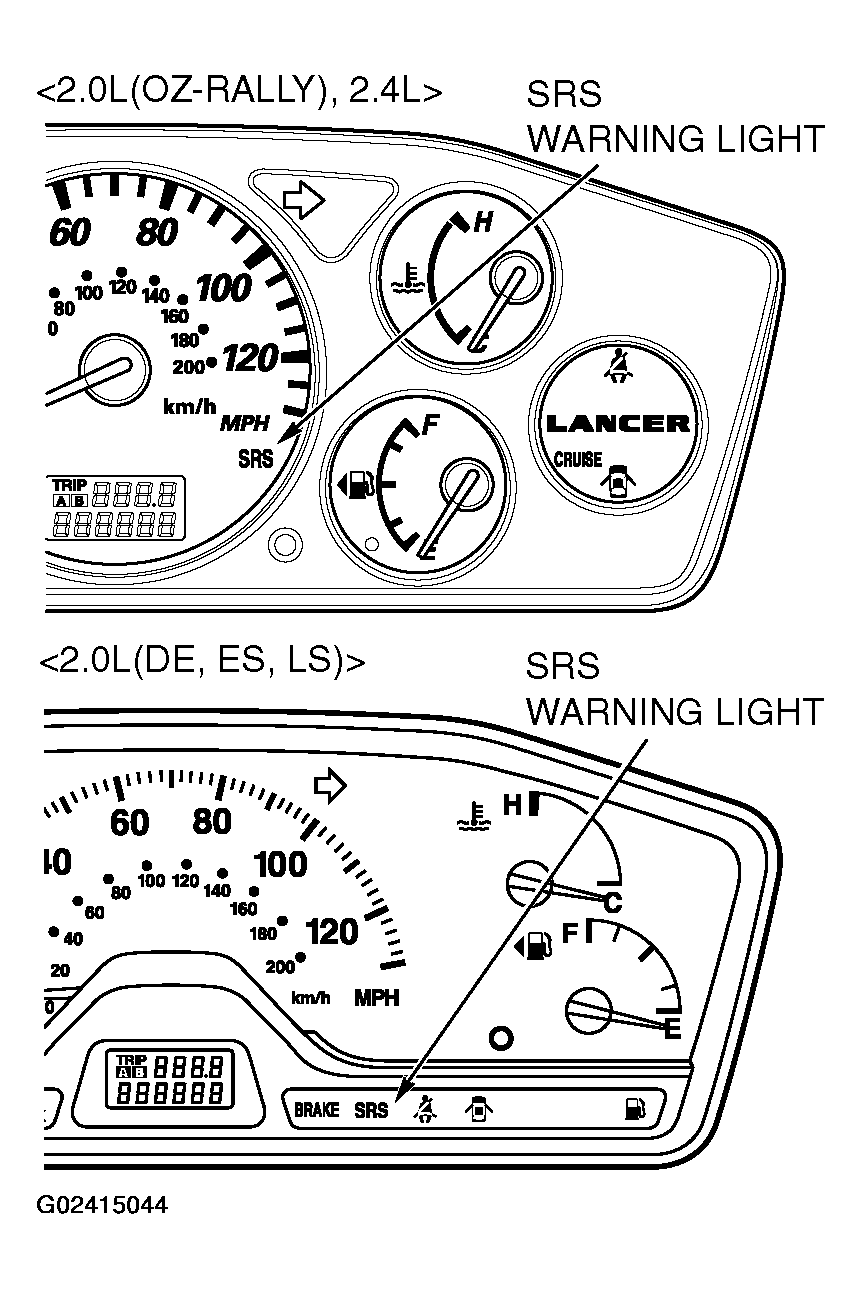

    Fig 1: Identifying SRS Warning Light
    G02415044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
