<< C >> Steering Wheel And Air Bag Module Assembly Removal

  1. By sliding the A section (in the figure) of the air bag module connector in the arrow direction, disconnect the connector.

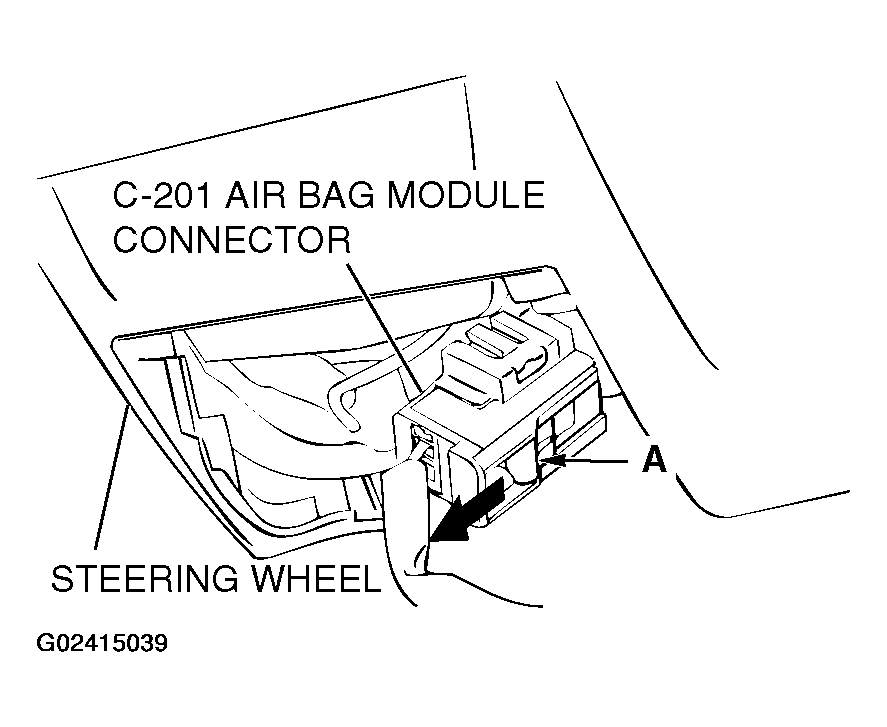

    Fig 1: Disconnecting Air Bag Module C-201 Connector
    G02415039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Insert the hexagonal bit socket into the arrow section in the figure. Completely loosen the bolt, and then remove the steering wheel air bag module assembly.
    NOTE: Use a hexagonal bit socket or a hexagonal wrench having an effective length of 75 mm (0.2 inches) or more in the hexagonal section and the diameter of 8 mm or more.

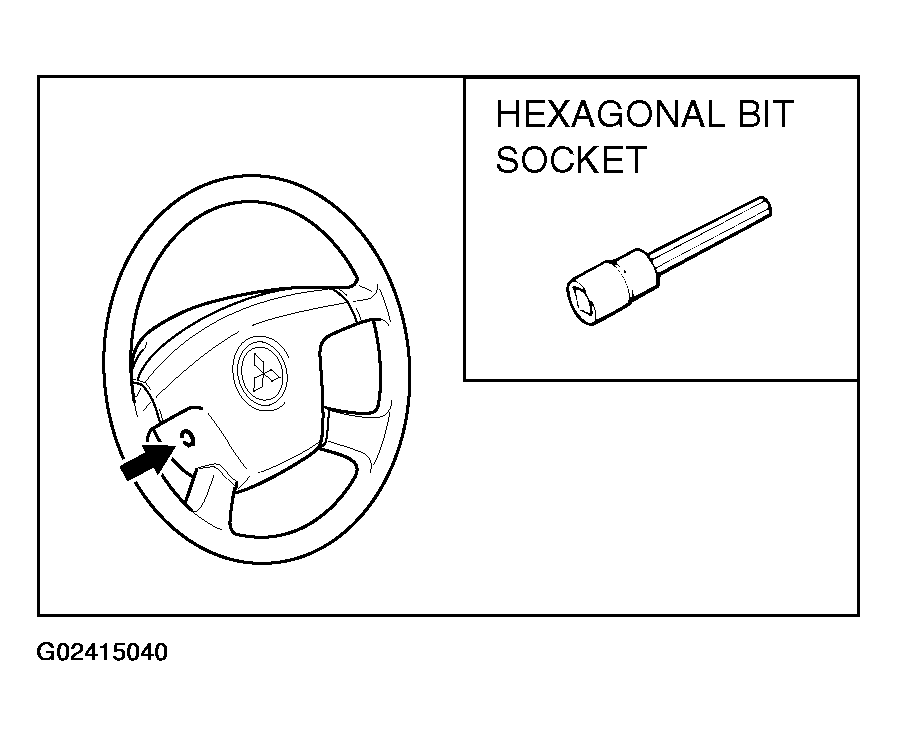

    Fig 2: Identifying Special Tools (Hexagonal Bit Socket)
    G02415040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
