<< F >> Air Bag Module Removal (Front Passenger's Side)

WARNING:

When the passenger's air bag module is removed, do not damage the engagement of the pawls.
The removed passenger's air bag module should be stored in a clean, dry place with facing the deployment surface facing up.

Insert the screwdriver (-) into the position specified in the figure and lift the screwdriver upward to release the pawls engaged, and then remove the passenger's air bag module.

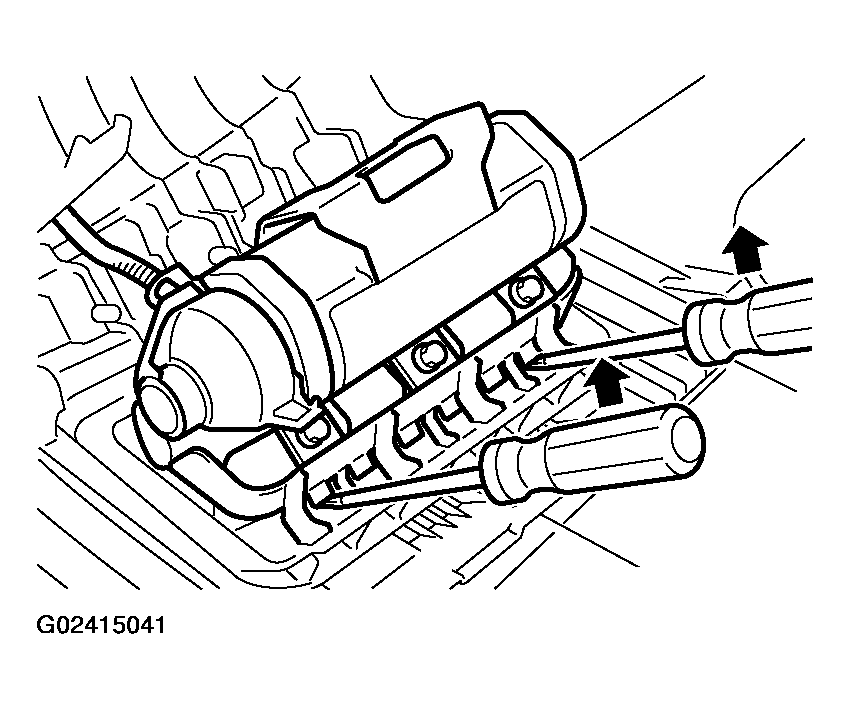

Fig 1: Removing Passenger'S Air Bag Module Inserting Screwdriver

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
