Circuit Diagram

WARNING:
  • Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on P.52B-16): replace the wiring if necessary, after reading and following all precautions and procedures in this manual.
  • Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS  ) and a digital multi-meter (refer to TEST EQUIPMENT  .)

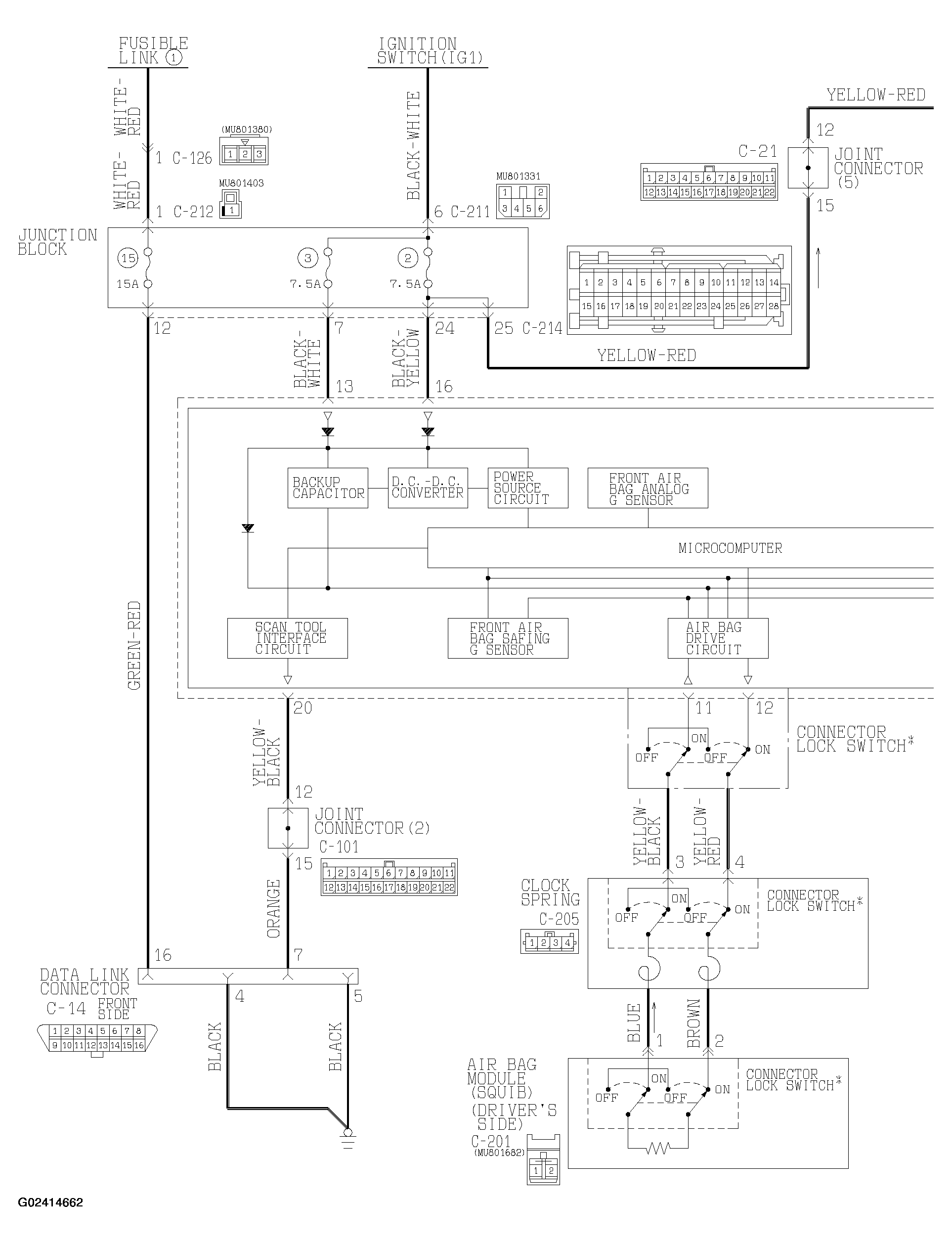

Fig 1: SRS - Warning Diagram (1 Of 3)
G02414662Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

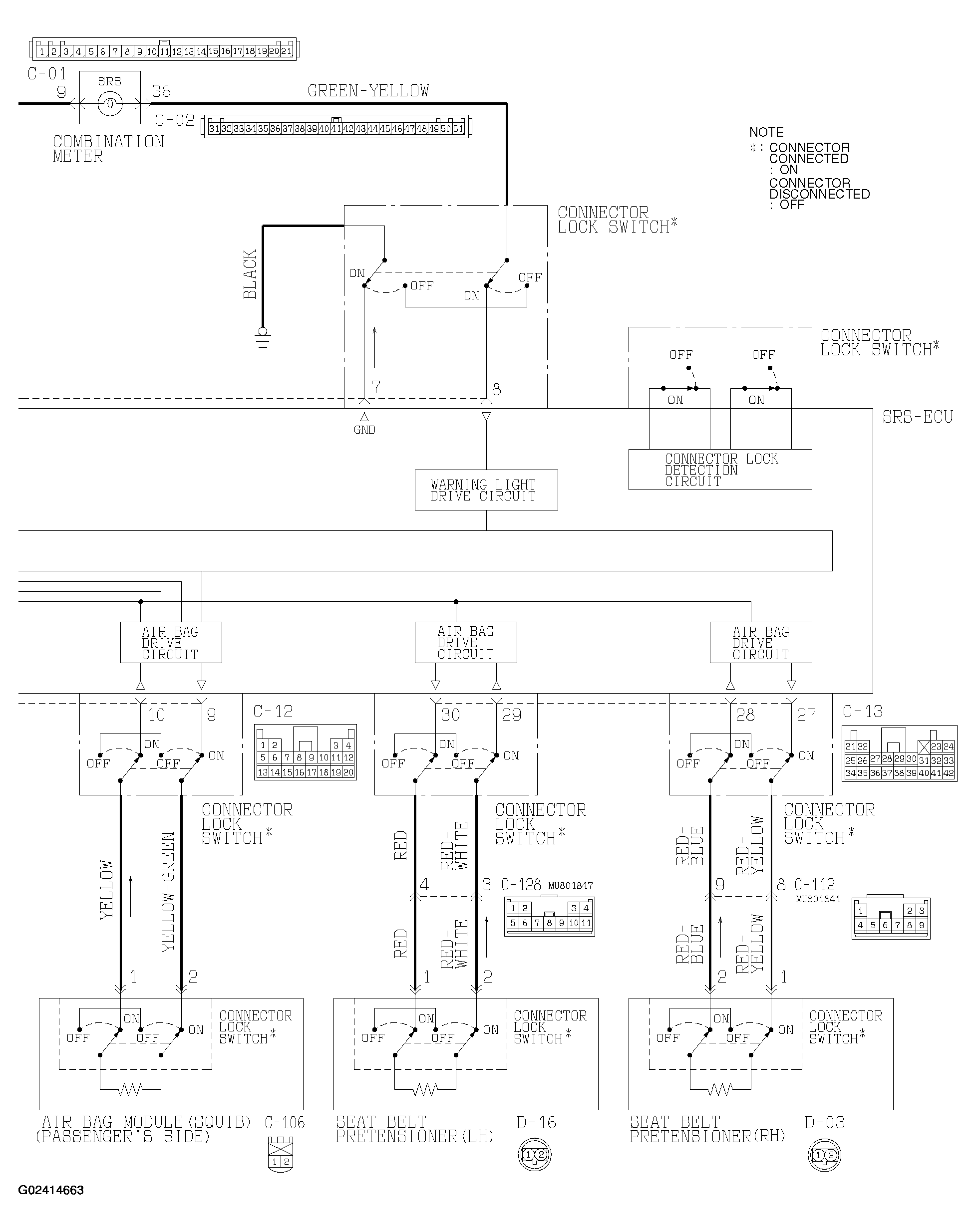

Fig 2: SRS - Warning Diagram (2 Of 3)
G02414663Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

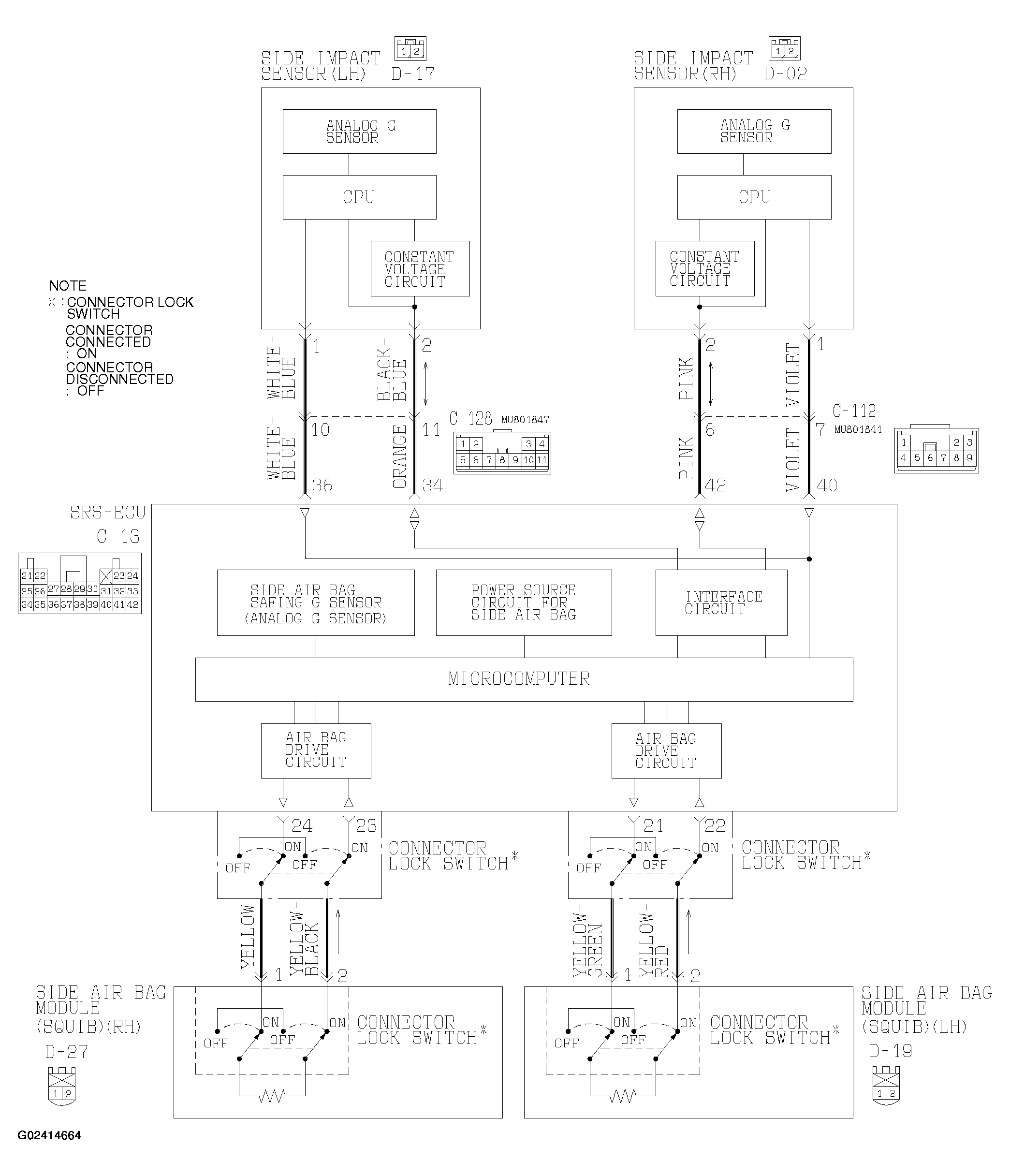

Fig 3: SRS - Warning Diagram (3 Of 3)
G02414664Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
