Component Location

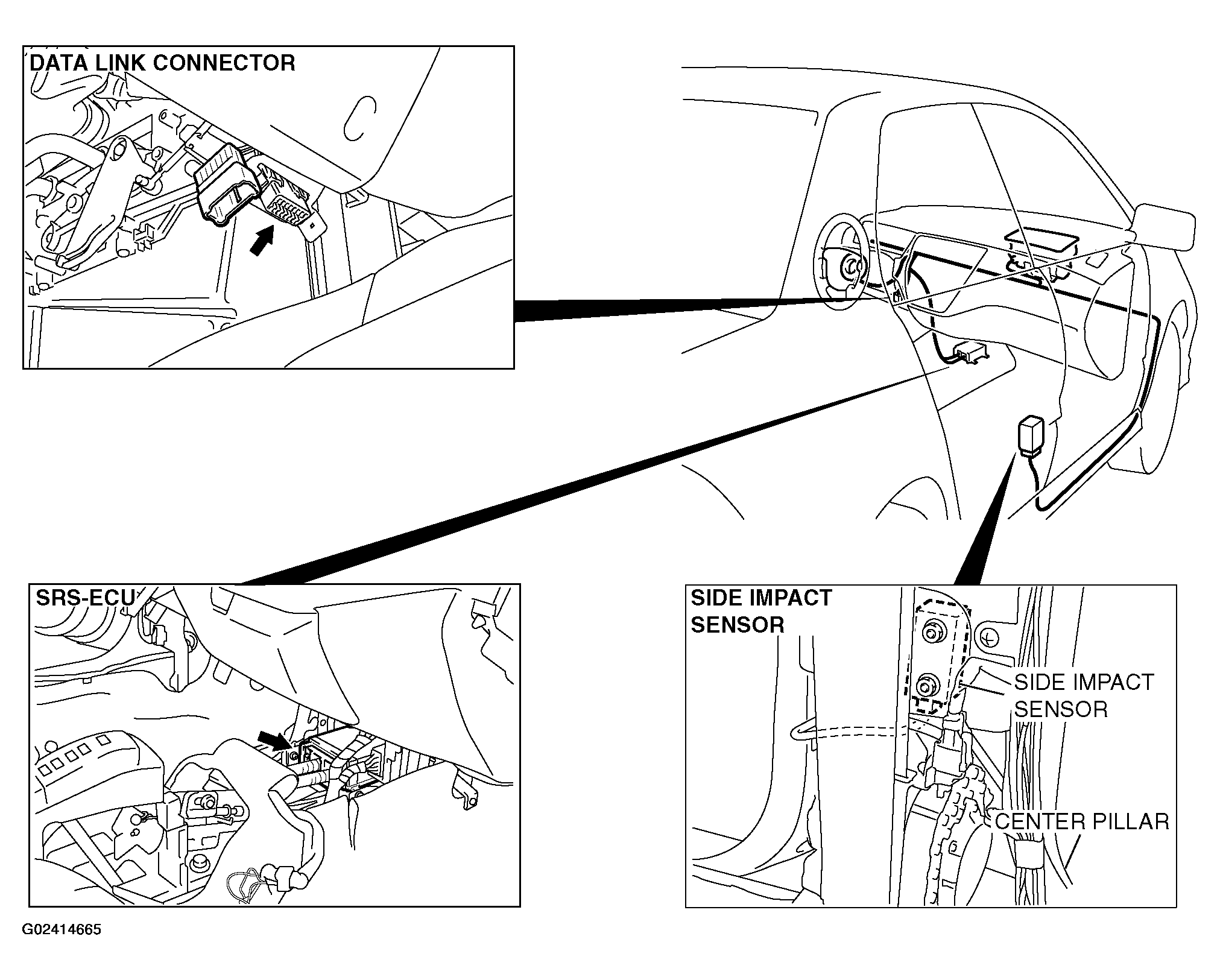

Fig 1: Identifying Data Link Connector Component Location
G02414665Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the side impact sensor (RH). The position of the side impact sensor (LH) is symmetrical to this.
